Piston Diameter

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Check

NOTE: Refer to the appropriate SPECIFICATIONS .
  1. Measure the piston diameter 90 degrees from the piston pin and 38 mm (1.50 in) down from the top of the piston at the point indicated.

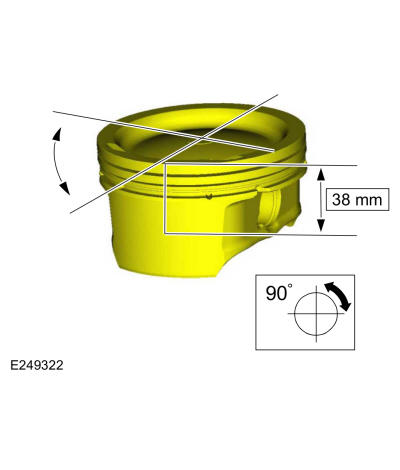

GFD344390Courtesy of FORD MOTOR COMPANY
