VC Codes

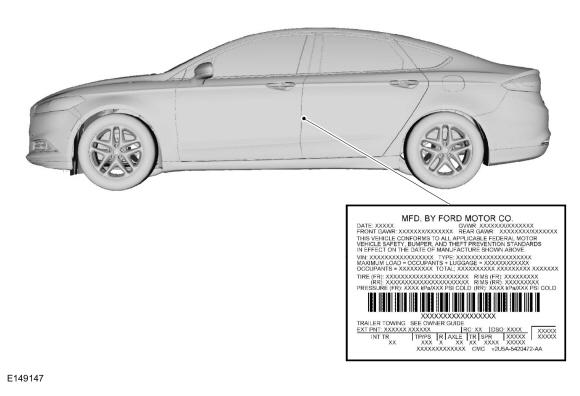

VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

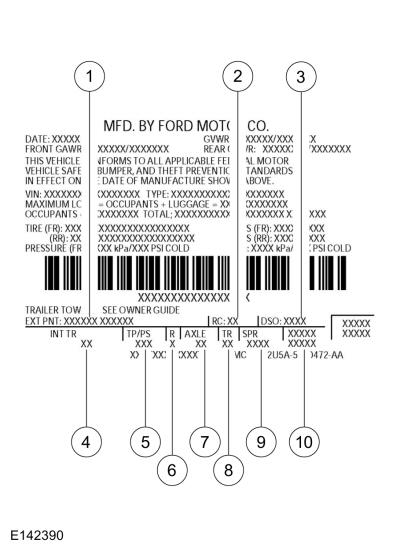

VC Label
| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | Domestic special order code |
| 4 | Interior trim code |
| 5 | Tape/paint stripe code |
| 6 | Radio code |
| 7 | Axle code |
| 8 | Transmission code |
| 9 | Spring code |
| 10 | Powertrain calibration information |
Paint Code
Paint codes are listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- G1 - Shadow Black
- GN - White Gold
- J7 - Magnetic
- N6 - Blue Lightening
- R3 - Burgundy Velvet (tinted clear-coat)
- RR - Ruby Red (tinted clear-coat)
- UG - White Platinum (tri-coat)
- UX - Ingot Silver Metallic
- YZ - Oxford White
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
- B - Salerno leather
- C - Salerno leather #2
- D - Axis cloth
- K - Micro-perforated leather
- M - Axis vinyl
- P - Salerno with MIKO leather
- Q - Luxury leather #3
Interior Trim Color Codes
- C - Cocoa
- E - Ebony/Medium Light Stone
- M - Medium Soft Ceramic
- Q - Medium Light Stone
- S - Dark Earth Gray
- T - Ebony
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- B - AM/ FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System)
- F - AM/ FM stereo, CD player
- M - AM/ FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System), HD (high-definition)
Transmission Codes
Available transmissions are as follows:
- C - 6-speed automatic (6F55)
- J - eCVT (electronic constant variable transmission), Powersplit automatic
- W - 6-speed automatic (6F)
Spring Codes
Spring codes are listed as a 2-part code. The first set of characters identify the front springs. The second set of characters identify the rear springs.
Front Spring Codes
- Base part number - 5310
Rear Spring Codes
- Base part number - 5560
