Rain Sensor: Installation

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

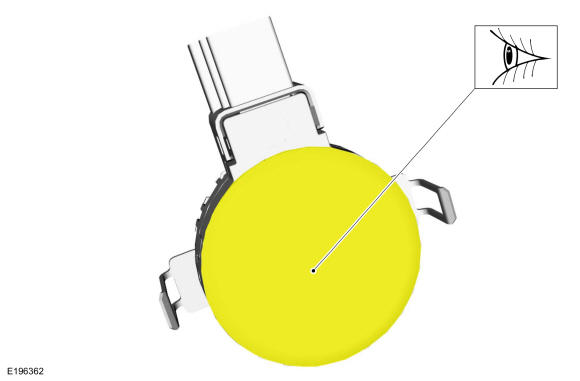

1.

Clean the windshield glass area of foreign materials.

Courtesy of FORD MOTOR COMPANY

2.

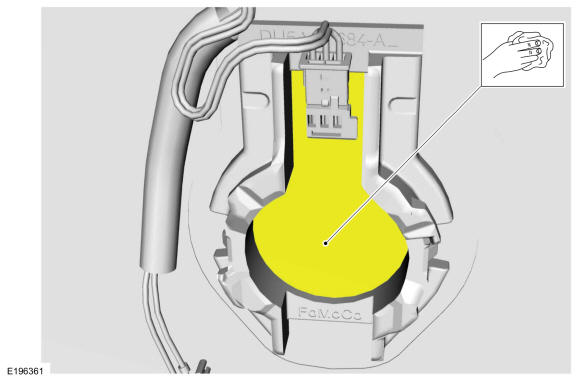

NOTE: If the rain sensor gel pack is damaged, install a new rain sensor.

Inspect the rain sensor gel pack for damage.

Courtesy of FORD MOTOR COMPANY

3.

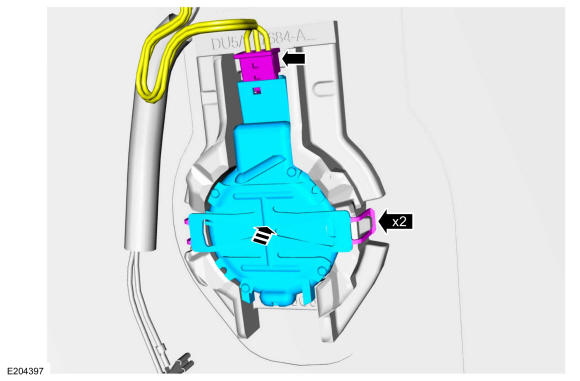

Install the rain sensor and connect the electrical connector.

Courtesy of FORD MOTOR COMPANY

4.

Install the interior rear view mirror. Refer to: Interior Rear View Mirror .
