Automatic Climate Control System

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

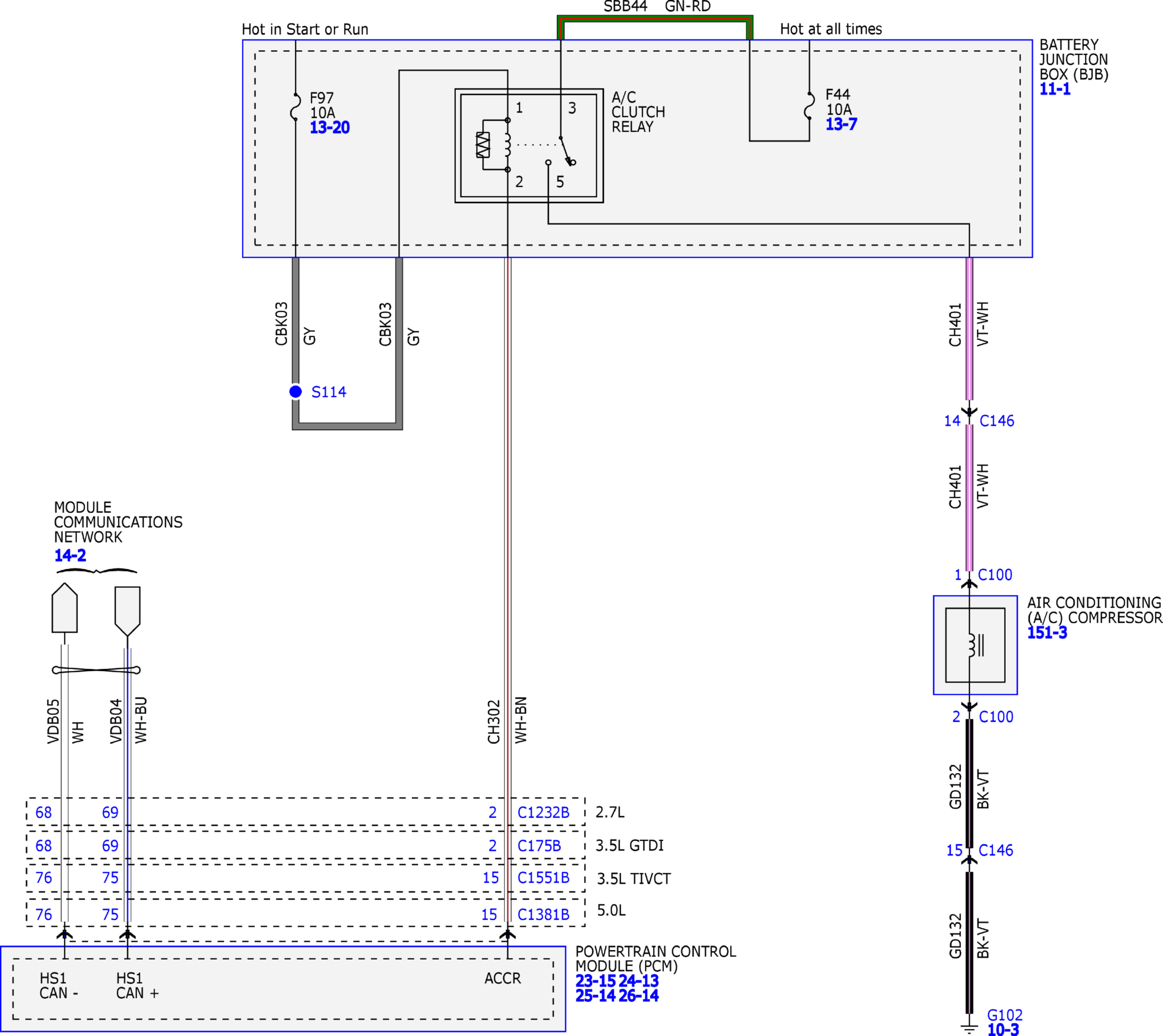

Fig 1: Automatic Climate Control System Wiring Diagram (1 of 7)

Courtesy of FORD MOTOR COMPANY

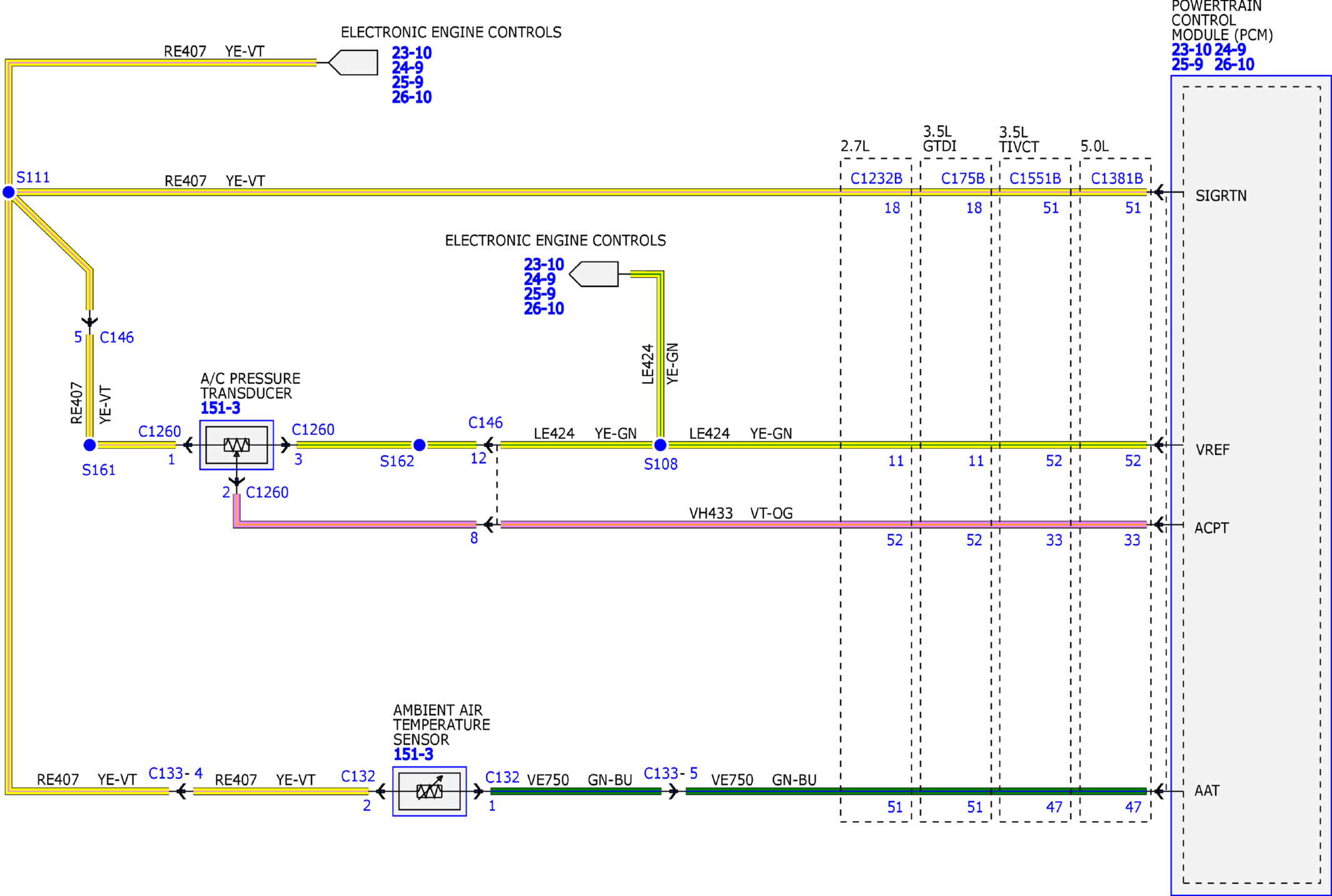

Fig 2: Automatic Climate Control System Wiring Diagram (2 of 7)

Courtesy of FORD MOTOR COMPANY

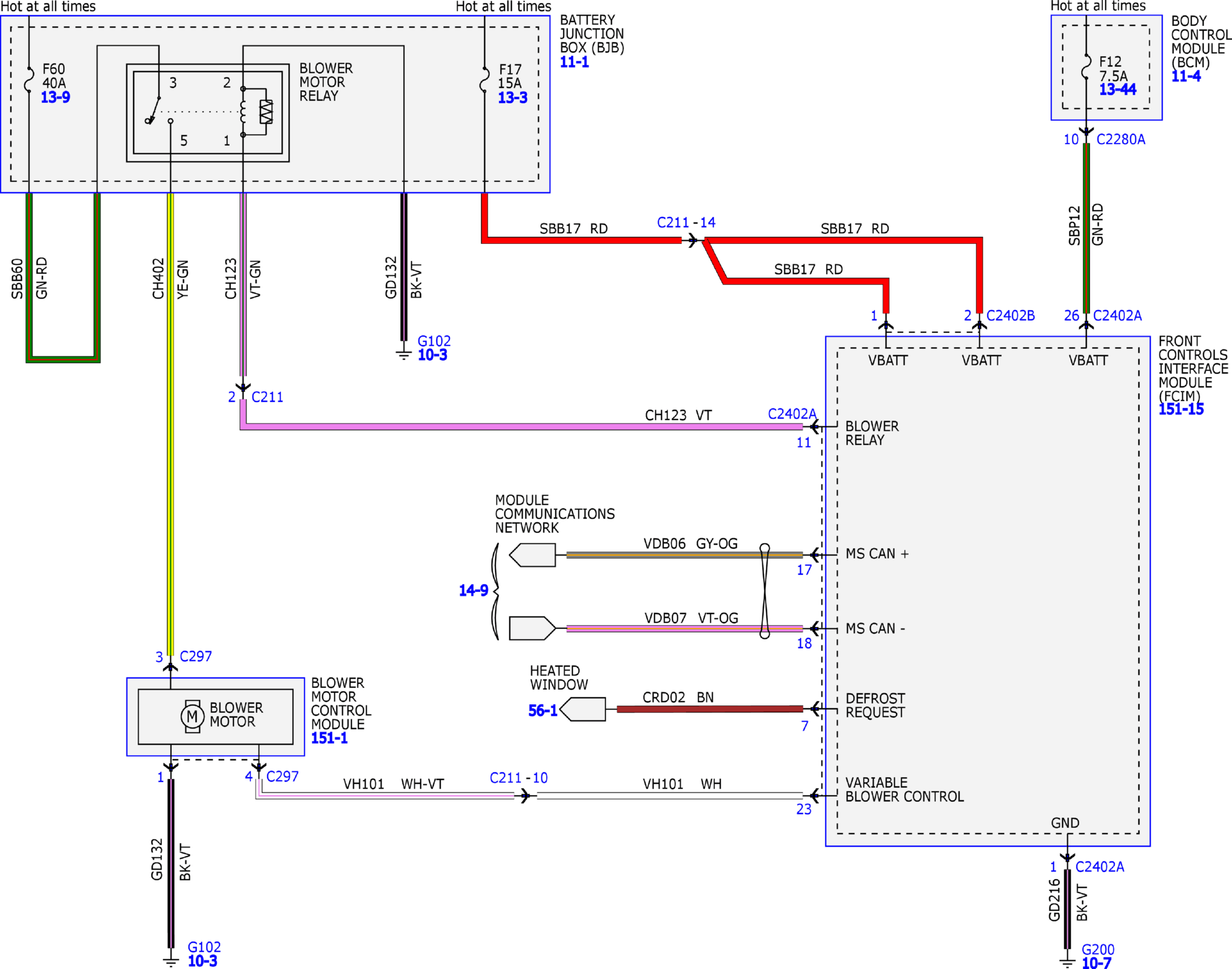

Fig 3: Automatic Climate Control System Wiring Diagram (3 of 7)

Courtesy of FORD MOTOR COMPANY

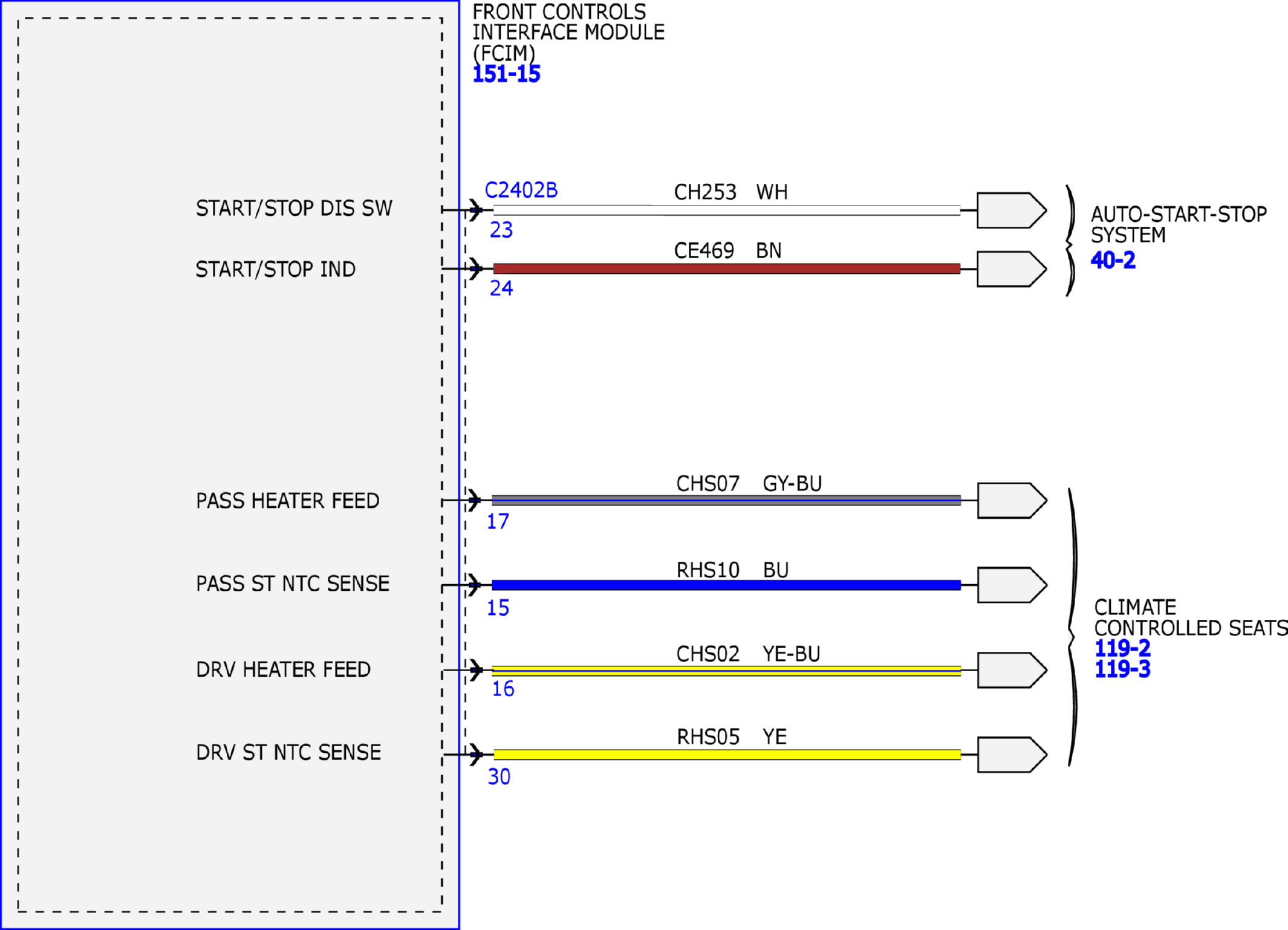

Fig 4: Automatic Climate Control System Wiring Diagram (4 of 7)

Courtesy of FORD MOTOR COMPANY

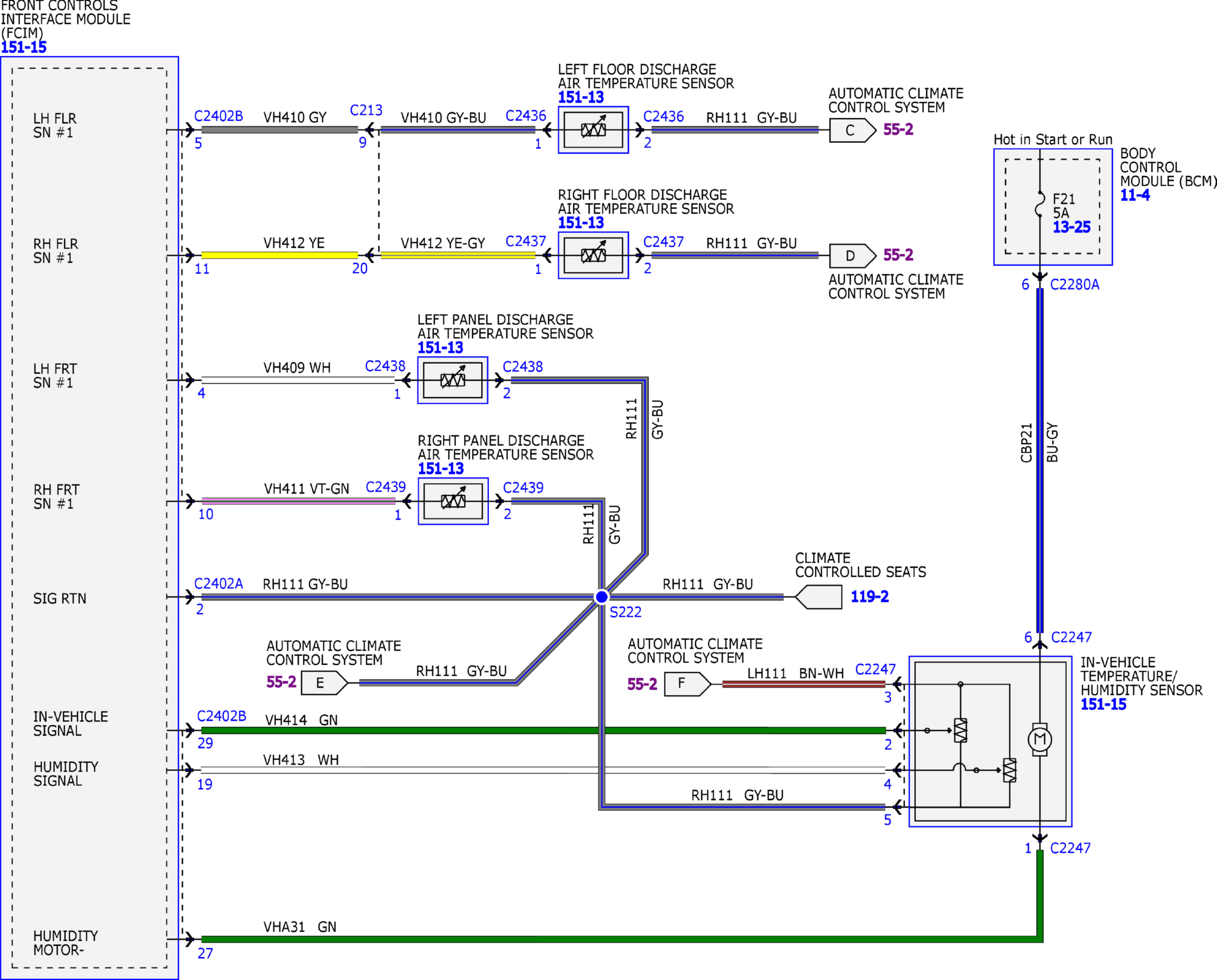

Fig 5: Automatic Climate Control System Wiring Diagram (5 of 7)

Courtesy of FORD MOTOR COMPANY

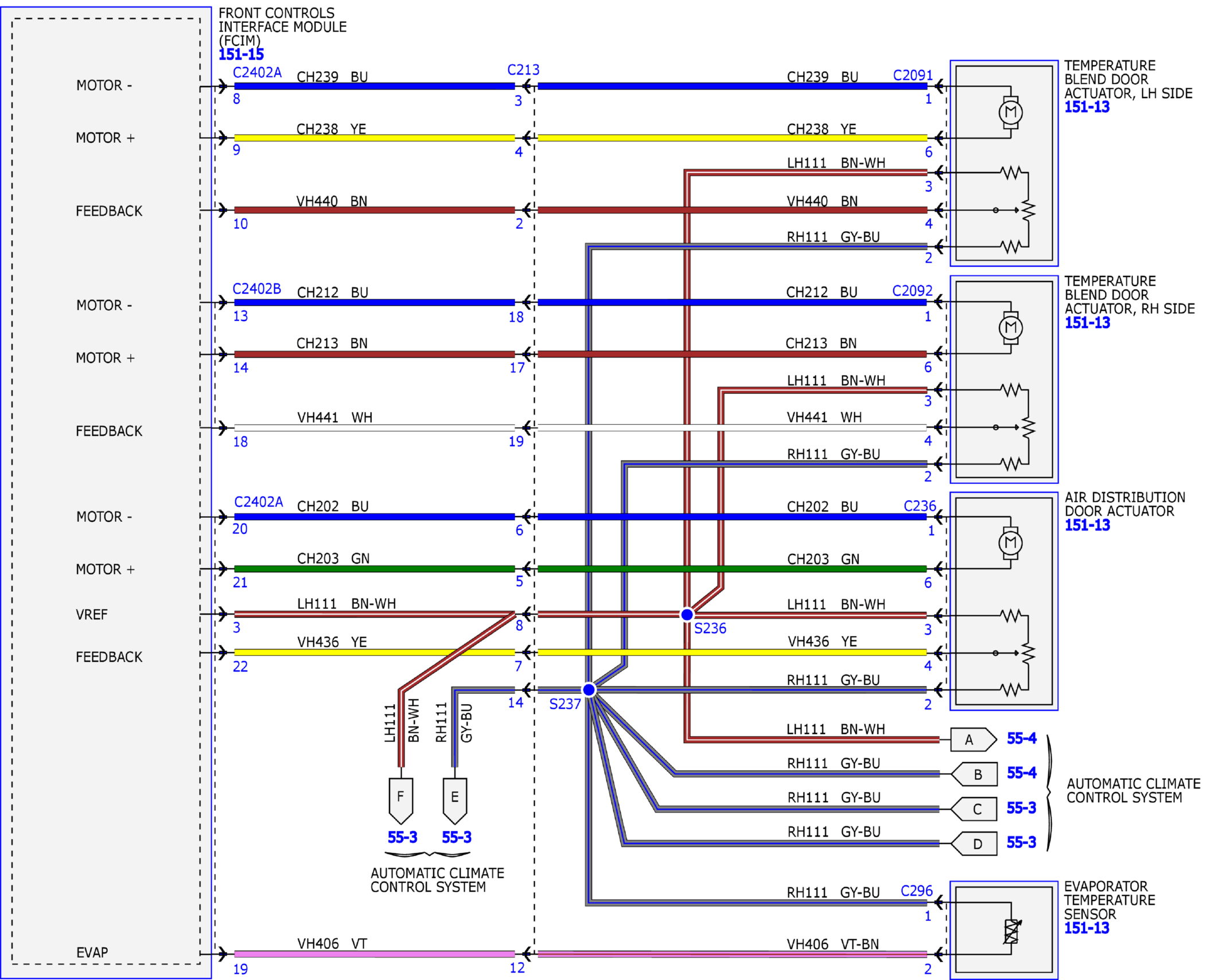

Fig 6: Automatic Climate Control System Wiring Diagram (6 of 7)

Courtesy of FORD MOTOR COMPANY

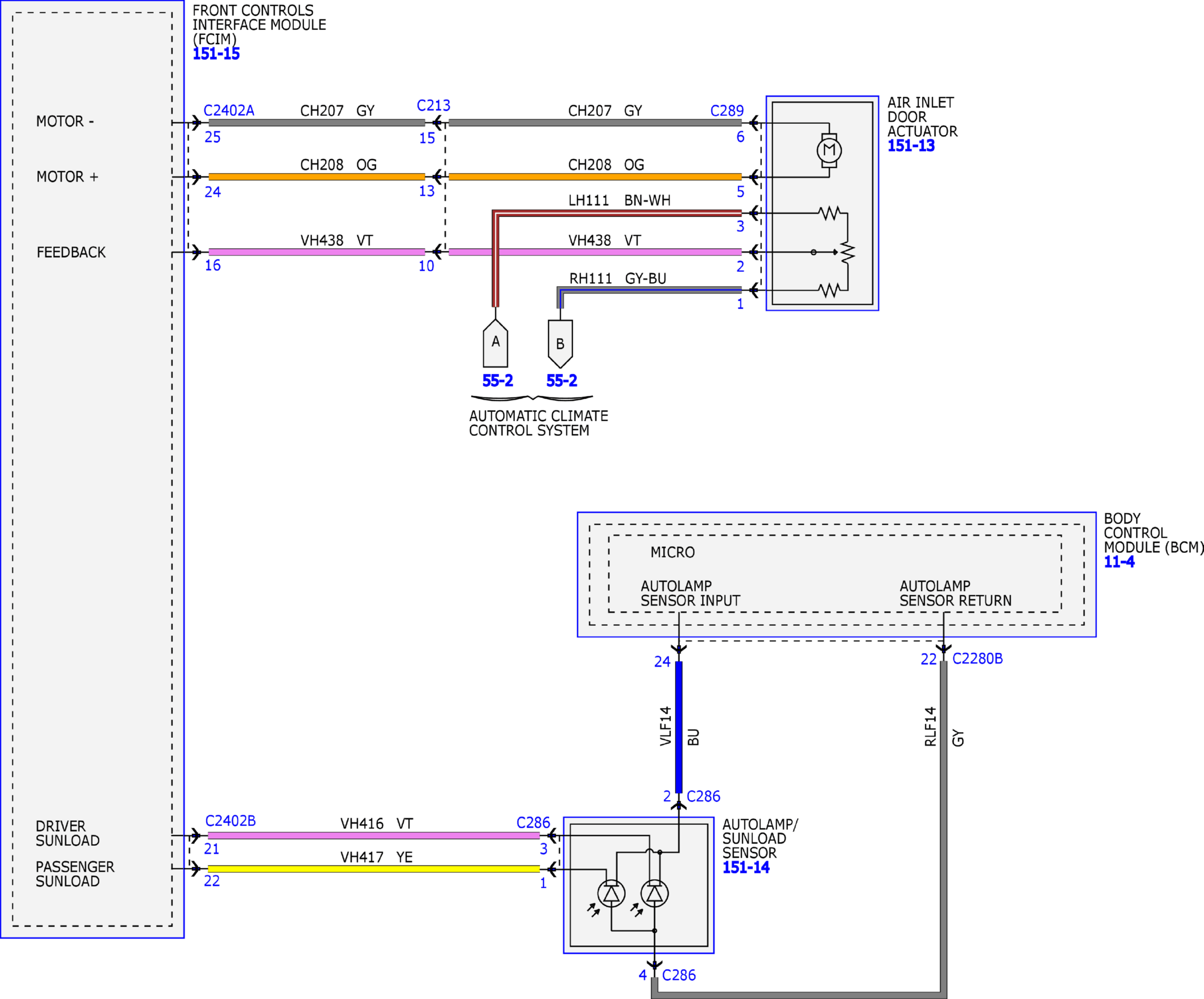

Fig 7: Automatic Climate Control System Wiring Diagram (7 of 7)

Courtesy of FORD MOTOR COMPANY
