Removal And Installation: Door: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

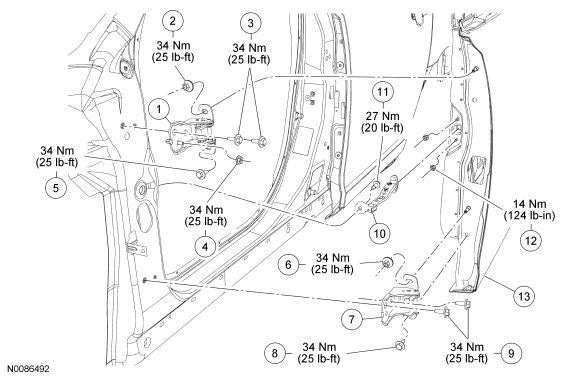

Front door shown in illustration, rear door similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 22800 | Front door upper hinge |
| 2 | W708880 | Front door upper hinge-to-door nut |
| 3 | W505433 | Front door upper hinge-to-body bolts |
| 4 | - | Front door upper hinge-to-body nut (part of 22800) |
| 5 | W505433 | Front door upper hinge-to-door bolt |
| 6 | - | Front door lower hinge-to-door nut (part of 22810) |
| 7 | 22810 | Front door lower hinge |
| 8 | W505433 | Front door lower hinge-to-door bolt |
| 9 | W505433 | Front door lower hinge-to-body bolt |
| 10 | 23552 RH/ 23553 LH RH/ 23553 LH | Front door check arm assembly |
| 11 | W707622 | Front door check arm assembly-to-body bolt |
| 12 | W520111 | Front door check arm assembly-to-door nuts |
| 13 | 20124 RH/ 20125 LH RH/ 20125 LH | Front door assembly |
