In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Special bolts are used for installation. Do not use standard bolts.

Install the flexplate, the 6 new bolts and the Flywheel Holding Tool.
- Tighten in the sequence shown in 3 stages:
  - Stage 1: Tighten to 50 Nm (37 lb-ft).
  - Stage 2: Tighten to 80 Nm (50 lb-ft).
  - Stage 3: Tighten to 112 Nm (83 lb-ft).

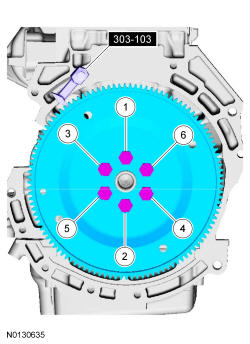

Fig 1: Flexplate Tightening Sequence

Courtesy of FORD MOTOR COMPANY

2.

Install the transaxle. For additional information, refer to Automatic Transmission 6F35 .

3.

After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
