Disassembly And Assembly Of Subassemblies: Piston: Assembly
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Align the piston-to-connecting rod orientation marks and position the piston on the connecting rod.
- 2.NOTE: Lubricate the piston pin and pin bore with clean engine oil.
Install the piston pin in the piston and connecting rod assembly.
- 4.NOTE: Lubricate the piston and the new piston rings with clean engine oil.
Install the piston rings on the piston.
- 5.

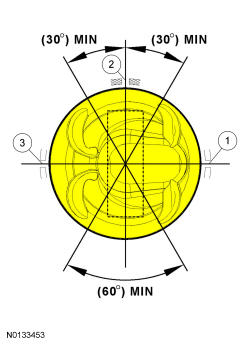

Align the piston rings on the piston.- 1.
Upper oil control segment ring gap location
- 2.
Oil control spacer gap location
- 3.
Lower oil control segment ring gap location
- 1.
