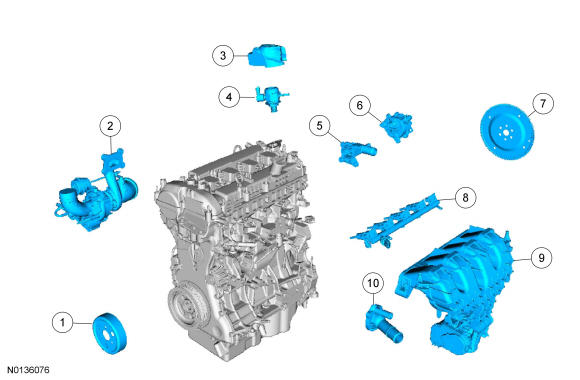

Exploded View Of Engine - External Components
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
8509 |
Coolant pump pulley |
| 2 |
6K682 |
Turbocharger |
| 3 |
9C374 |
Fuel injection pump cover |
| 4 |
9D376 |
Fuel injection pump |
| 5 |
8K556 |
Coolant outlet |
| 6 |
2A451 |
Brake vacuum pump |
| 7 |
6375 |
Flexplate |
| 8 |
9F797 |
Fuel rail |
| 9 |
9424 |
Intake manifold |
| 10 |
8575 |
Thermostat assembly |
