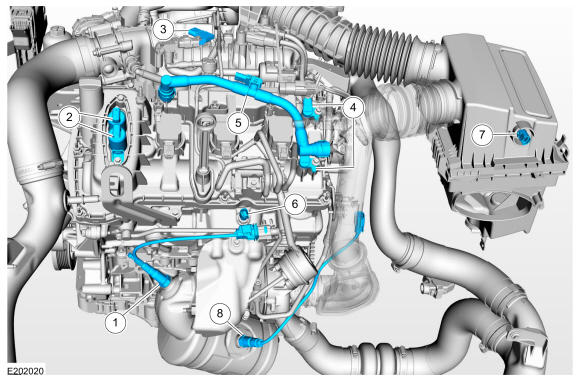

Electronic Engine Controls Component Location - LH

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Left hand HO2S
2	Left hand VCT oil control solenoids
3	MAP sensor
4	Left hand CMP sensors
5	Crankcase pressure sensor
6	CHT sensor
7	IAT sensor
8	Left hand Catalyst monitor sensor
