Downshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver airbag. Refer to: Driver Airbag .

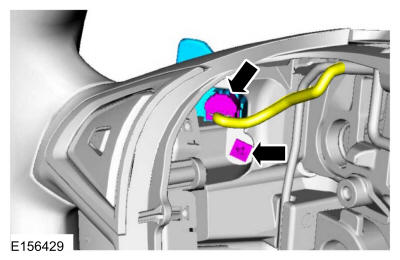

  2. Remove the downshift paddle switch.

    • Disconnect the electrical connector.

    • Remove the retainer and the downshift paddle switch.

      Torque: 44 lb.in (5 Nm)

GFD195339Courtesy of FORD MOTOR COMPANY
