Radio Transceiver Module (RTM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Use care to not crease the headliner during removal and installation or damage to the headliner can occur.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
On both sides, remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
NOTE: Vehicle with roof opening panel shown, vehicle without roof opening panel similar.

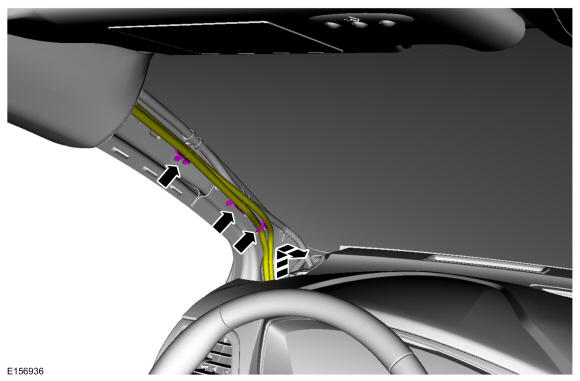

Release the clips and position the LH wire harness aside.

Courtesy of FORD MOTOR COMPANY

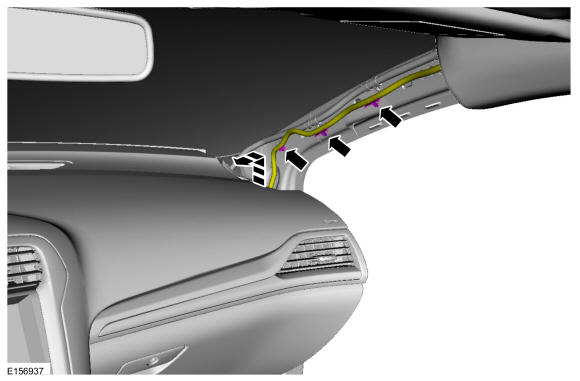

Vehicles equipped with rain sensing wipers. Release the clips and position the RH wire harness aside.

Courtesy of FORD MOTOR COMPANY
On both sides, remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel .
On both sides, remove the C-pillar trim panel. Refer to: C-Pillar Upper Trim Panel .
If equipped.

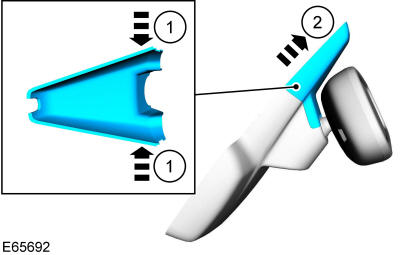

1. Release the upper rear view mirror cover clips.
2. Remove the upper rear view mirror cover.
Courtesy of FORD MOTOR COMPANY

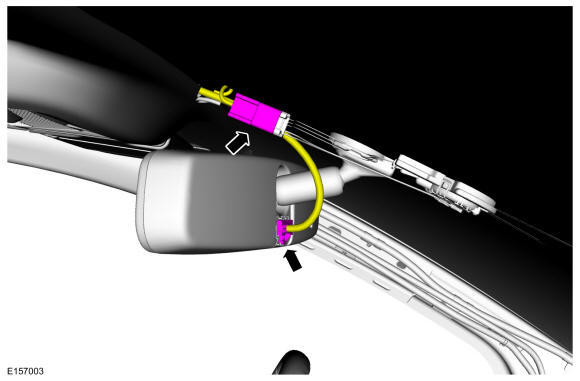

If equipped. Disconnect the rear view mirror electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: RH side shown, LH side similar.

On both sides. Remove the sun visor.

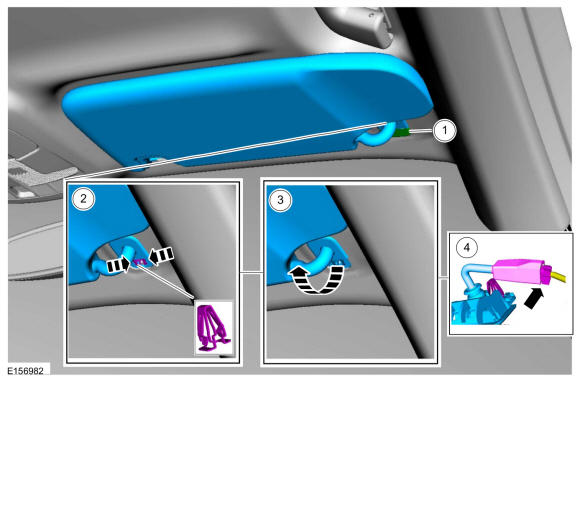

1. Remove the retainer cover.
2. Release the clip.
3. Remove the sun visor.
4. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
NOTE: RH side shown, LH side similar.

On both sides. Remove the screw and the sun visor clip.

Courtesy of FORD MOTOR COMPANY

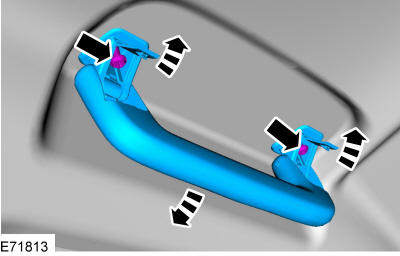

All. Open the screw covers, remove the screws and the grab handle.

Courtesy of FORD MOTOR COMPANY

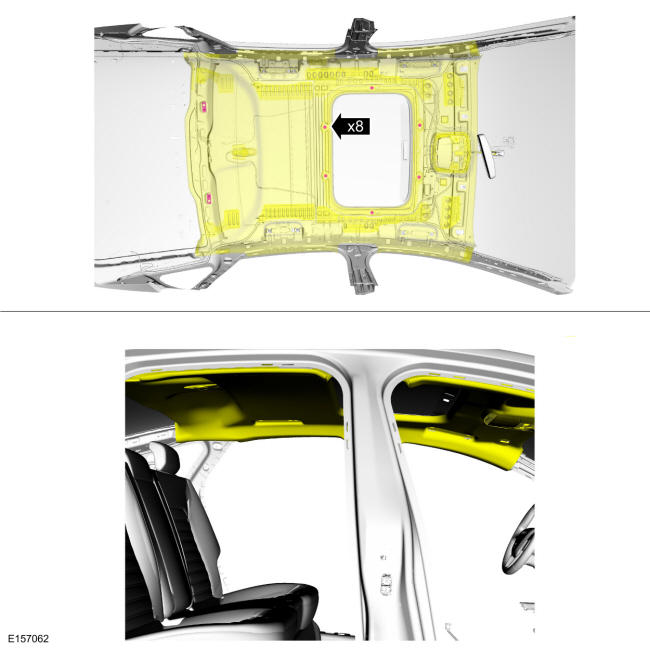

Release the headliner magnets and lower the headliner.

Courtesy of FORD MOTOR COMPANY

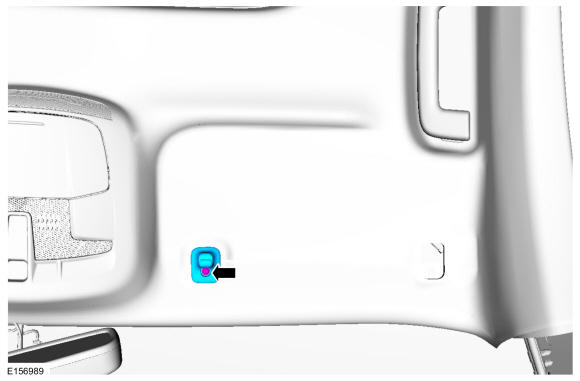

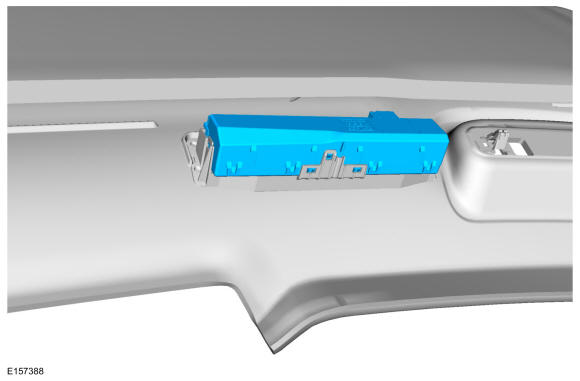

Disconnect the electrical connector, release the tabs and remove the RTM.
