Body Control Module (BCM): Removal
WARNING: This page is about a different variant/trim than selected.
All vehicles
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced
Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.
-
NOTE: The PAM is integral to the BCM. This step is only necessary if the BCM is being replaced.
Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions.
Vehicles with manual transmission

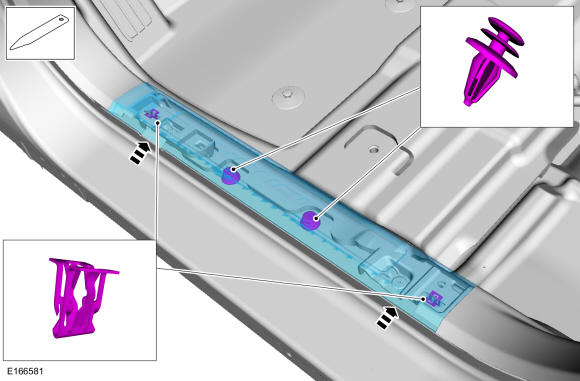

- Release the clips, push-pins and remove the LH side front scuff plate. Use the General Equipment: Interior Trim Remover

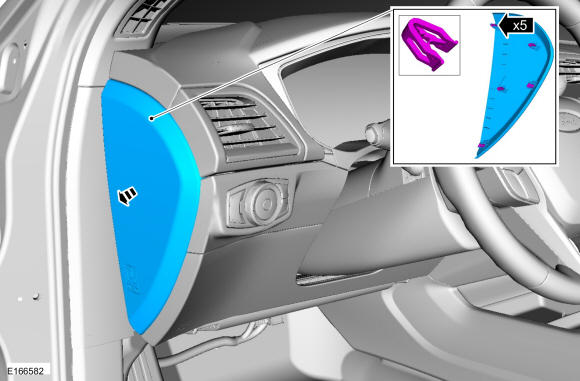

- Release the clips and remove the LH instrument panel side trim panel.

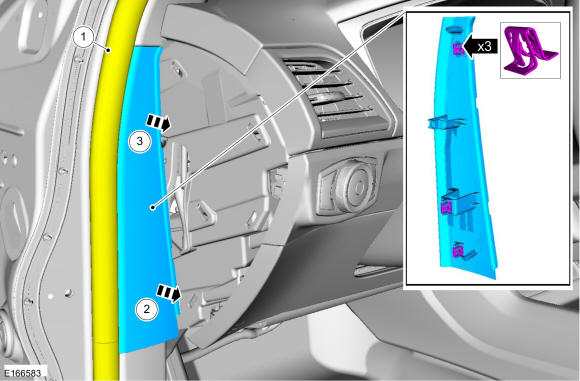

- Position the LH front door weatherstrip aside, release the clips and remove the cowl panel upper trim panel.

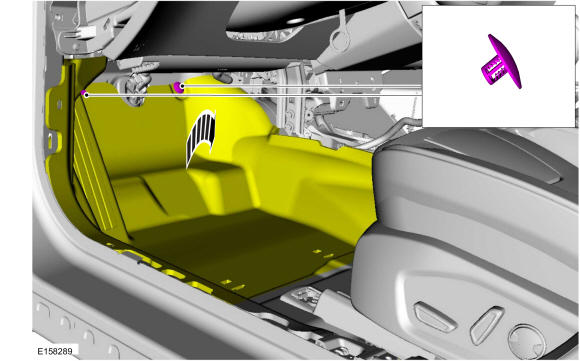

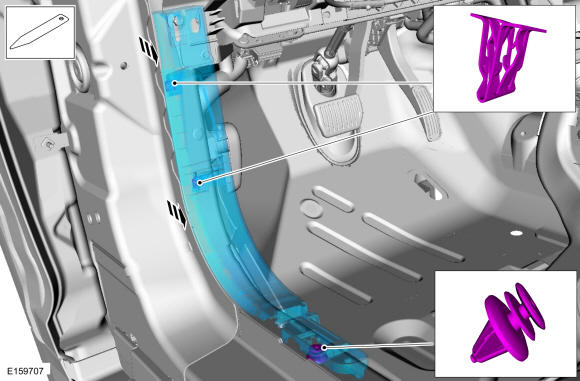

- Release the clips, push-pins and remove the LH side lower cowl trim panel. Use the General Equipment: Interior Trim Remover
- Remove the push-pins and position the front carpet aside.
-
NOTE: Lower for access to electrical connectors.

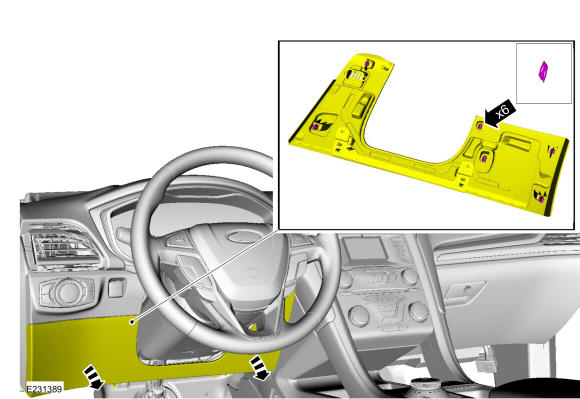

Release the clips and lower the steering column opening trim panel.
All vehicles

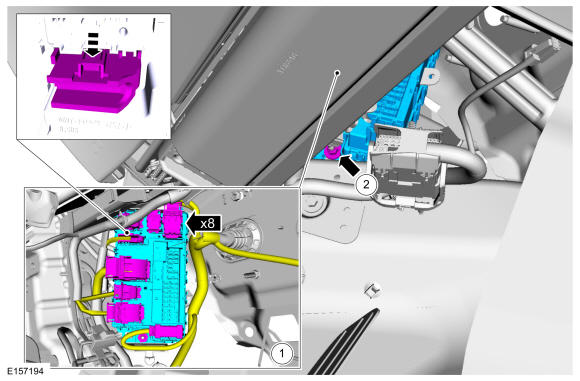

- Remove the BCM.
- Disconnect the electrical connectors.
- Remove the nut and the BCM.
Torque: 44 lb.in (5 Nm)
