Window Control Switch - W/O Door Modules

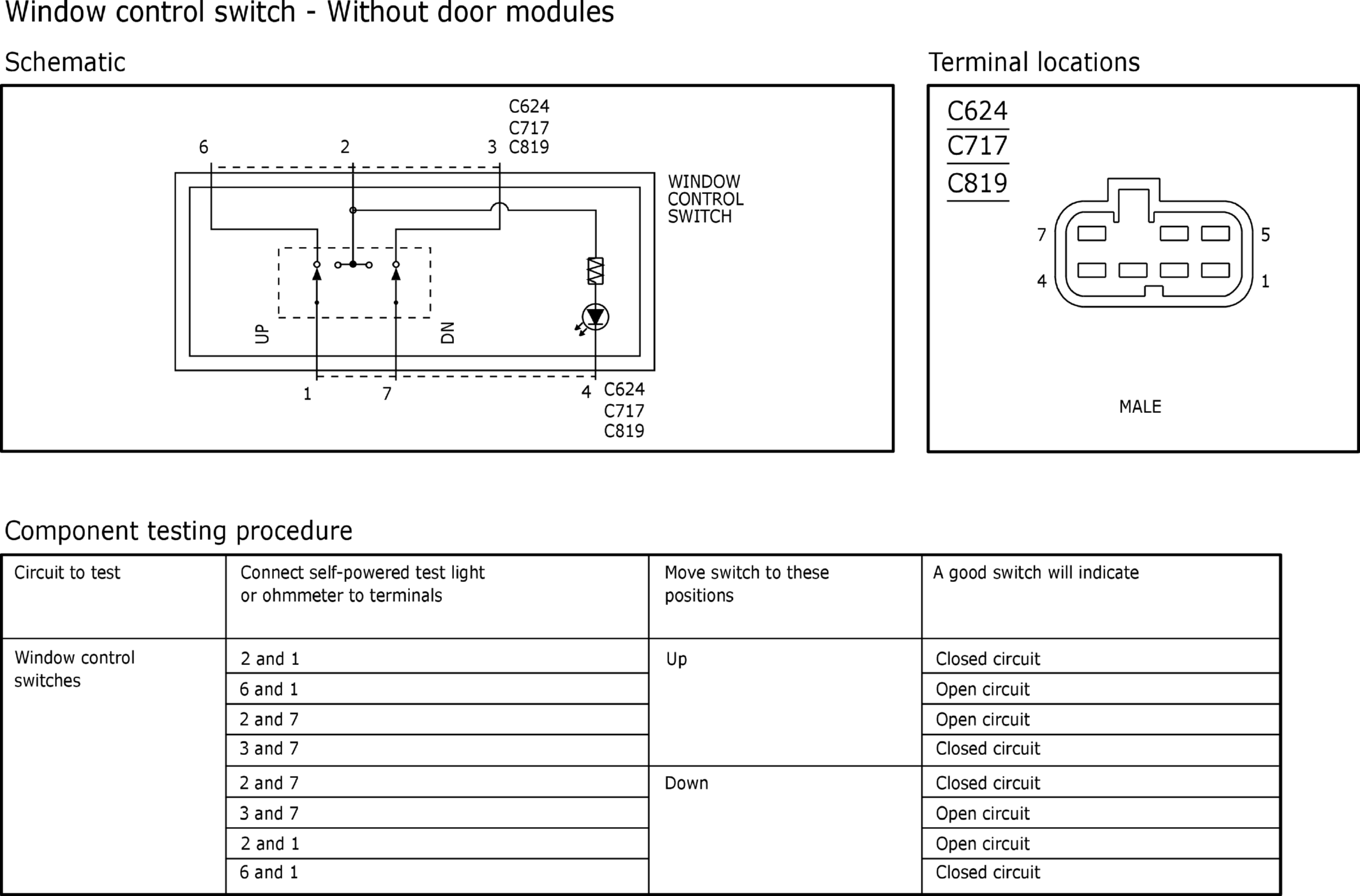

Fig 1: Window Control Switch - W/O Door Modules

GFDW53089

Courtesy of FORD MOTOR COMPANY
