Master Window Control Switch - W/O Door Modules, W/ Rear Power Windows

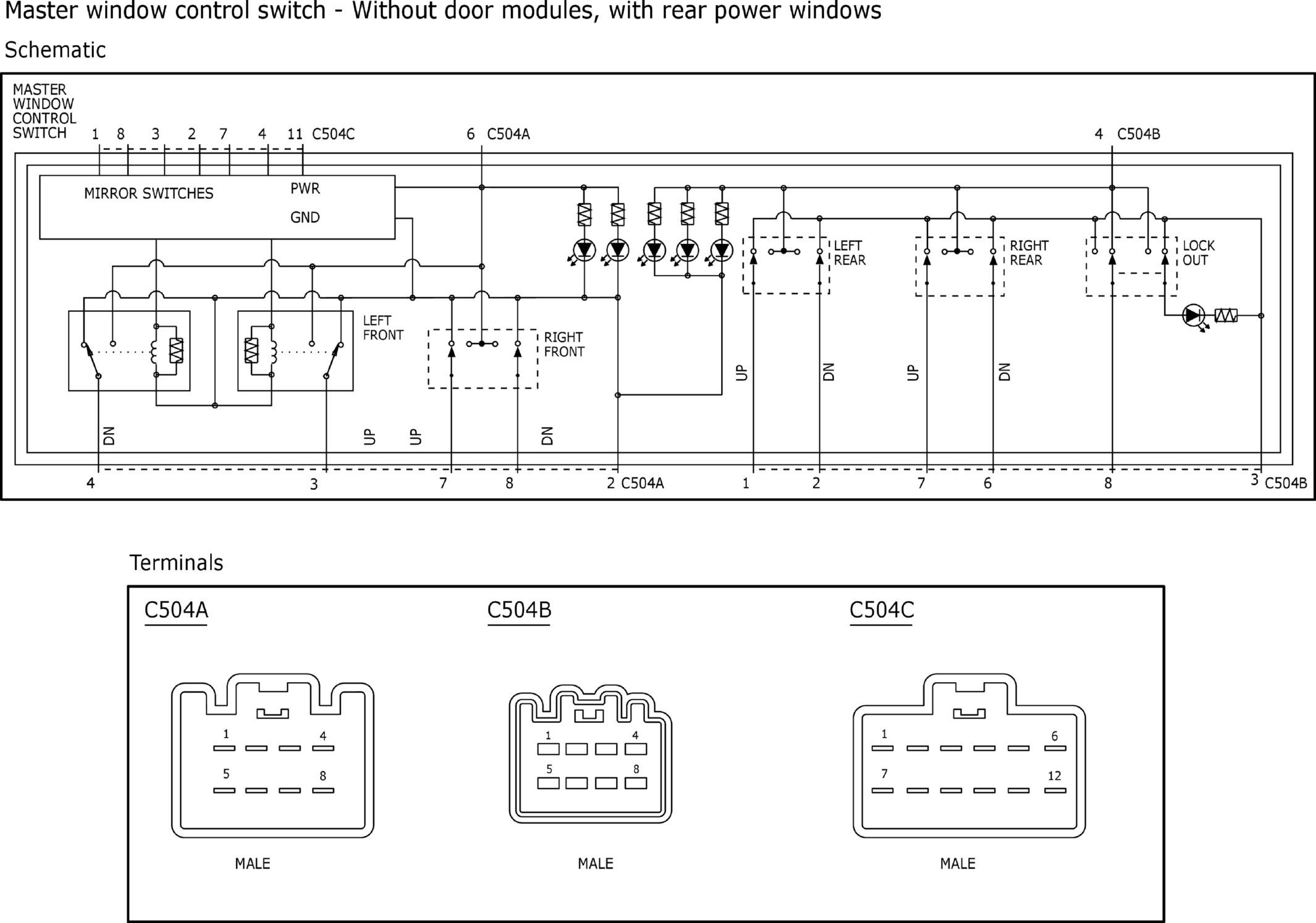

Fig 1: Master Window Control Switch - W/O Door Modules, W/ Rear Power Windows (1 Of 2)
GFDW53090Courtesy of FORD MOTOR COMPANY

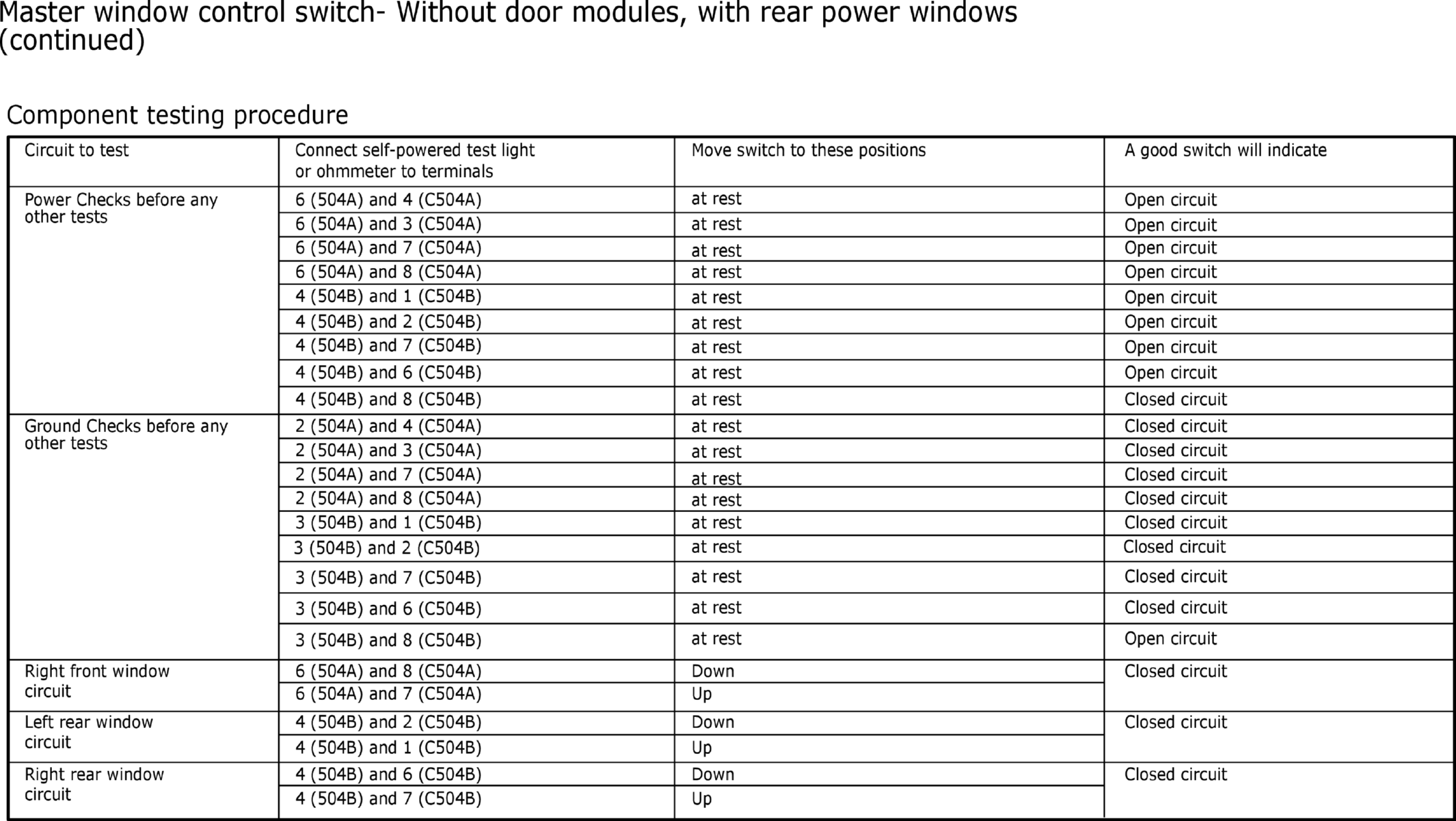

Fig 2: Master Window Control Switch - W/O Door Modules, W/ Rear Power Windows (2 Of 2)
GFDW53091Courtesy of FORD MOTOR COMPANY
