Front Control/Display Interface Module (FCDIM) Components Location

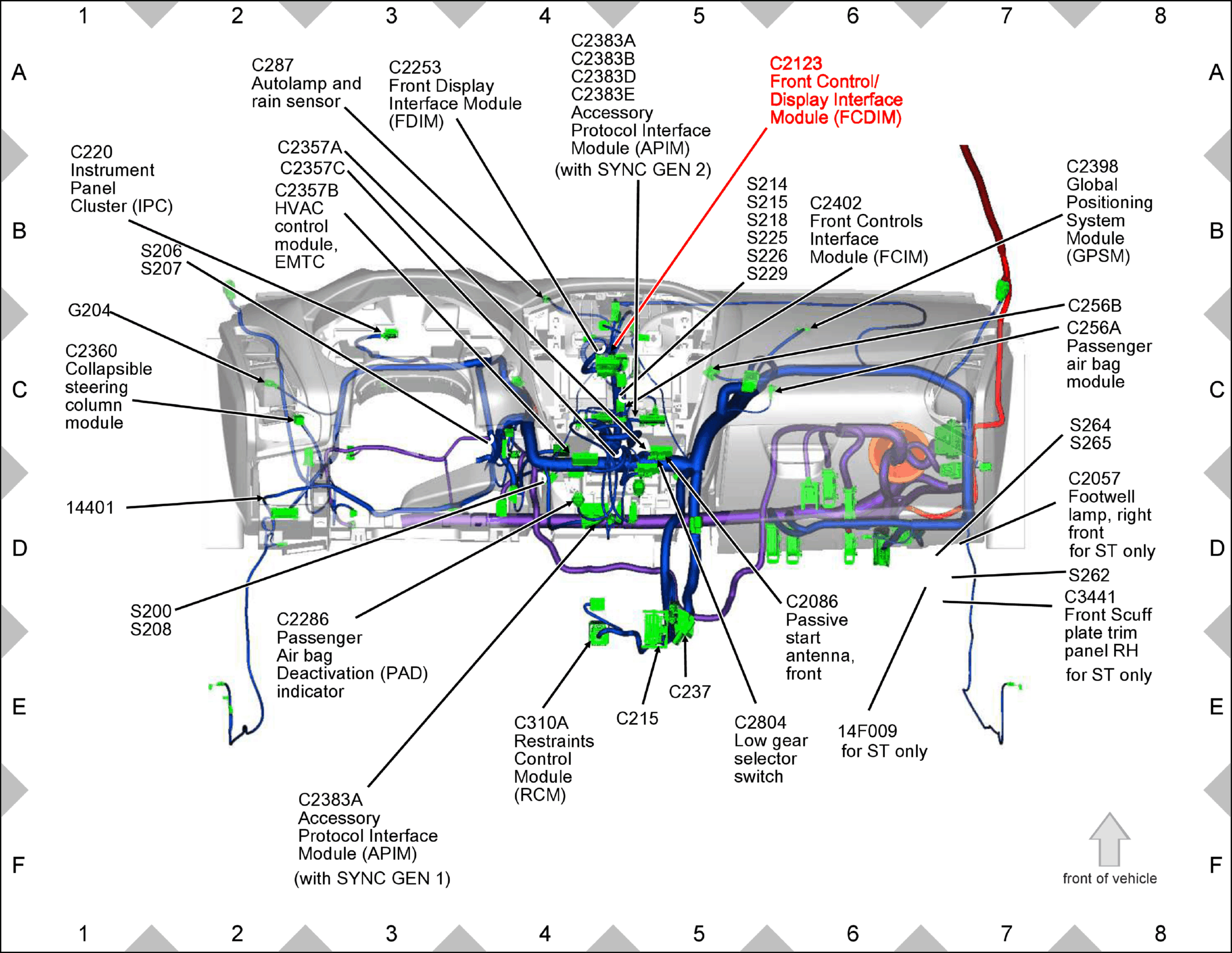

Fig 1: Front Control/Display Interface Module (FCDIM) Components Location

GFDW52317

Courtesy of FORD MOTOR COMPANY
