Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

2.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the PMI routine. Use the General Equipment: Ford Diagnostic Equipment

3.

Remove the LHF fender splash shield. Refer to: Fender Splash Shield .

4.

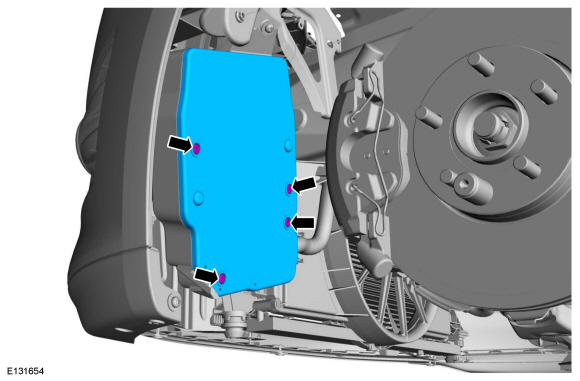

Remove the retainers and the PCM cover.

GFD62124

Courtesy of FORD MOTOR COMPANY

5.

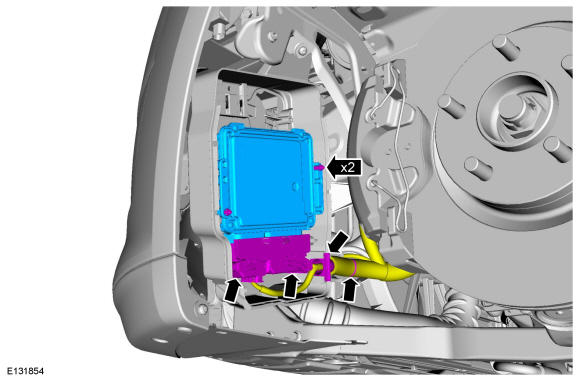

- Disconnect the PCM electrical connectors.
- Remove the retainers and the PCM.

GFD62125

Courtesy of FORD MOTOR COMPANY
