Powertrain Control Module (PCM): Removal

1. 1.


   NOTE: This step is only necessary when installing a new component.

   Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Use the General Equipment: Ford Diagnostic Equipment

1. 2.

   Refer to: Battery Disconnect And Connect

1. 3.

   Refer to: Fender Splash Shield

Vehicles without PCM security shield

1. 4.



Courtesy of FORD MOTOR COMPANY

Vehicles with PCM security shield

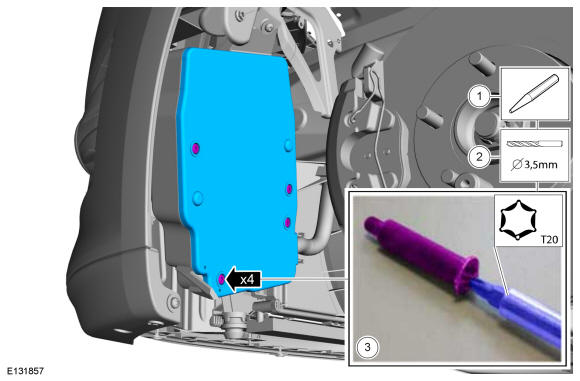

1. 5.

   Use the General Equipment: Center Punch. Use the General Equipment: 3.5 mm Drill Bit

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 6.



Courtesy of FORD MOTOR COMPANY
