Powertrain Control Module (PCM): Removal

1. 1.


   WARNING: Before beginning any service procedure, REFER to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

1. 2.


   NOTE: This step is only necessary when installing a new component.

   Refer to: Module Configuration - System Operation and Component Description .

1. 3.

   LH side. Refer to: Fender Splash Shield .

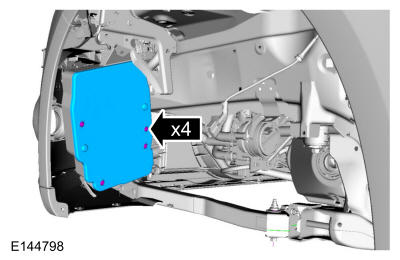

1. 4.



Courtesy of FORD MOTOR COMPANY

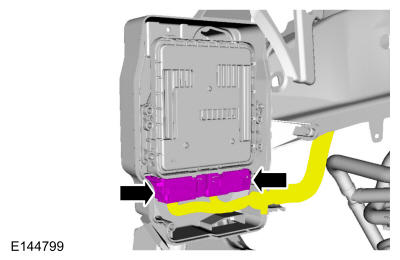

1. 5.



Courtesy of FORD MOTOR COMPANY

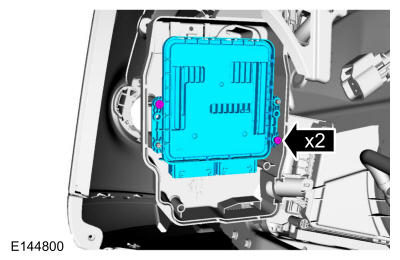

1. 6.



Courtesy of FORD MOTOR COMPANY
