Seat Control Switch, Second Row

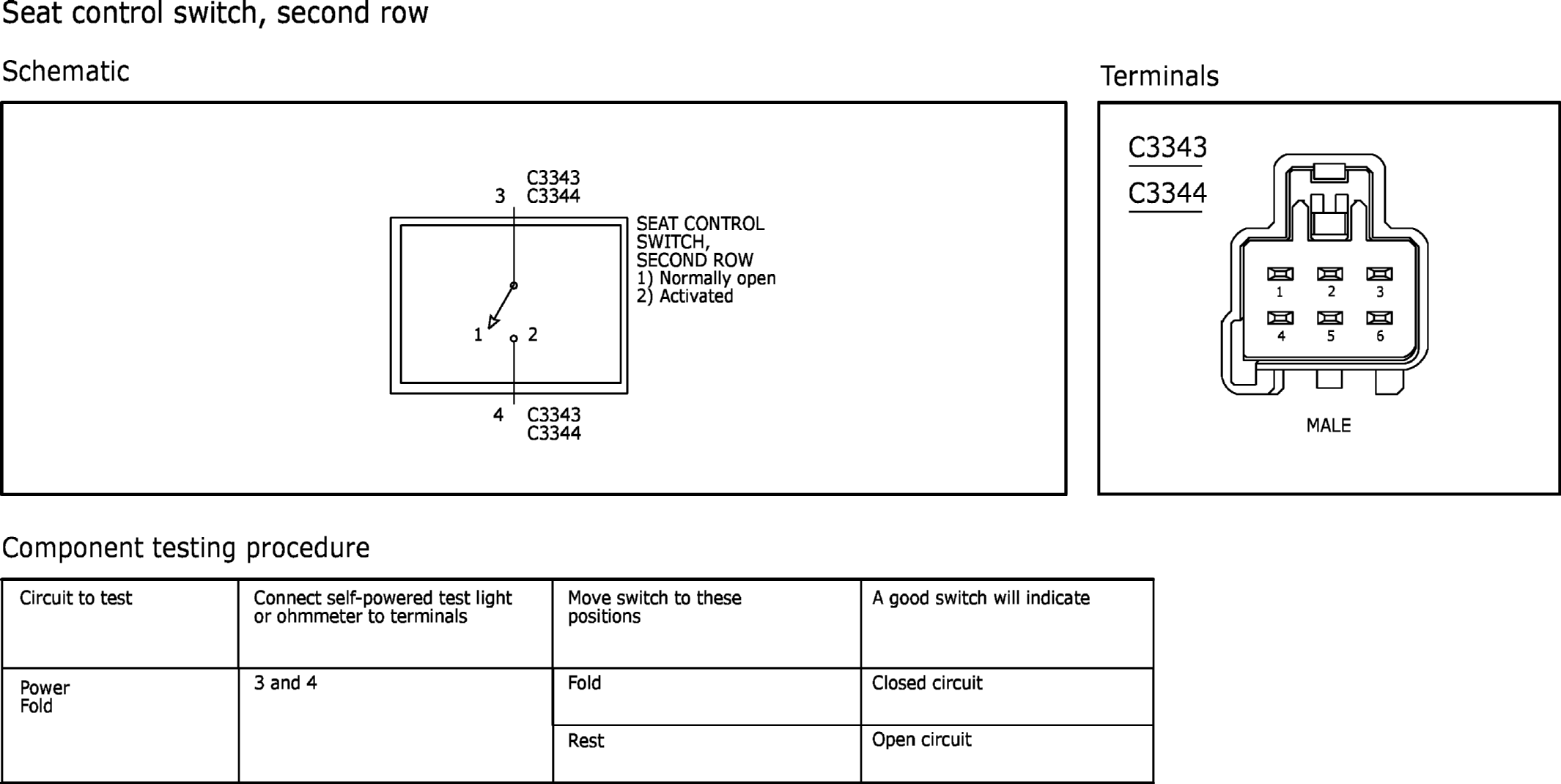

Fig 1: Seat Control Switch, Second Row

GFDW65269

Courtesy of FORD MOTOR COMPANY
