Seat Control Switch, 10-Way Driver Power Seat

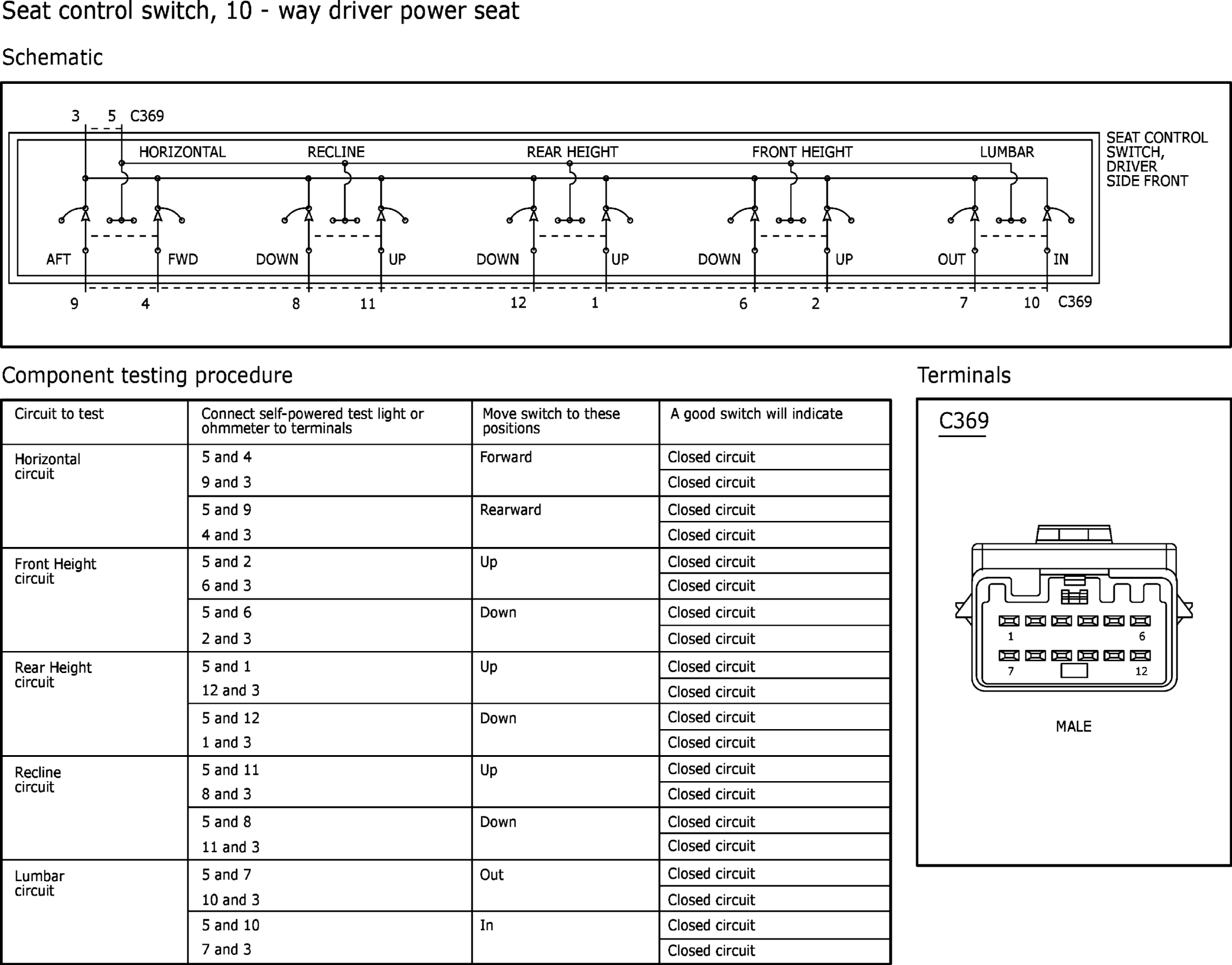

Fig 1: Seat Control Switch, 10-Way Driver Power Seat

GFDW65268

Courtesy of FORD MOTOR COMPANY
