Component Testing: Relays

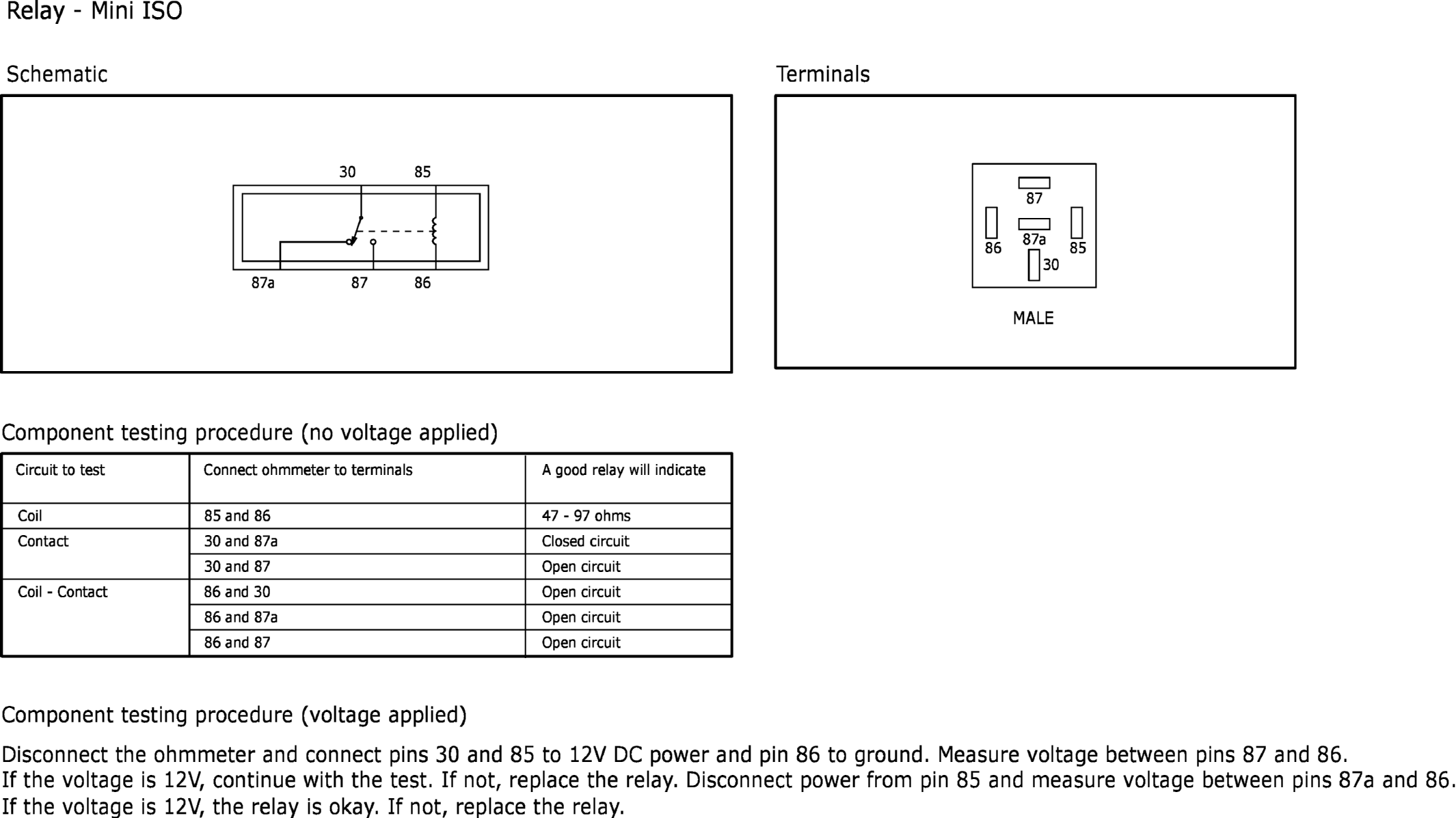

Fig 1: Relay - Mini ISO
GFDW65261Courtesy of FORD MOTOR COMPANY

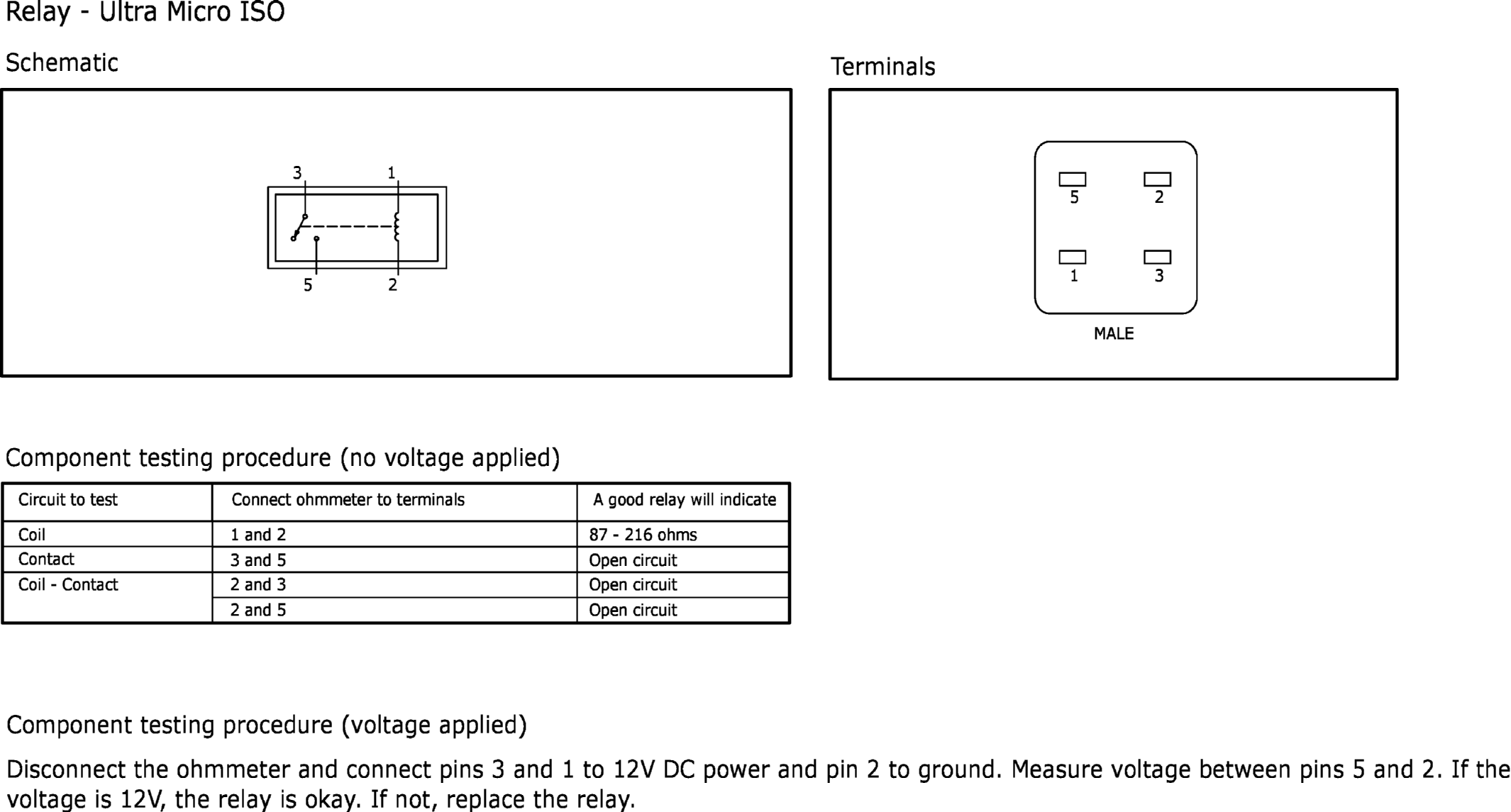

Fig 2: Relay - Ultra Micro ISO
GFDW65262Courtesy of FORD MOTOR COMPANY

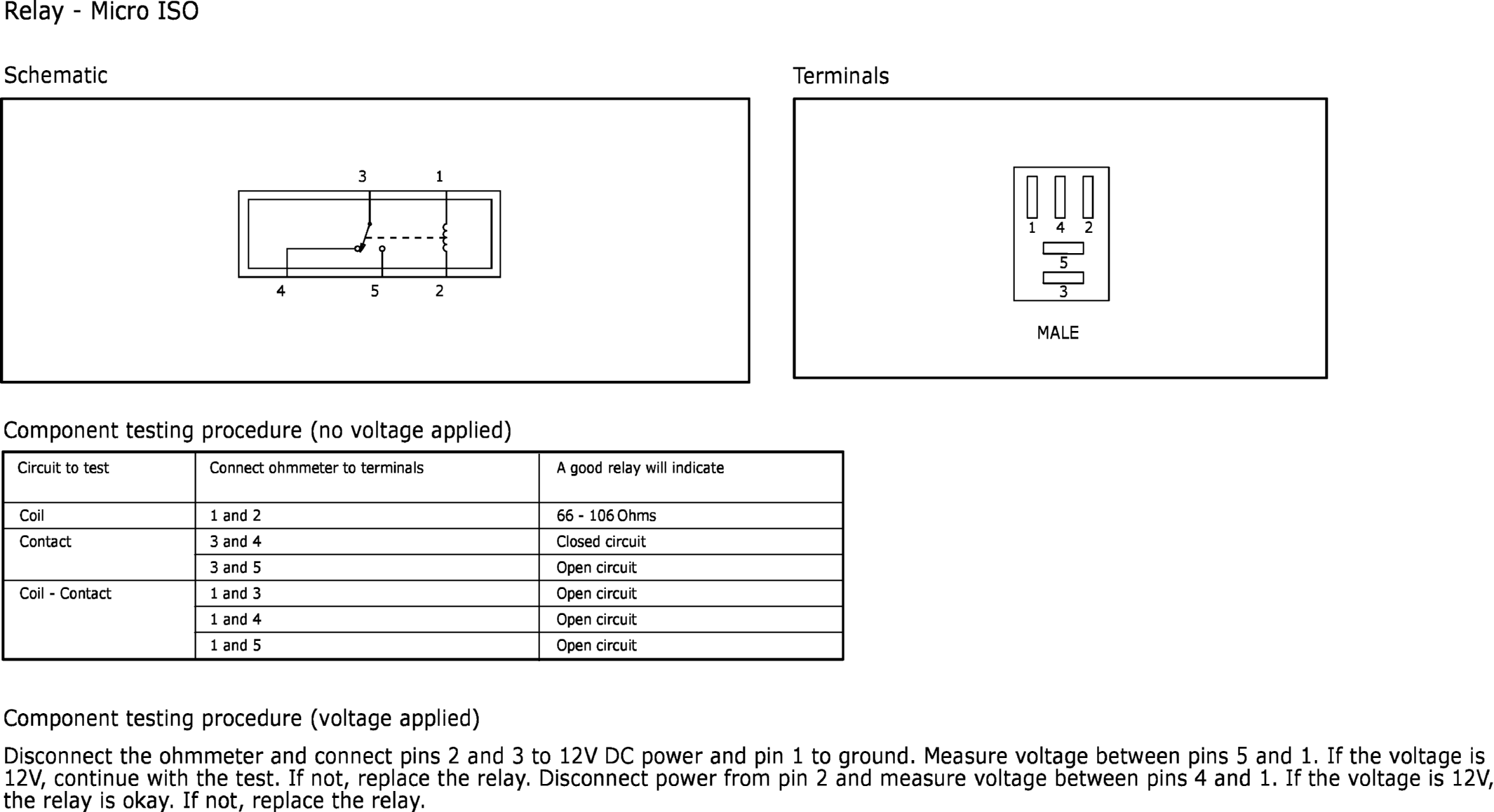

Fig 3: Relay - Micro ISO
GFDW65263Courtesy of FORD MOTOR COMPANY
