Fuse And Relay Location

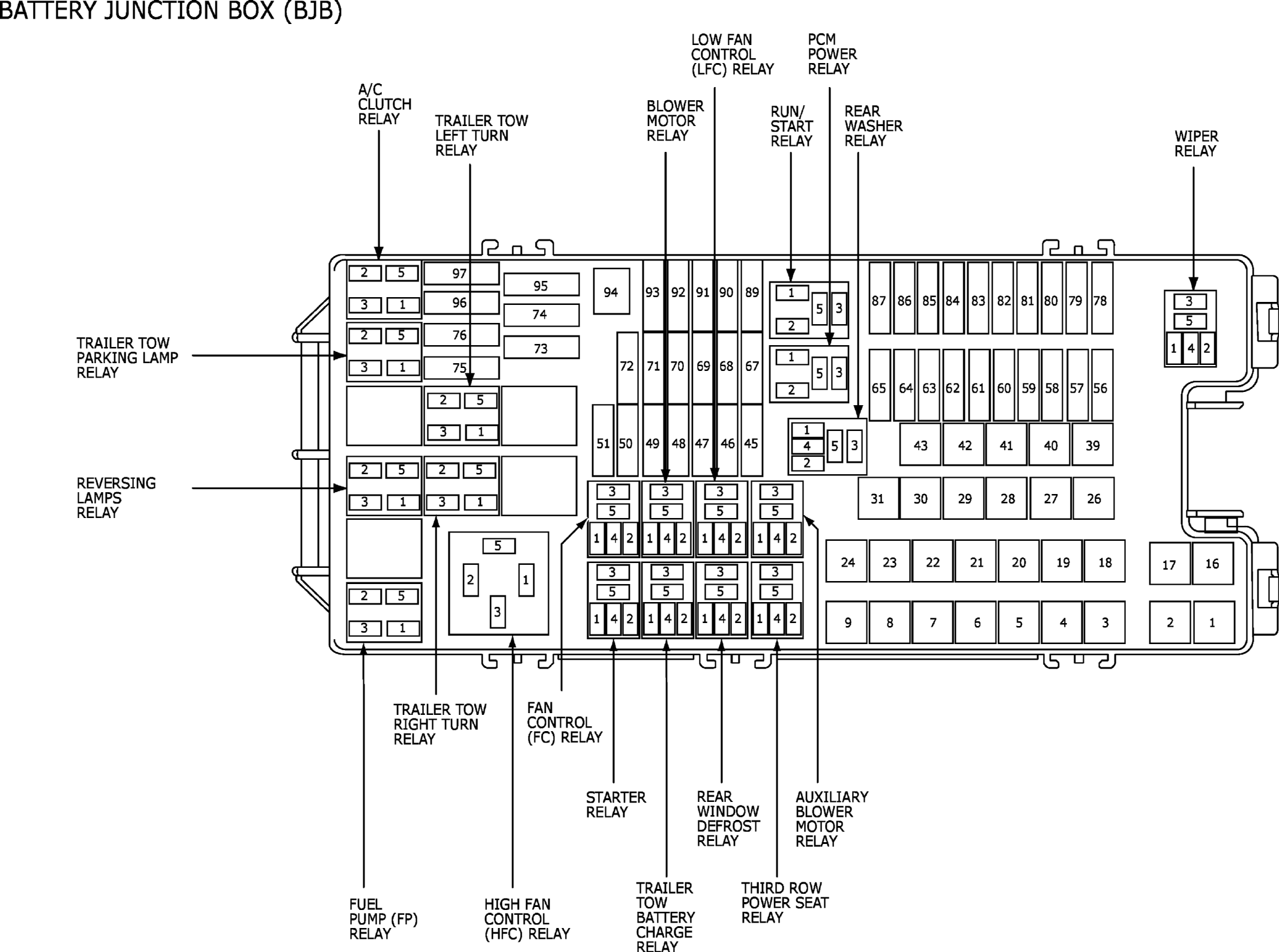

Fig 1: Battery Junction Box (BJB) Component Location
GFDW64983Courtesy of FORD MOTOR COMPANY

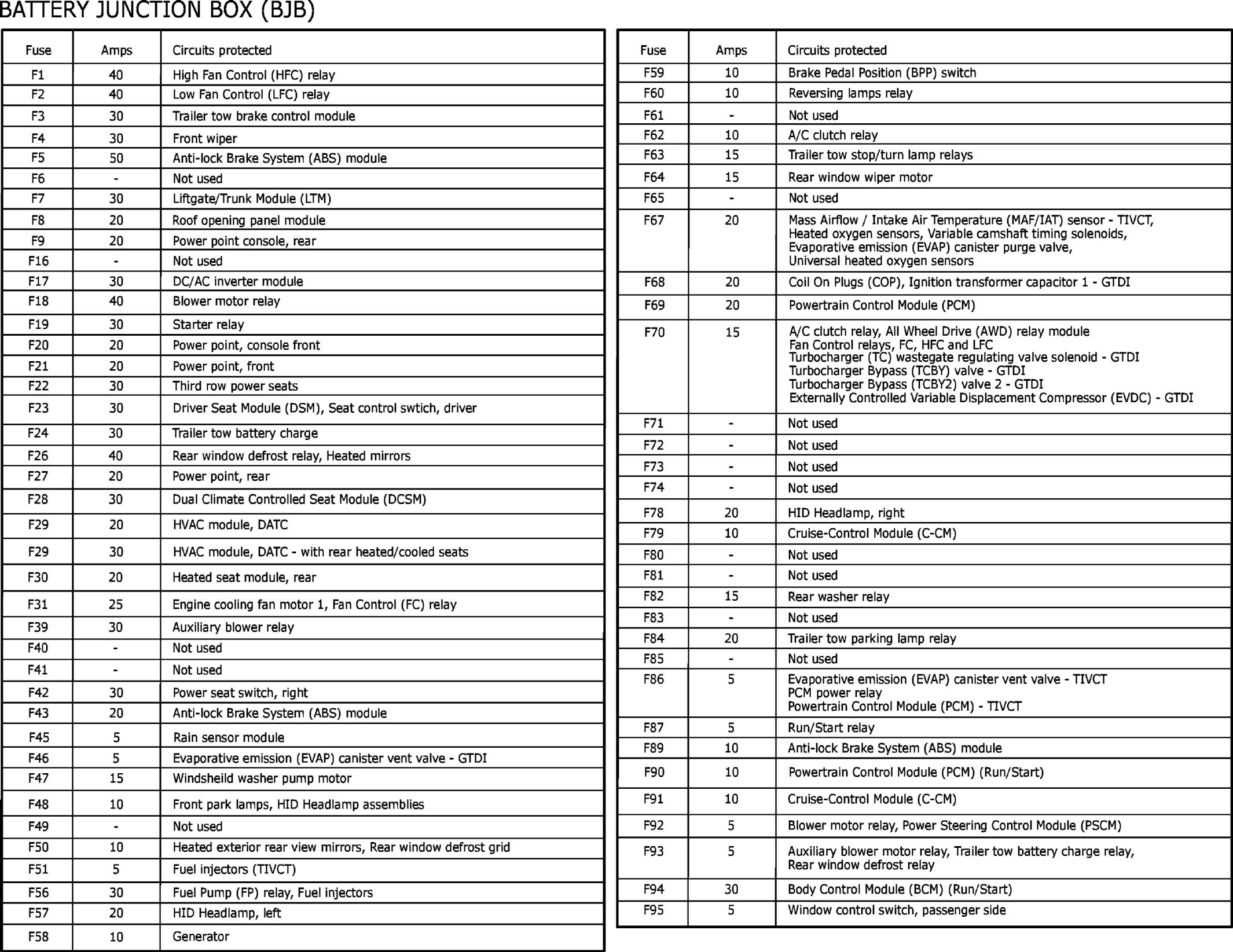

Fig 2: Battery Junction Box (BJB) Component Location Legend
GFDW64984Courtesy of FORD MOTOR COMPANY

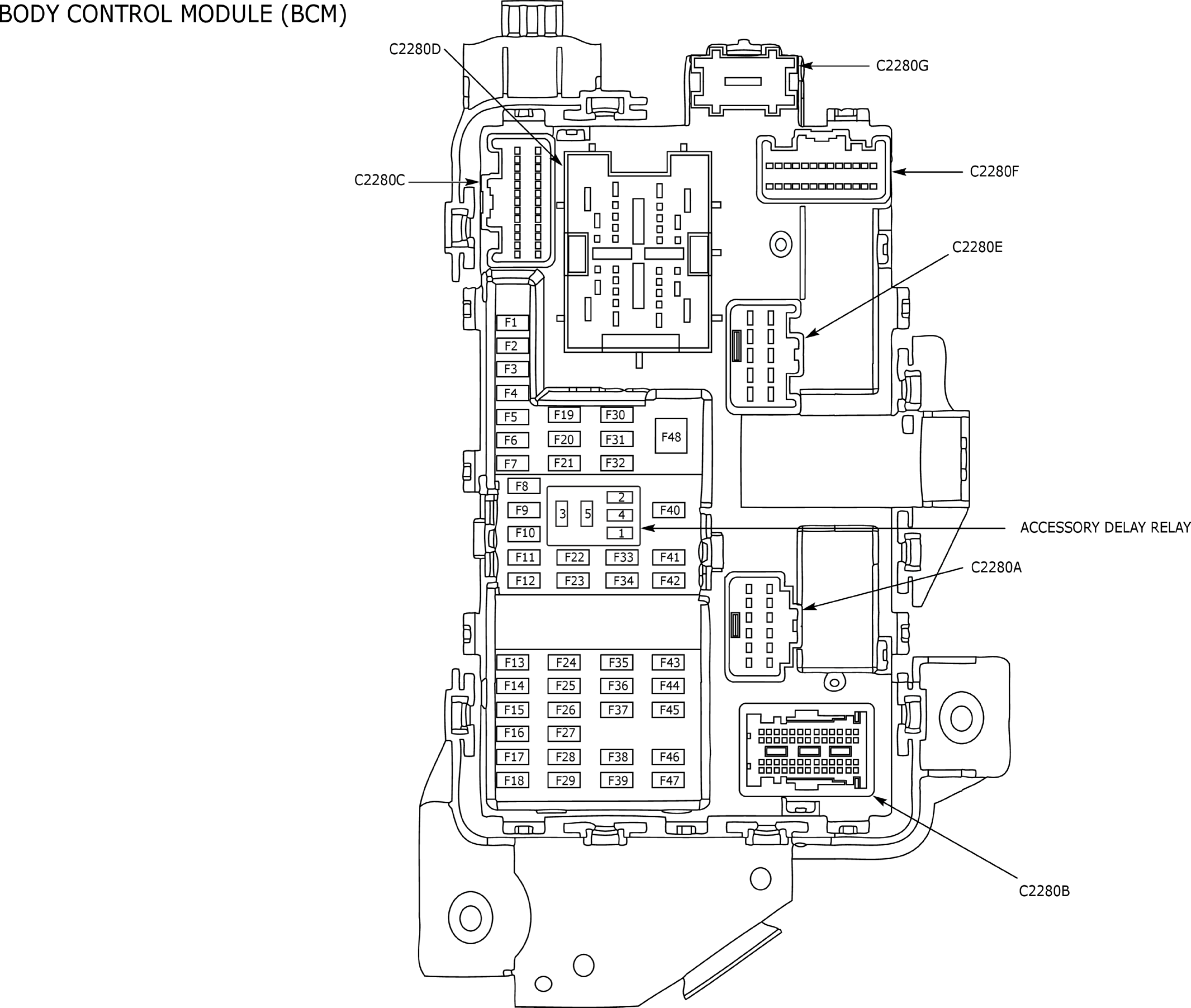

Fig 3: Body Control Module (BCM) Component Location
GFDW64985Courtesy of FORD MOTOR COMPANY

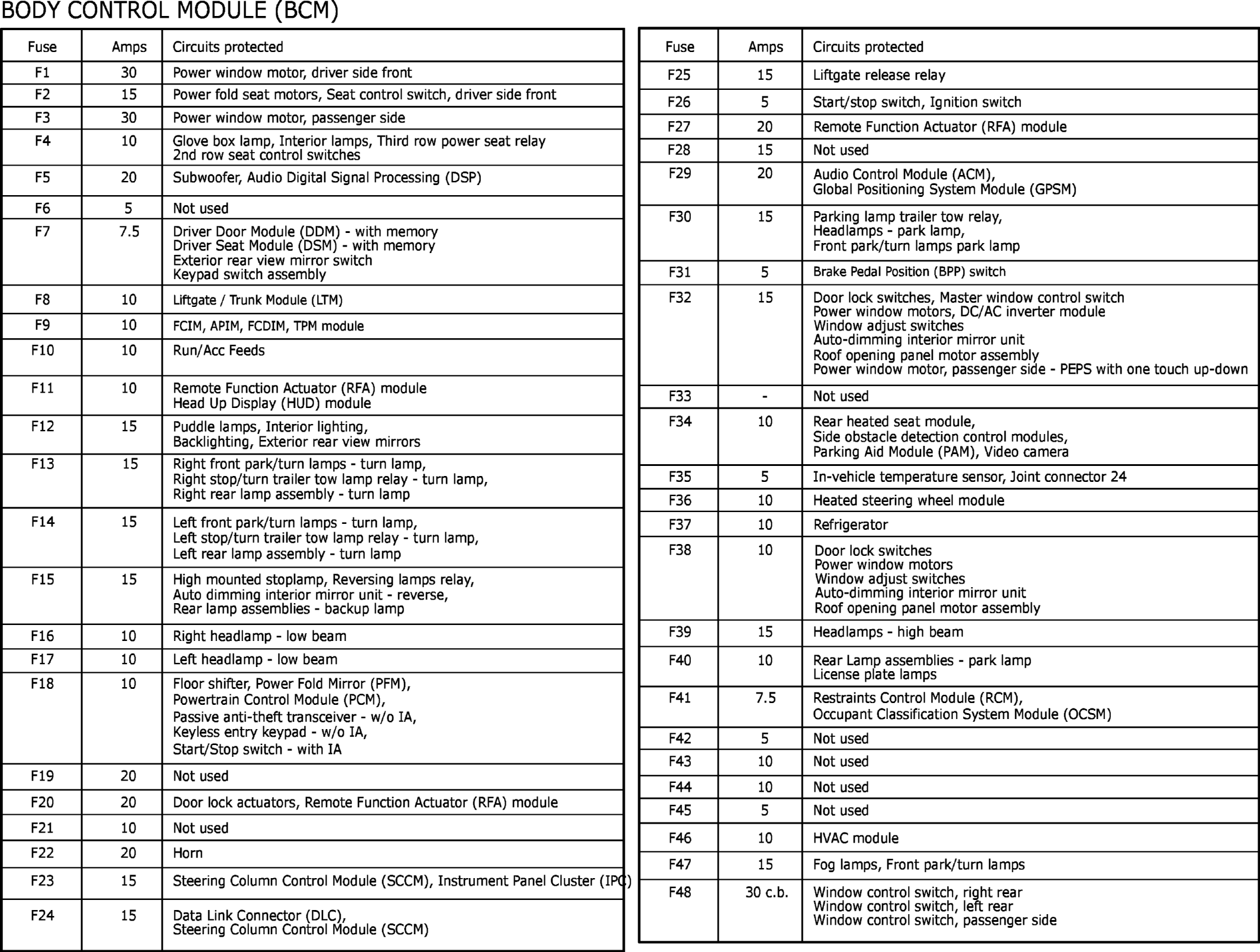

Fig 4: Body Control Module (BCM) Component Location Legend
GFDW64986Courtesy of FORD MOTOR COMPANY

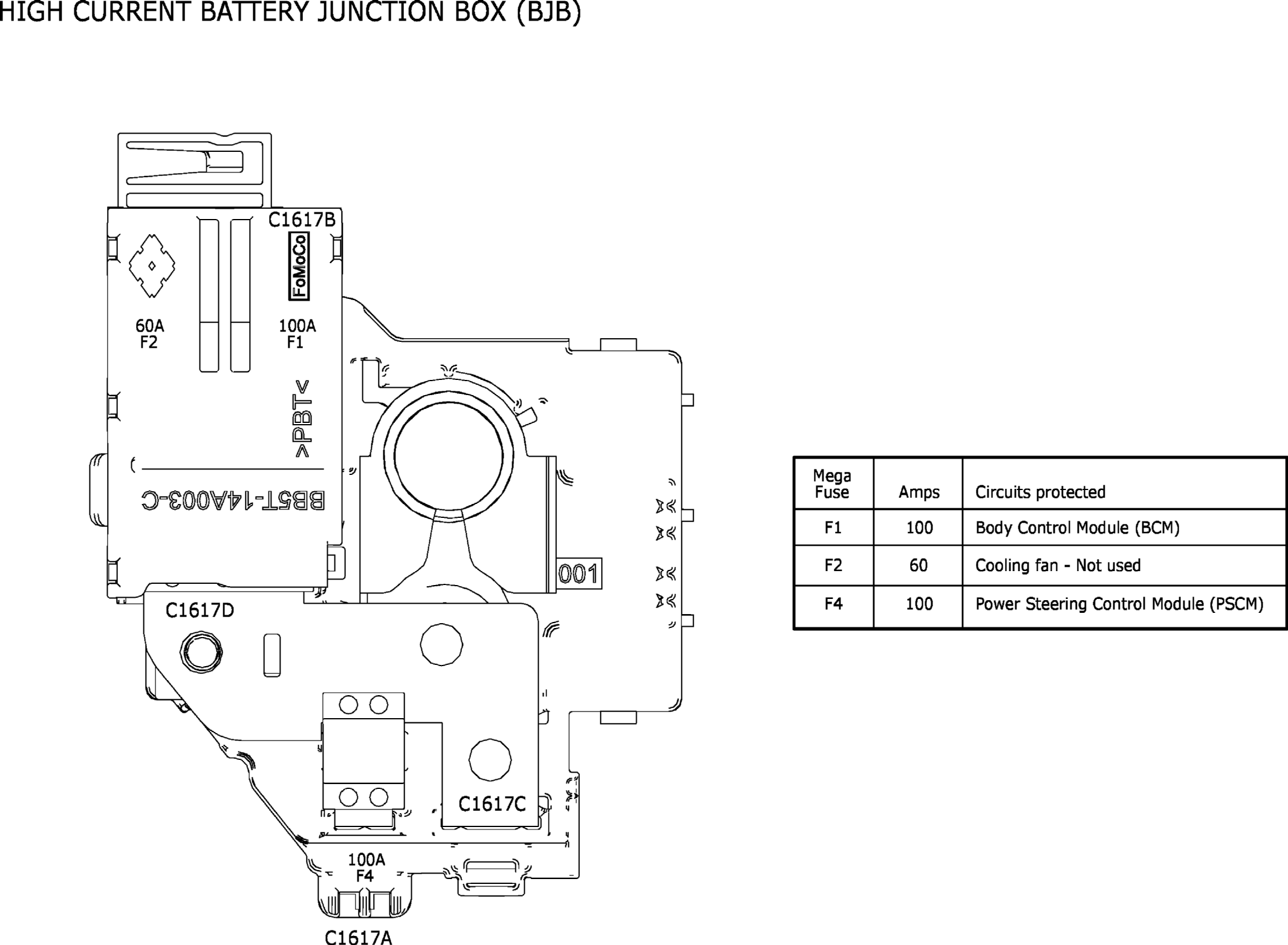

Fig 5: High Current Battery Junction Box (BJB) Component Location
GFDW64987Courtesy of FORD MOTOR COMPANY
