Connector Repair Procedures

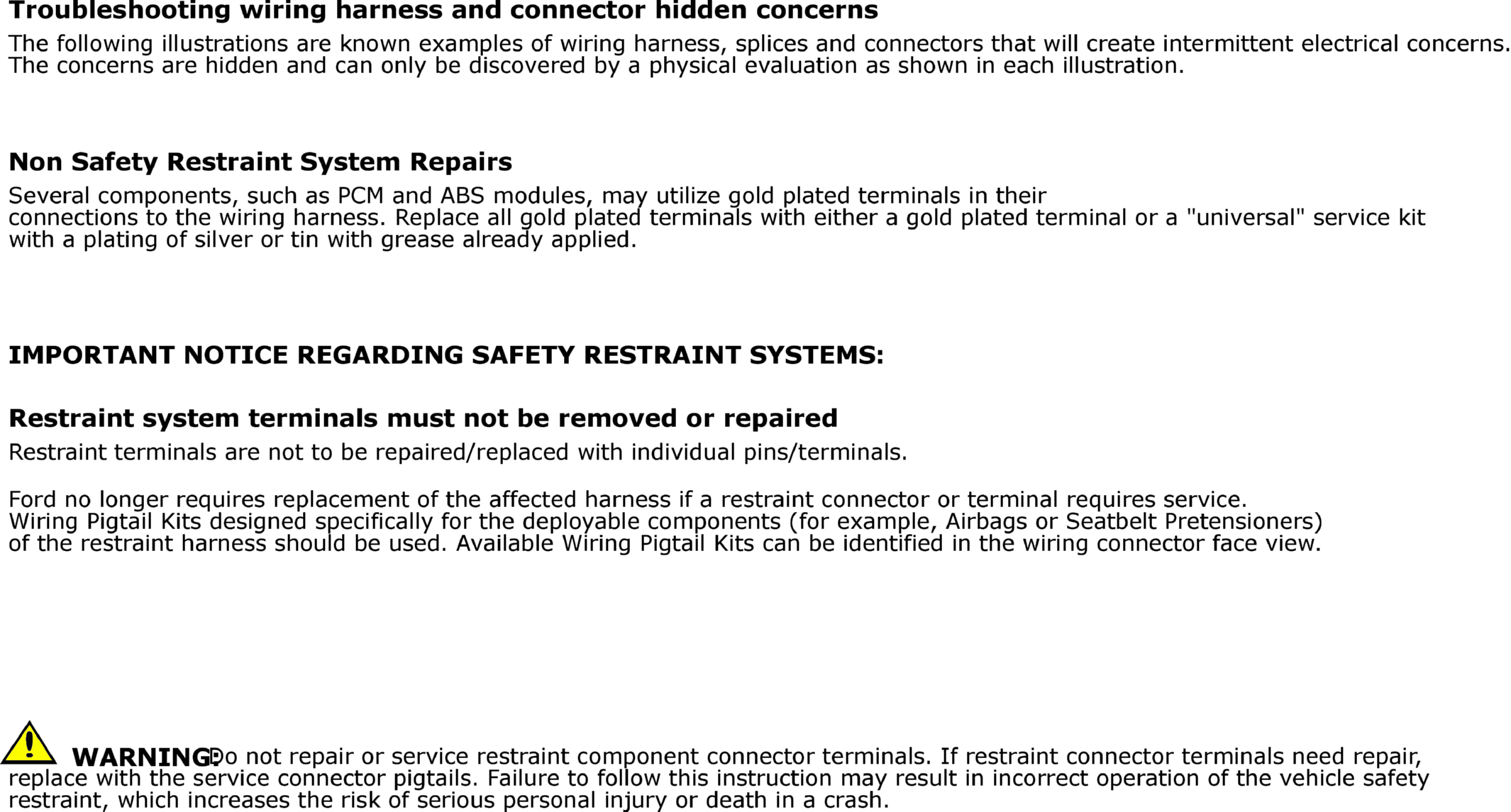

GFDW64969Courtesy of FORD MOTOR COMPANY

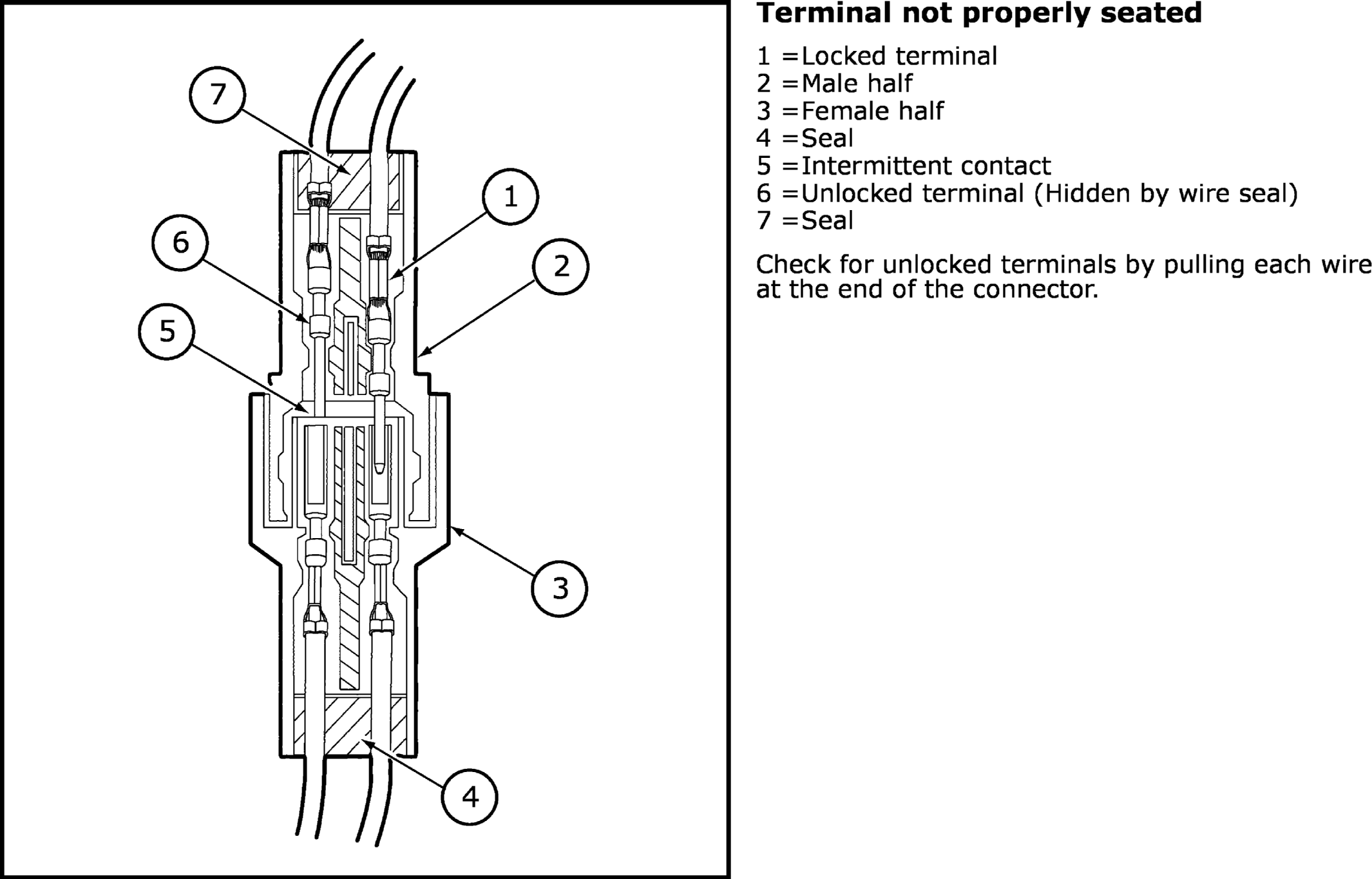

GFDW64970Courtesy of FORD MOTOR COMPANY

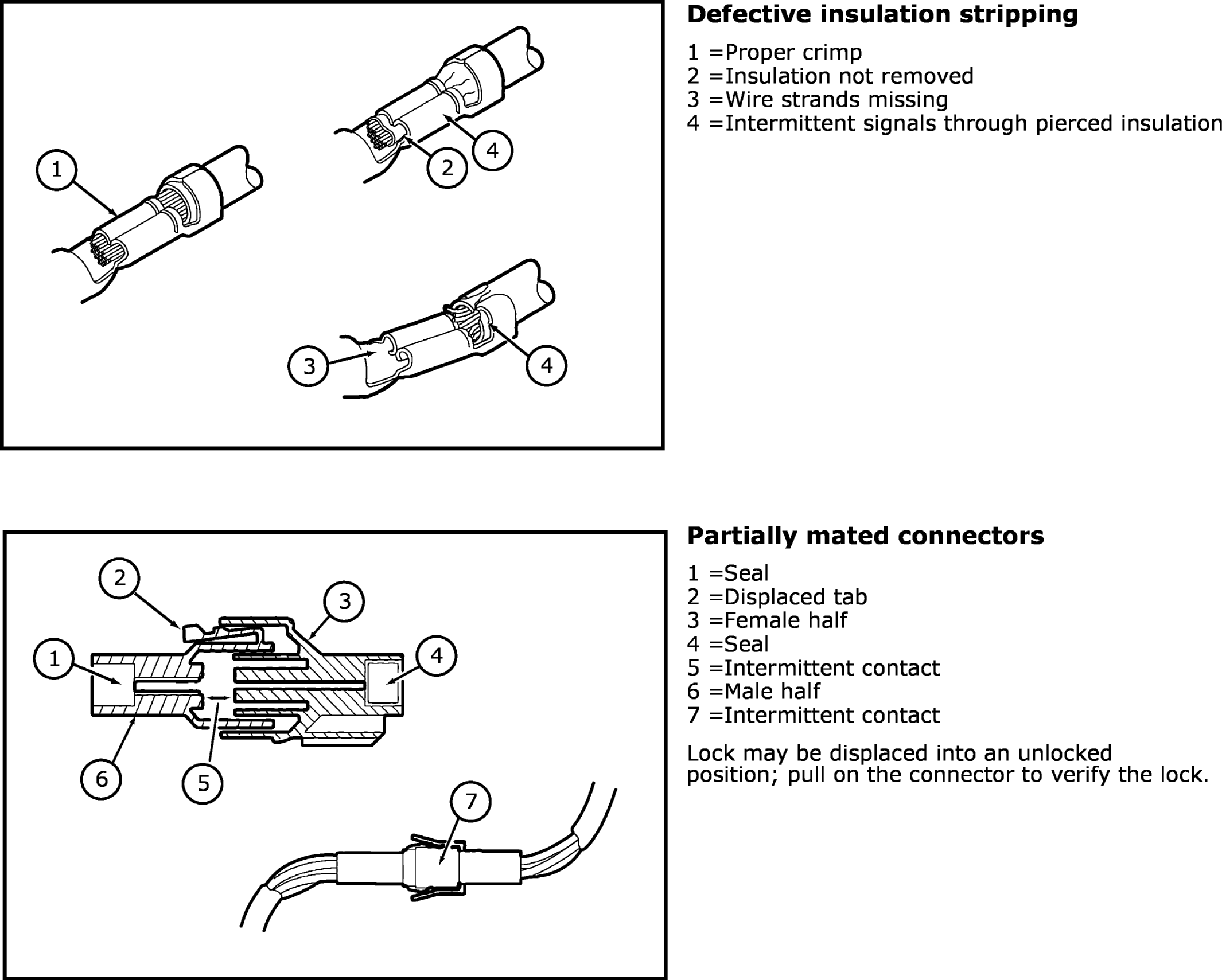

GFDW64971Courtesy of FORD MOTOR COMPANY

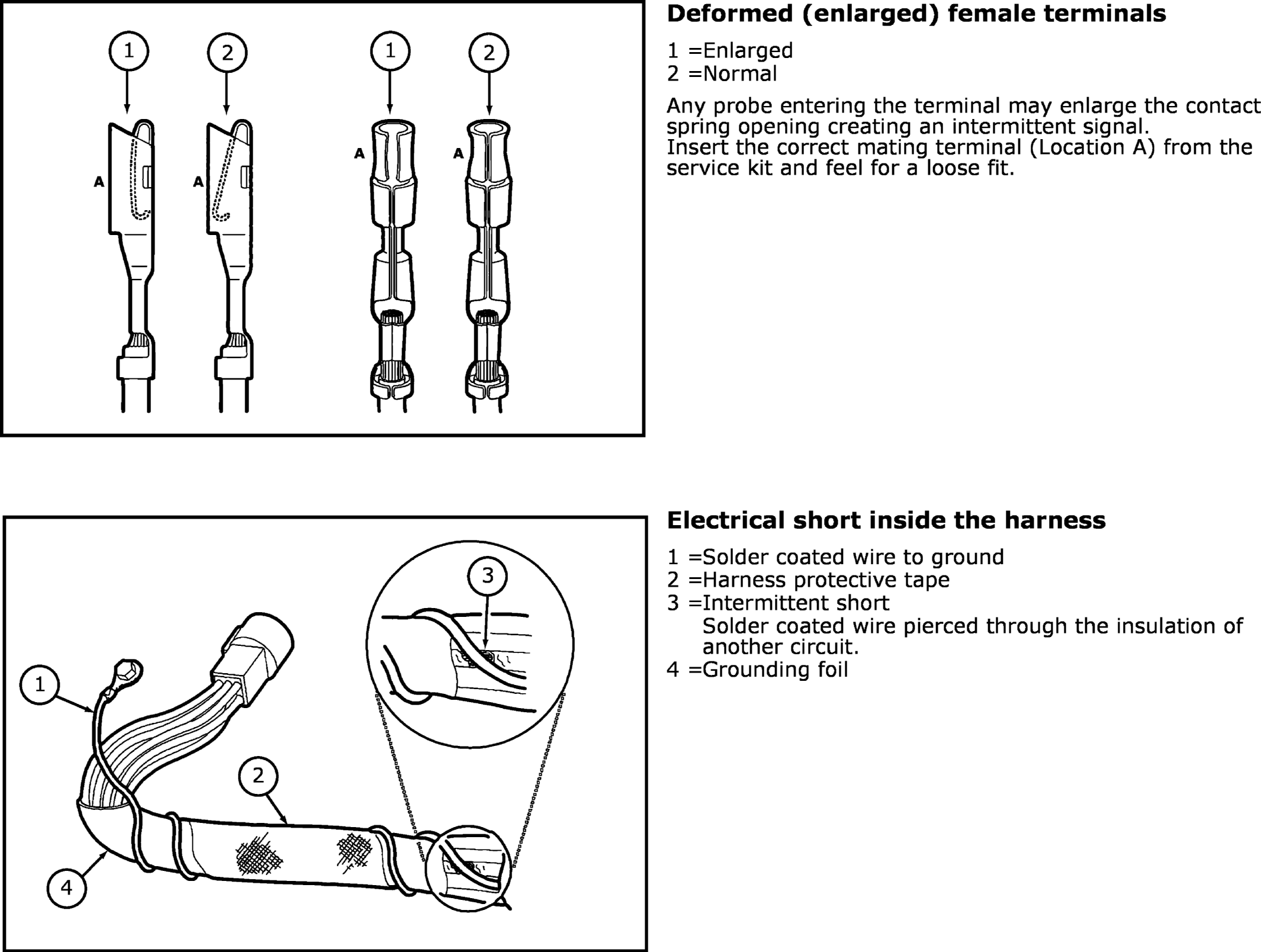

GFDW64972Courtesy of FORD MOTOR COMPANY

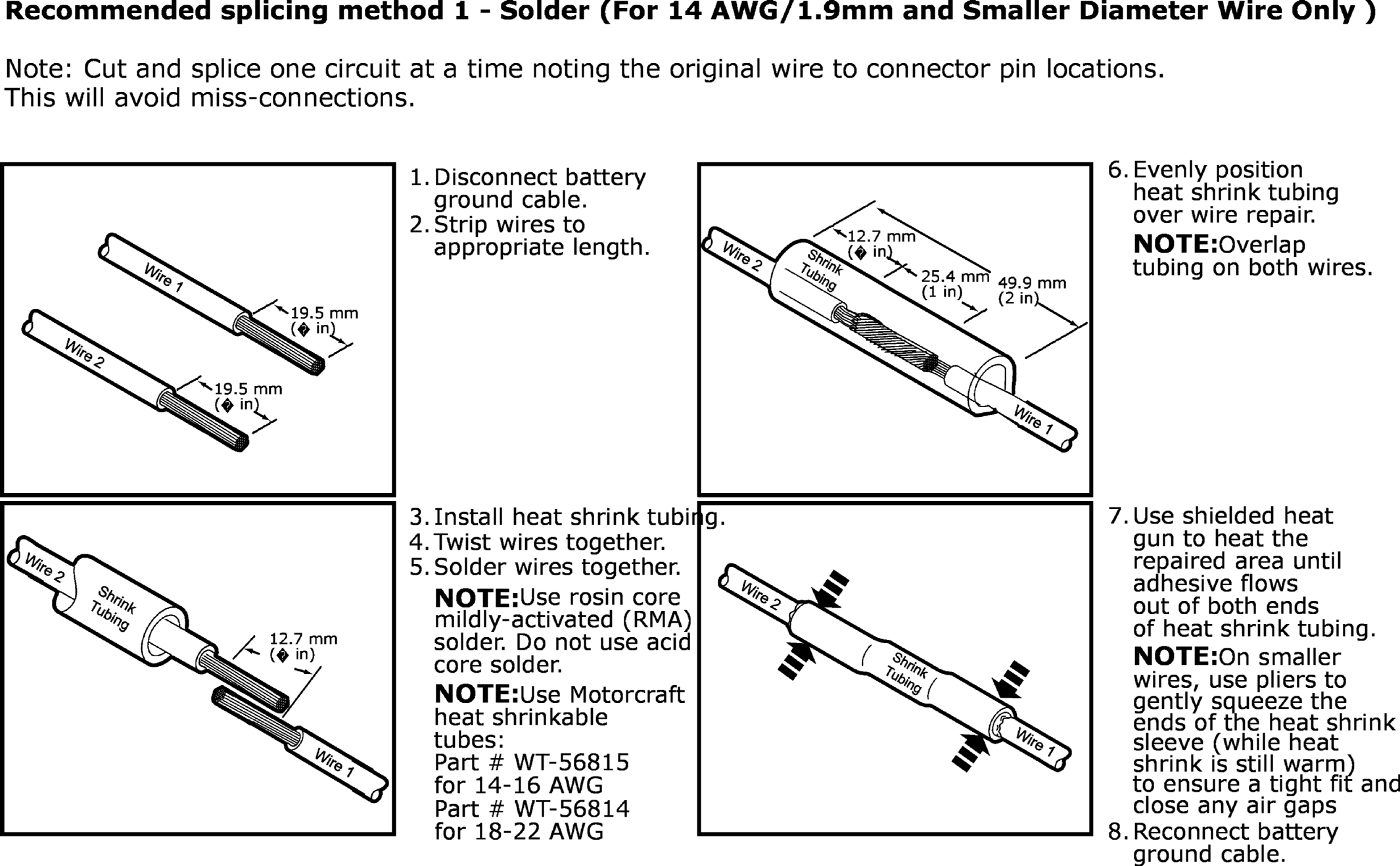

GFDW64973Courtesy of FORD MOTOR COMPANY

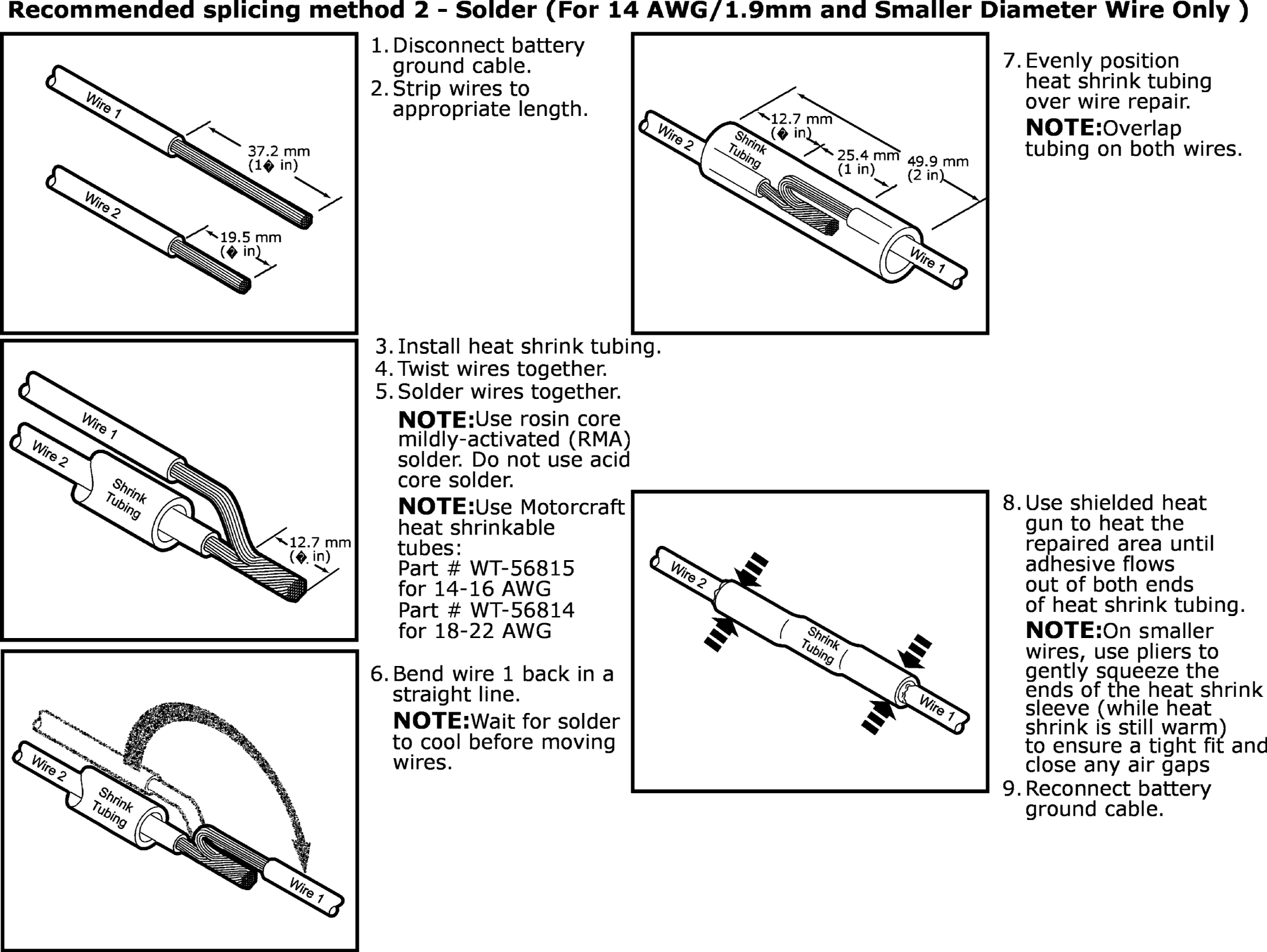

GFDW64974Courtesy of FORD MOTOR COMPANY

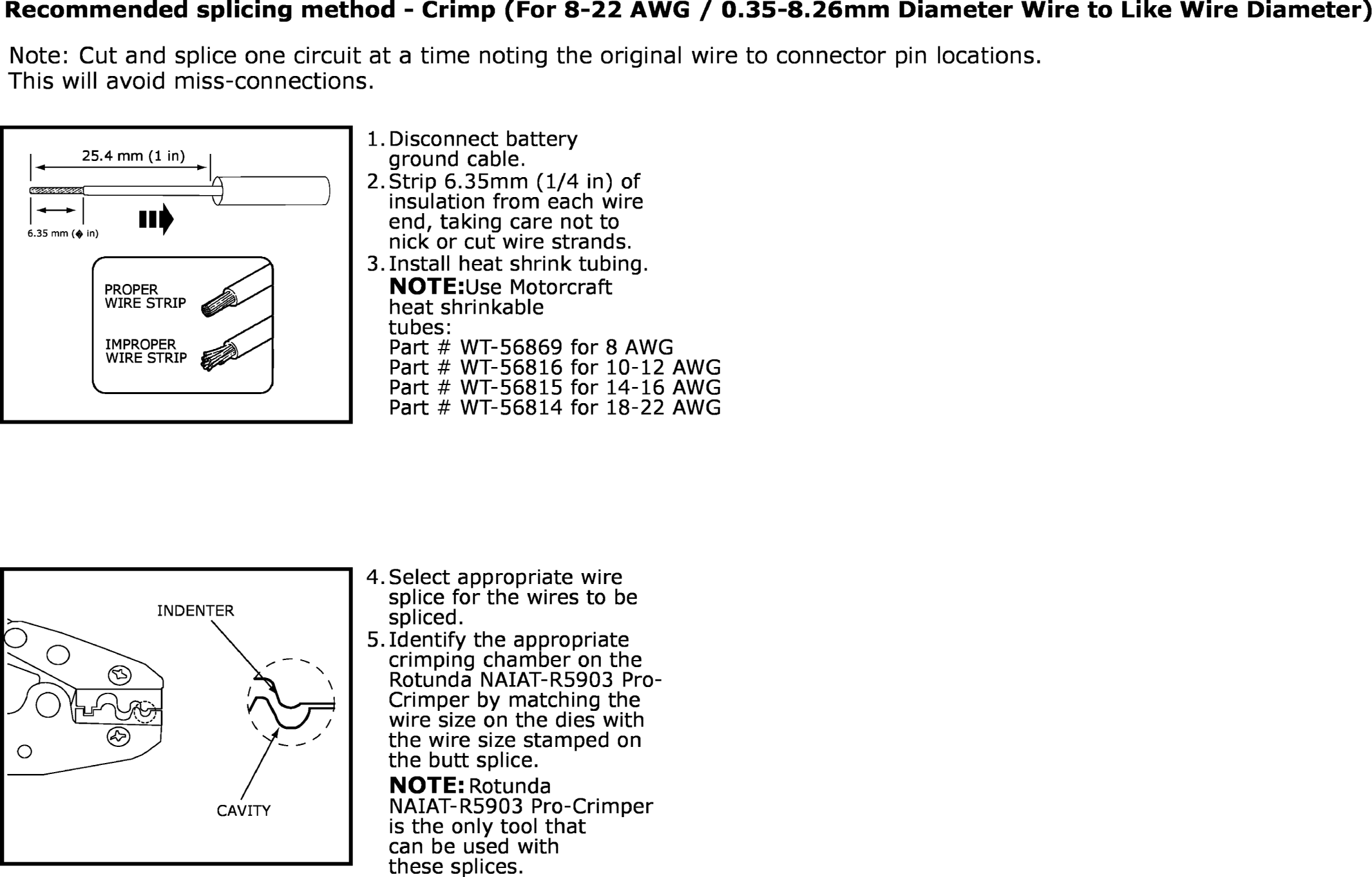

GFDW64975Courtesy of FORD MOTOR COMPANY

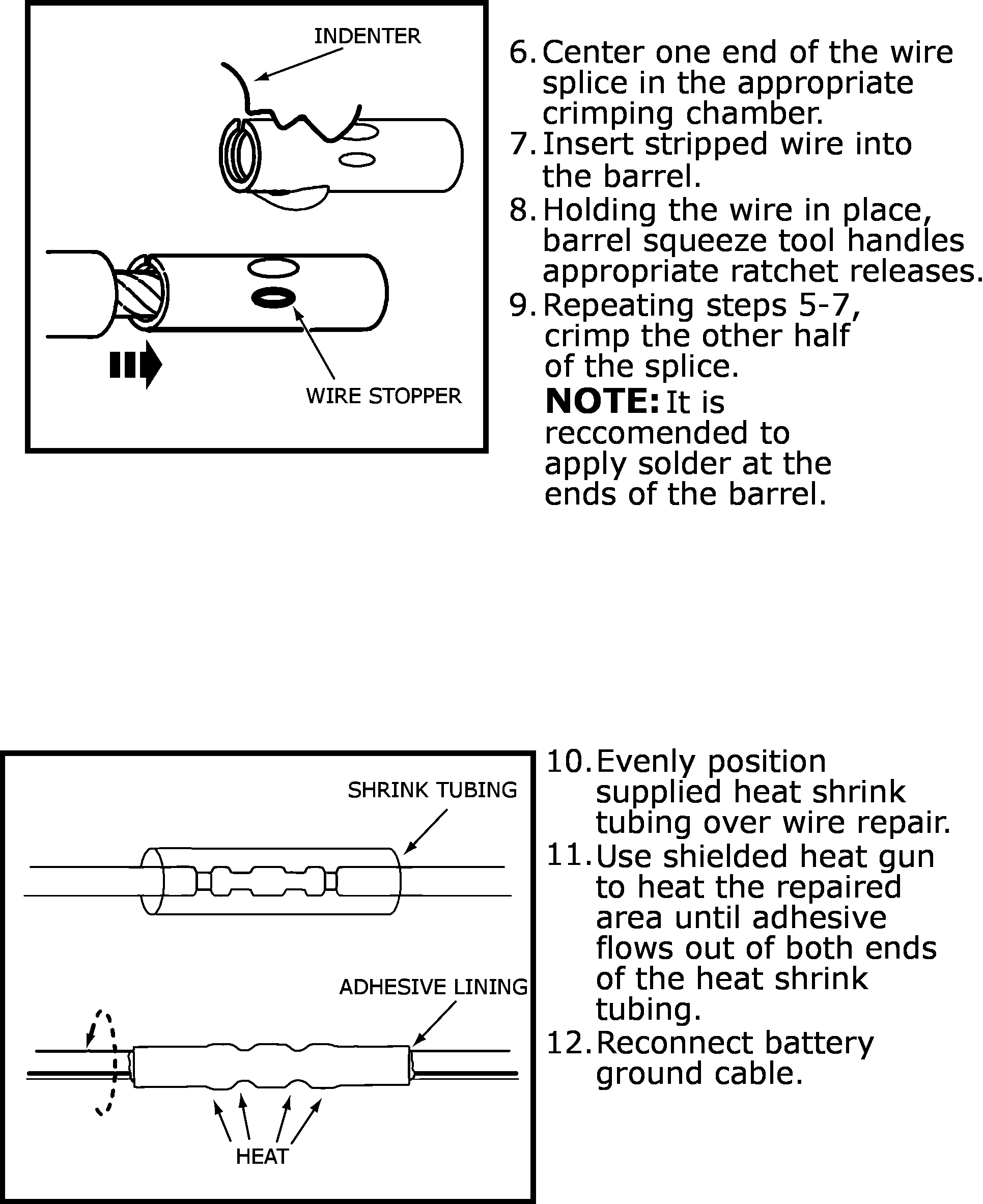

GFDW64976Courtesy of FORD MOTOR COMPANY

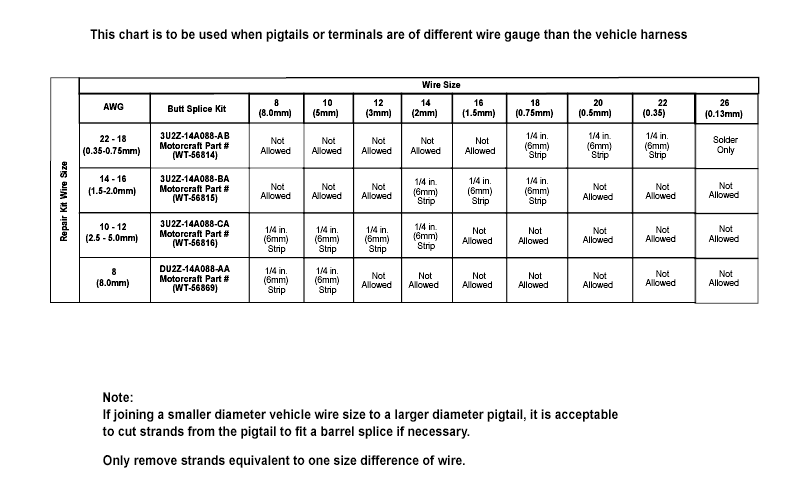

GFDW64977Courtesy of FORD MOTOR COMPANY
