Auxiliary Blower Motor: Notes

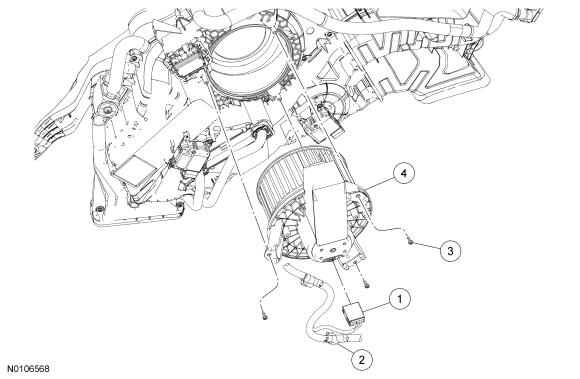

GFD58631Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Auxiliary blower motor electrical connector (part of 19949)
2 - Auxiliary wire harness clip (part of 19949) (2 required)
3 - Auxiliary blower motor screw (3 required)
4 19805 Auxiliary blower motor
