Seat - Second Row: Notes

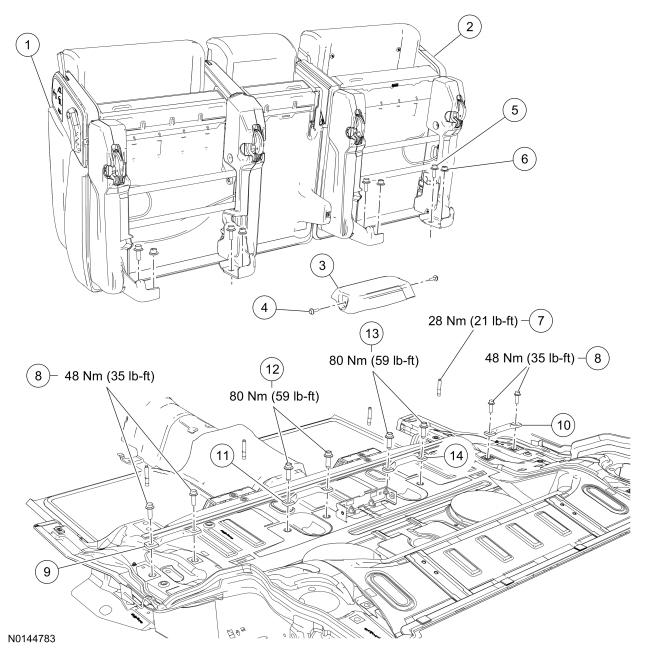

60/40 Percent Seats
| Item | Part Number | Description |
|---|---|---|
| 1 | - | 60 percent seat assembly |
| 2 | - | 40 percent seat assembly |
| 3 | 04752 | Console bracket cover |
| 4 | W706862 | Screw (2 required) |
| 5 | W708175 | Seat-to-floor bolt (4 required) |
| 6 | N802068 | Seat-to-floor nut (4 required) |
| 7 | W708166 | Floor stud (4 required) |
| 8 | W505275 | Outboard striker-to-floor bolts (4 required) |
| 9 | 78613A64 | LH outboard striker |
| 10 | 74613A64 | RH outboard striker |
| 11 | 74613B96 | LH inboard striker |
| 12 | W714306 | LH inboard striker-to-floor bolts (2 required) |
| 13 | W505285 | RH inboard striker-to-floor bolts (2 required) |
| 14 | 74613B96 | RH inboard striker |

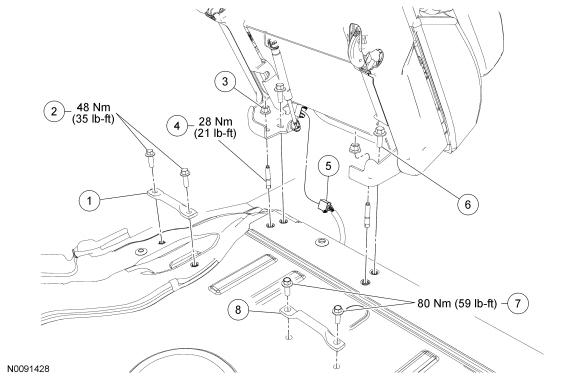

40 Percent Power-Fold Seat
NOTE:
LH seat shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 78613A64 | LH outboard striker |
| 2 | W505275 | LH outboard striker-to-floor bolts (2 required) |
| 3 | N802068 | Seat-to-floor nuts (2 required) |
| 4 | W708166 | Floor studs (2 required) |
| 5 | - | Power-fold seat electrical connector |
| 6 | W708175 | Seat-to-floor bolts (4 required) |
| 7 | W714306 | LH inboard striker-to-floor bolts (2 required) |
| 8 | 74613B96 | LH inboard striker |
