Head Restraint Guide Sleeve: Installation

  1. 1.

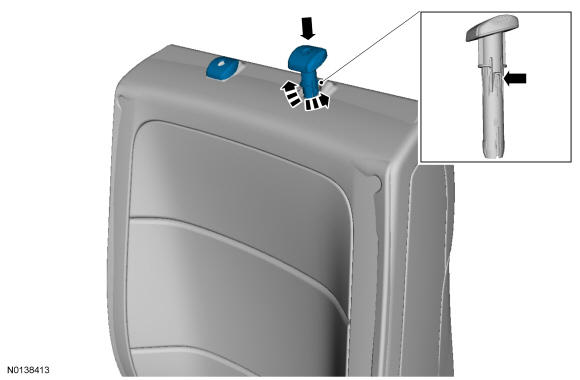

GFD59628Courtesy of FORD MOTOR COMPANY

  1. 2.

    NOTE: Striking effort must be hard enough to snap the head restraint guide sleeve retainer in place in the backrest frame.
GFD59629Courtesy of FORD MOTOR COMPANY
