Front Control/Display Interface Module (FCDIM)

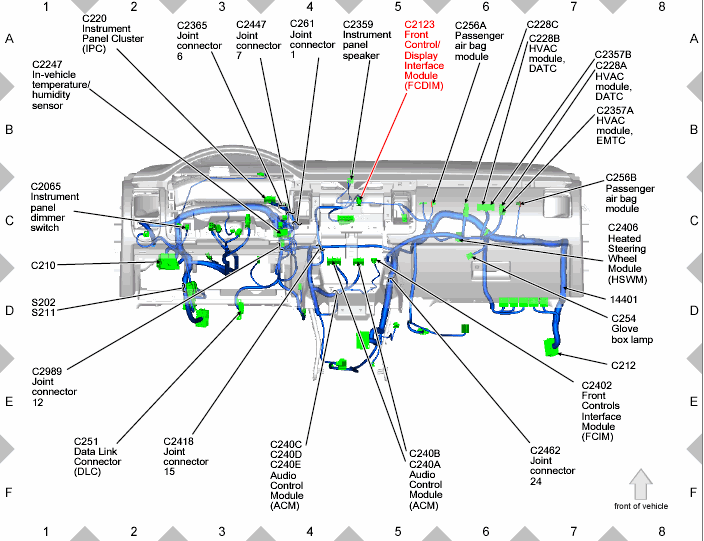

Fig 1: Front Control/Display Interface Module (FCDIM) Component Location Chart

G00571482

Courtesy of FORD MOTOR COMPANY
