Front Lower Arm: Installation
- 1.

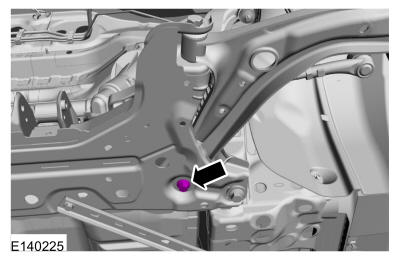

Only tighten the bolts finger tight at this stage. Install the lower arm and the new lower arm bolts.
- 2.

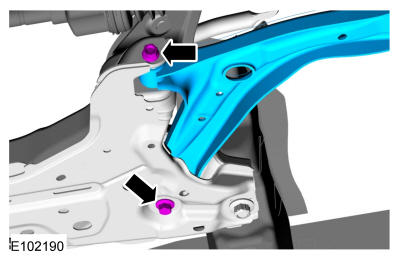

Tighten the new rearward lower arm bolt in 2 stages.Torque:
Stage 1: 46 lb.ft (63 Nm)
Stage 2: 180 °
- 3.

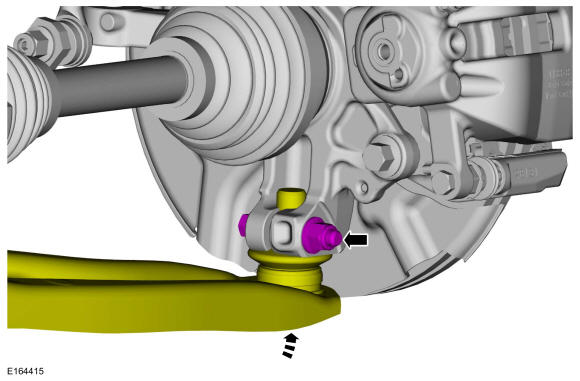

Attach the lower arm to the wheel knuckle and install the new ball joint pinch bolt and nut.Torque: 38 lb.ft (52 Nm)
- 5.

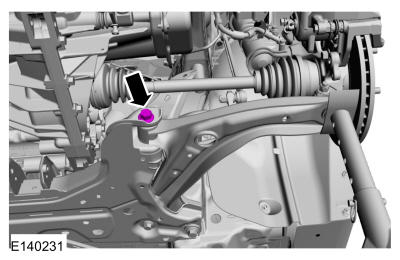

Tighten the new lower arm forward bolt in 2 stages.Torque:
Stage 1: 46 lb.ft (63 Nm)
Stage 2: 180 °
- 6.

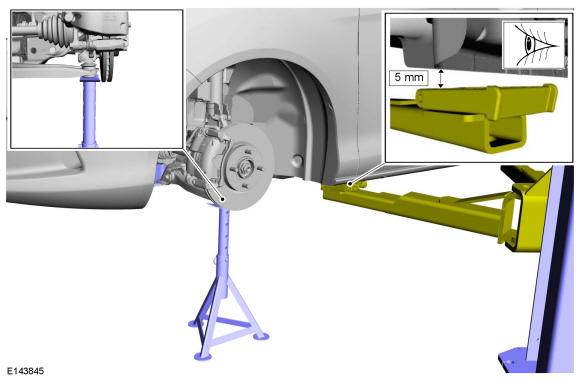

Install the wheel and tire. Refer to: Wheel and Tire .
- 7.
Check and if necessary, adjust front toe. Refer to: Front Toe Adjustment .
