Fuse And Relay Location
Fuse And Relay Location

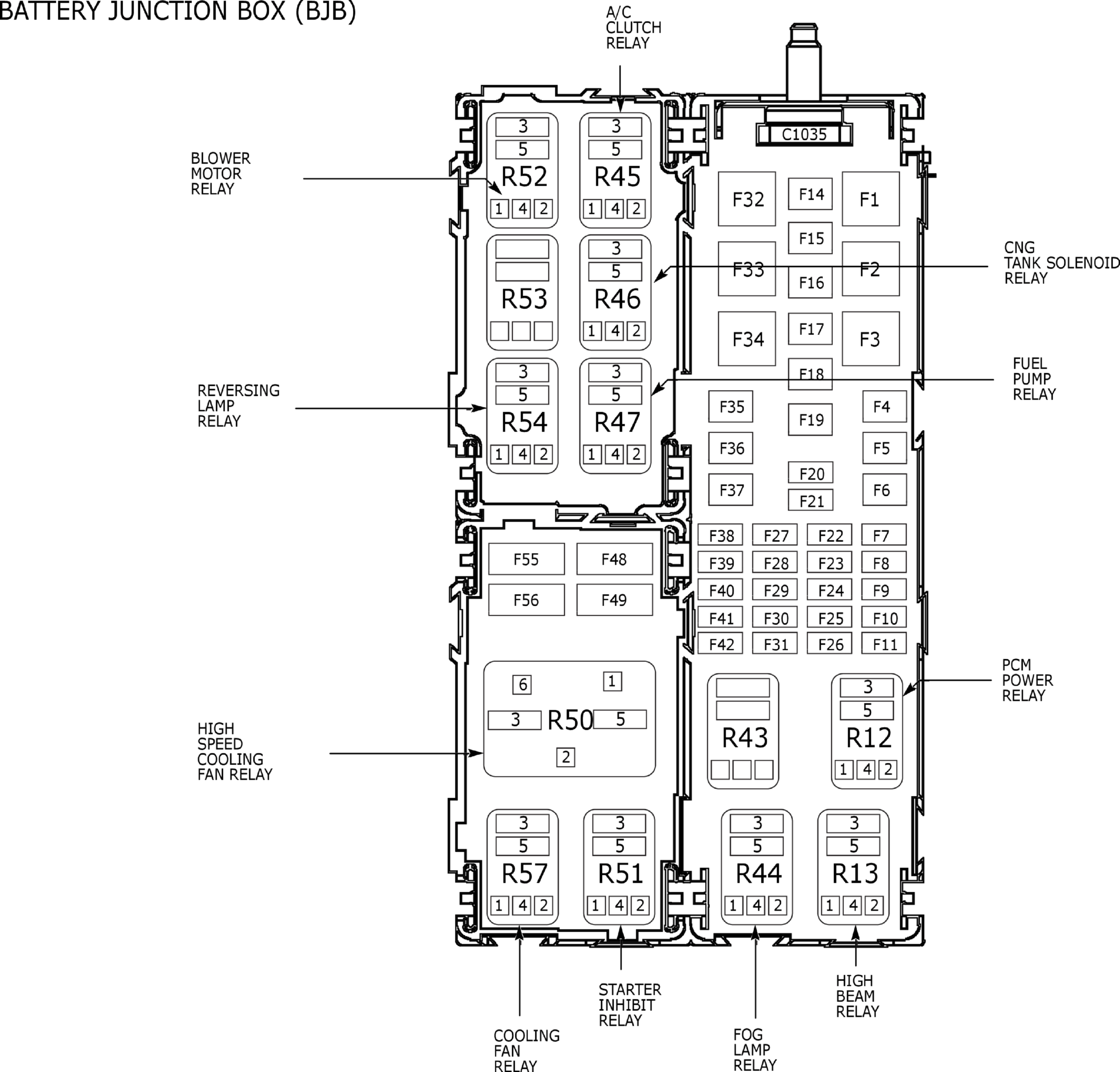

Fig 1: Battery Junction Box Component Location
Courtesy of FORD MOTOR COMPANY

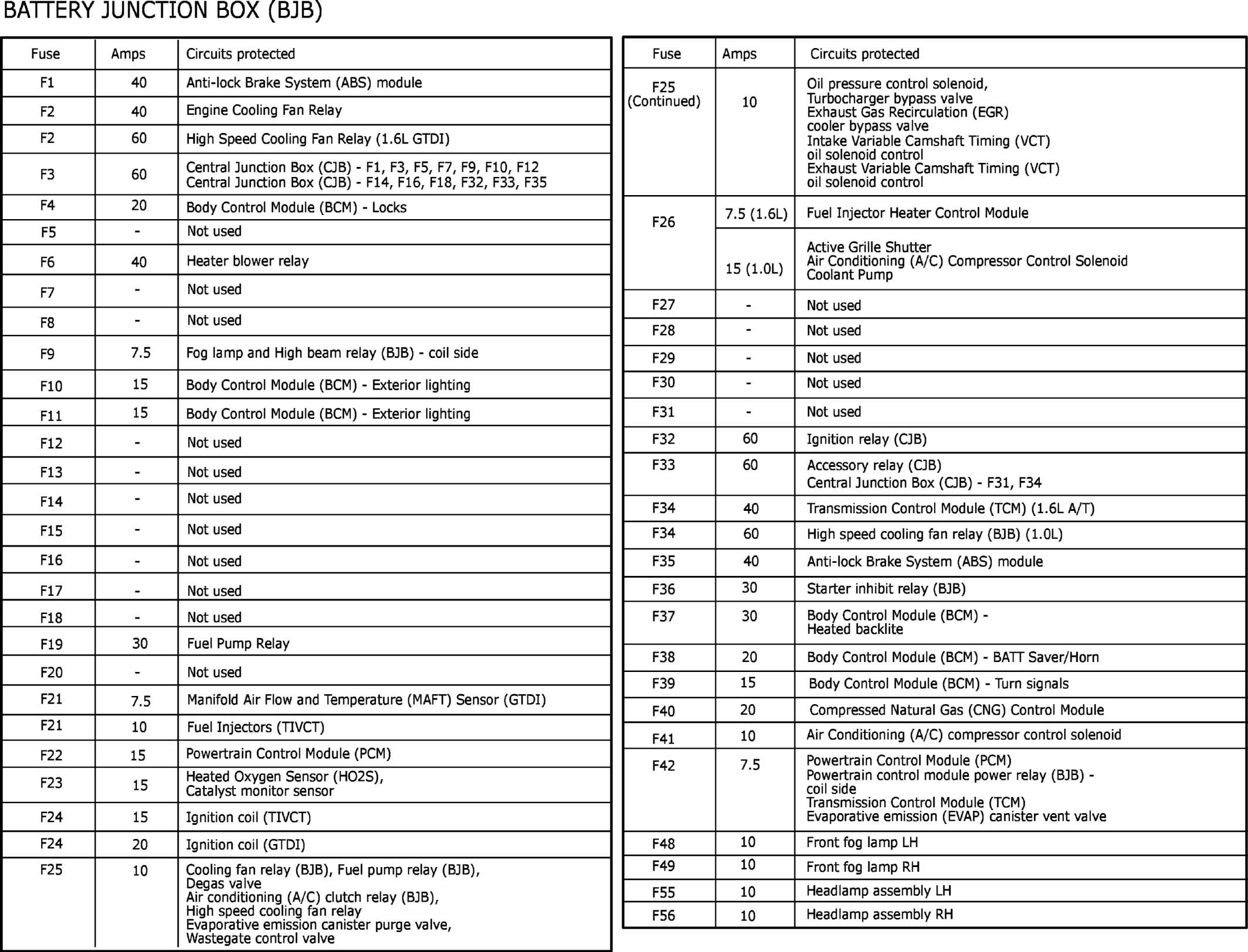

Fig 2: Battery Junction Box Component Location Legend
Courtesy of FORD MOTOR COMPANY

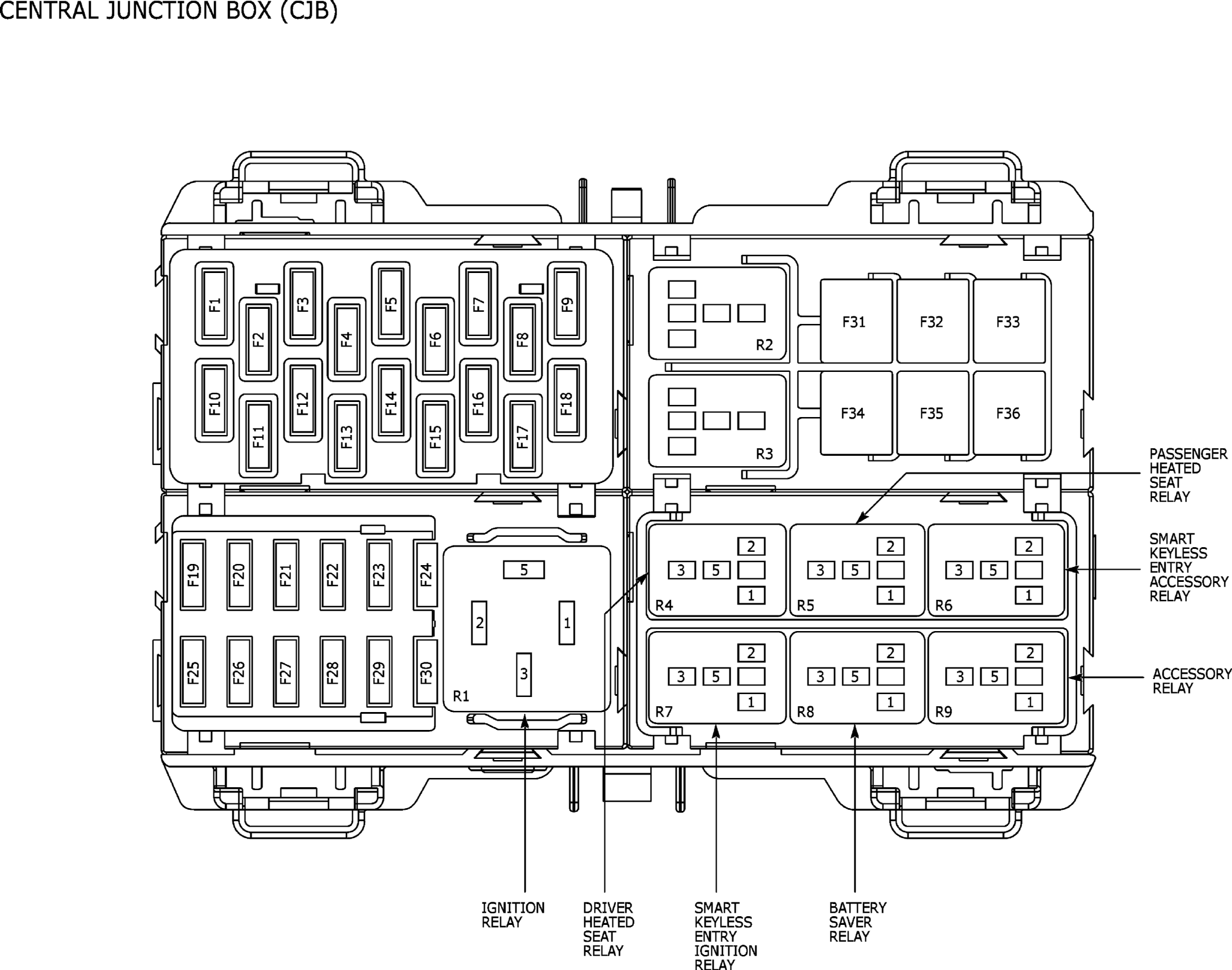

Fig 3: Central Junction Box Component Location
Courtesy of FORD MOTOR COMPANY

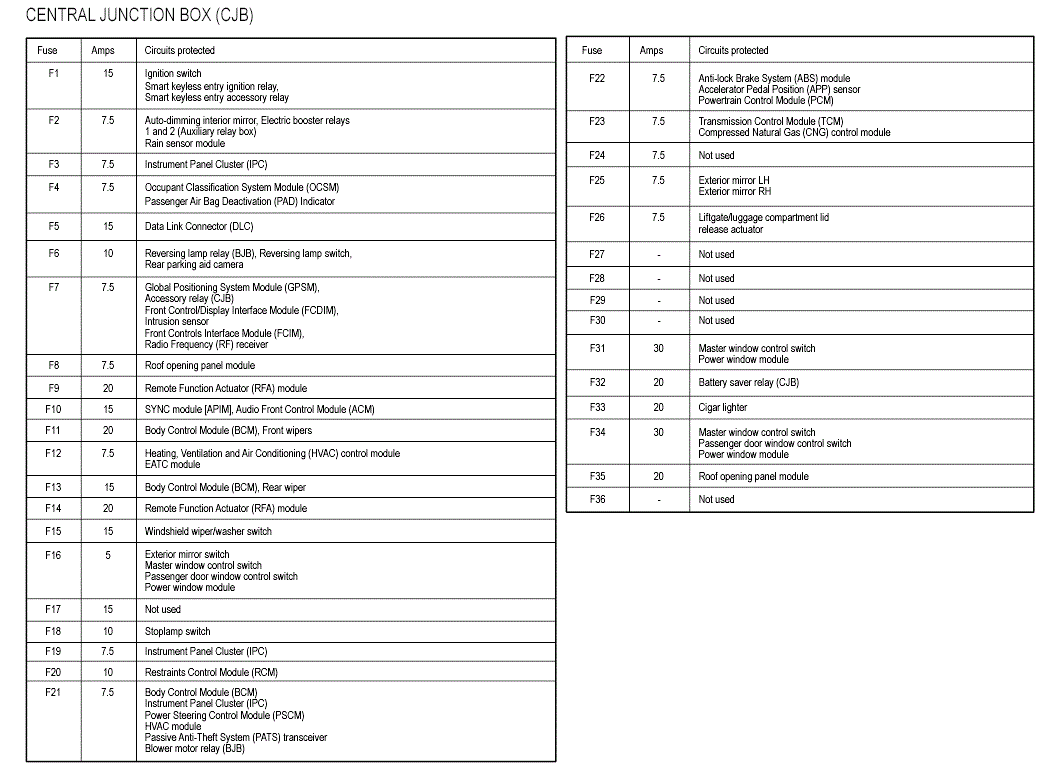

Fig 4: Central Junction Box Component Location Legend
Courtesy of FORD MOTOR COMPANY

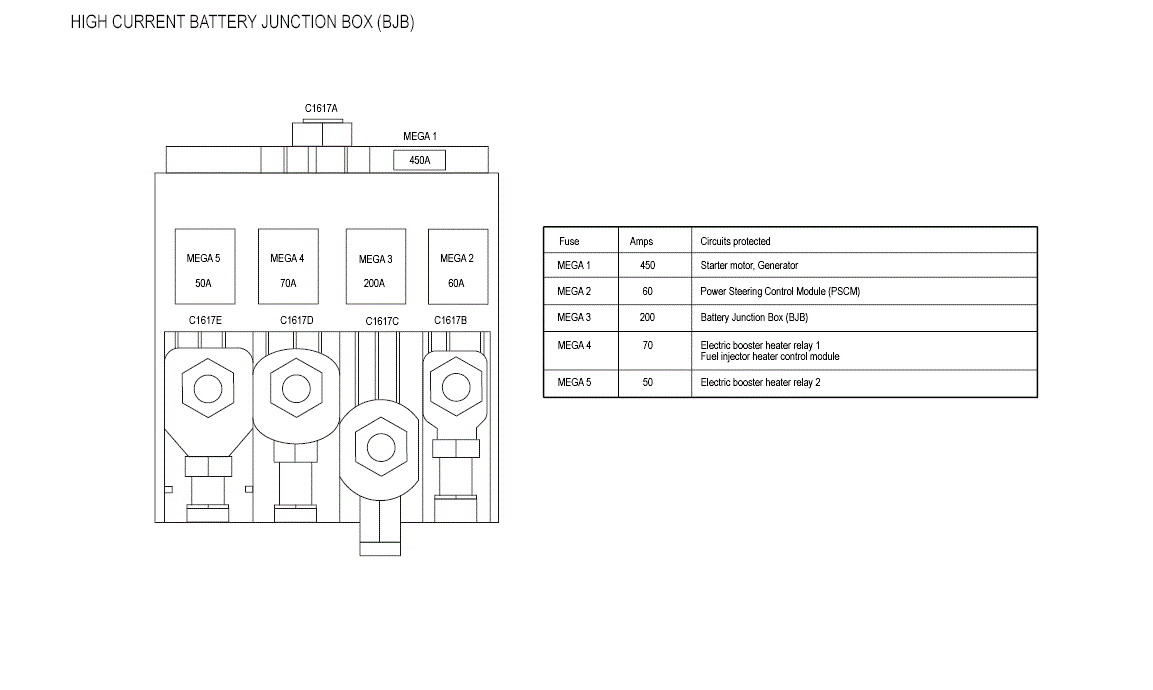

Fig 5: High Current Battery Junction Box Component Location and Legend
Courtesy of FORD MOTOR COMPANY

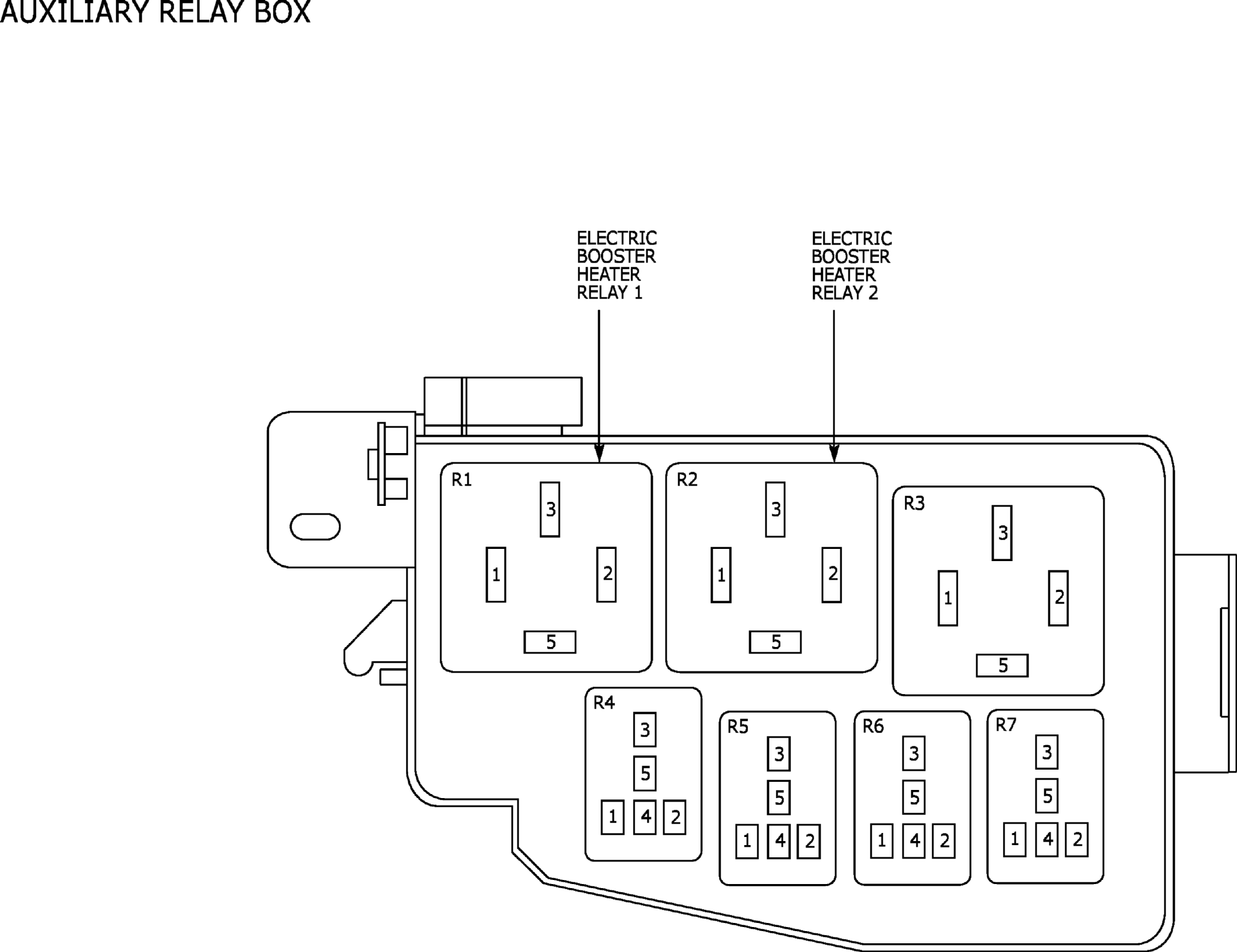

Fig 6: Auxiliary Relay Box Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
