OEM Electrical Wiring Diagram Introduction: Introduction

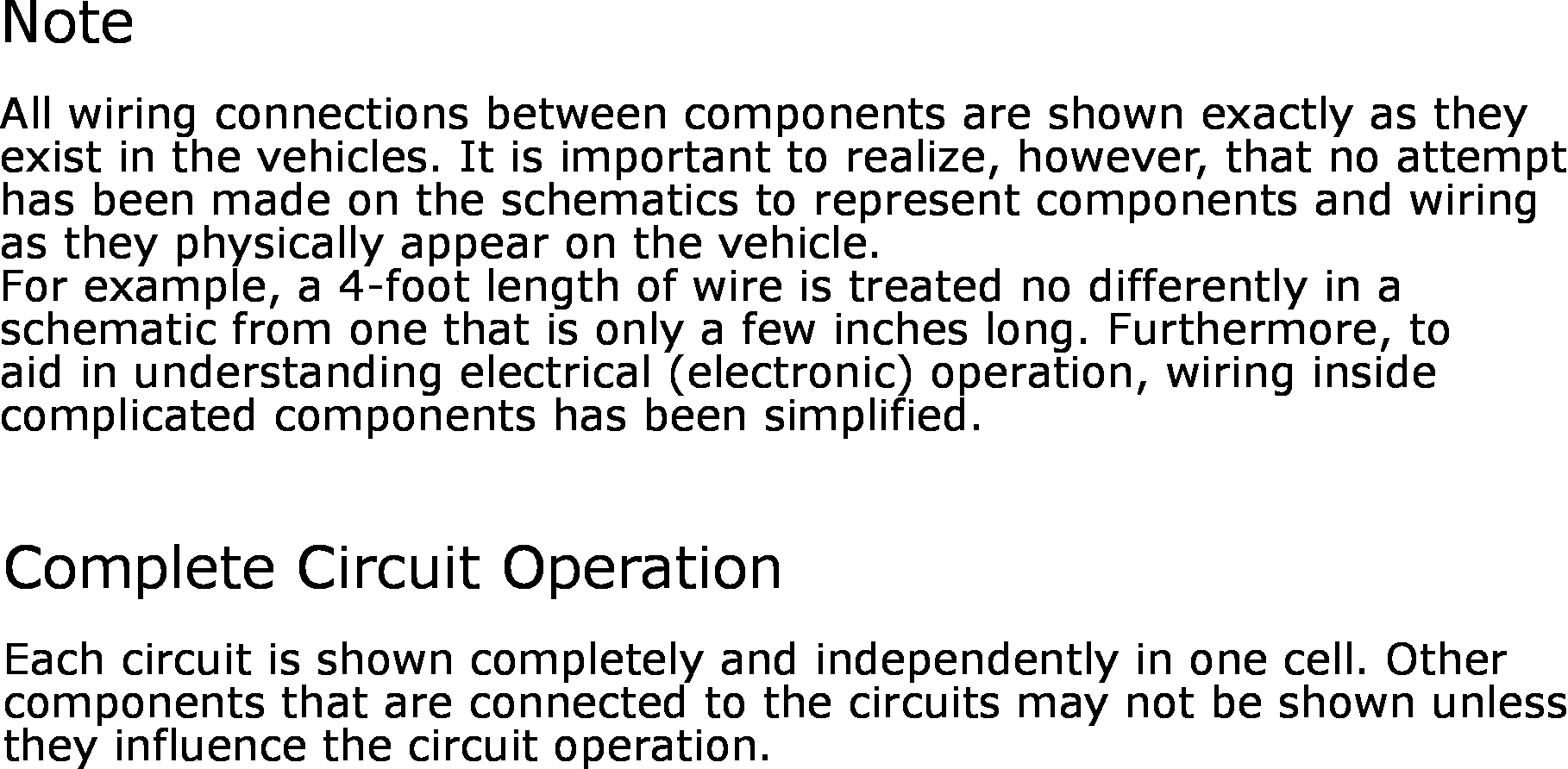

GFDW60819Courtesy of FORD MOTOR COMPANY

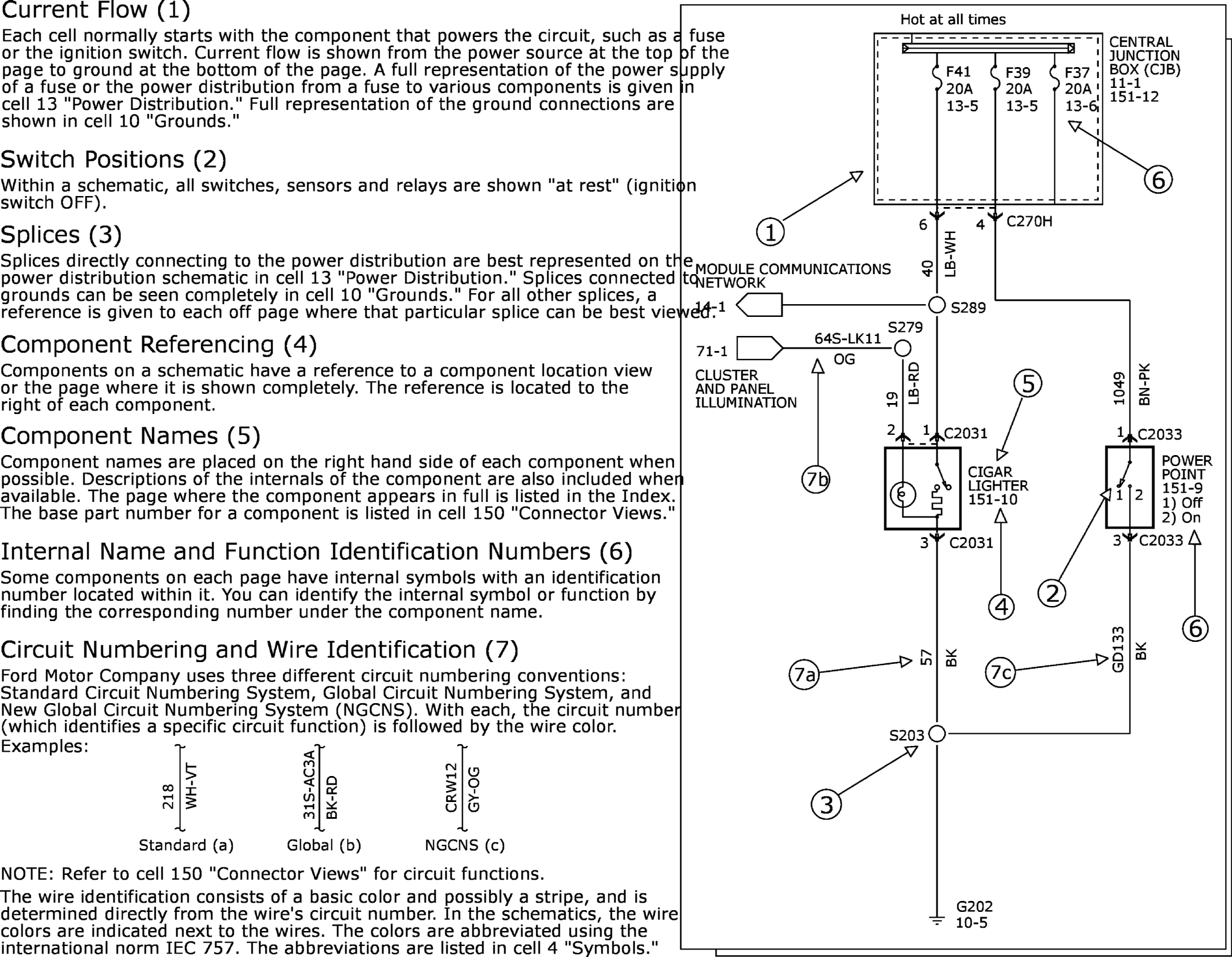

GFDW60820Courtesy of FORD MOTOR COMPANY

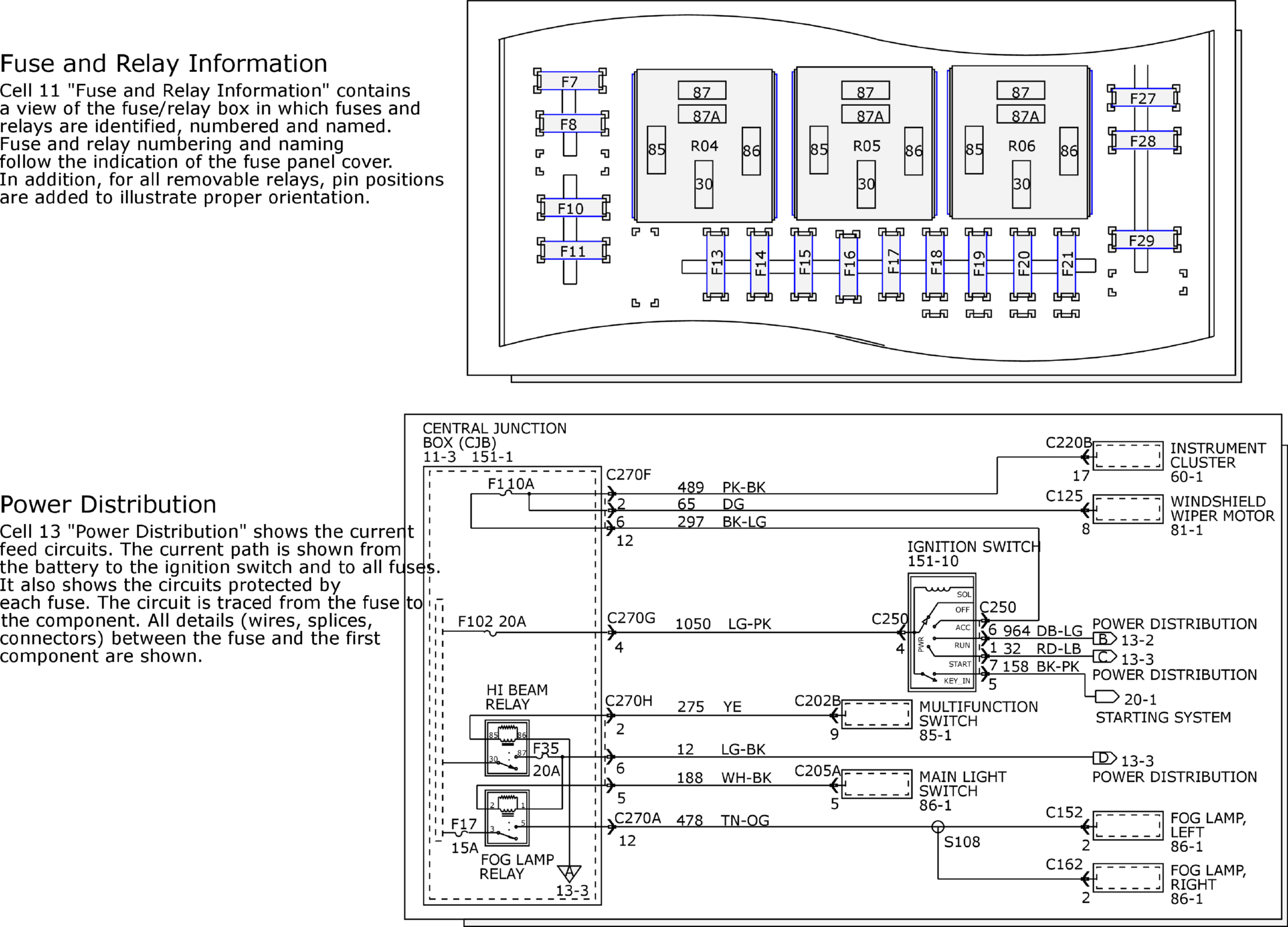

GFDW60821Courtesy of FORD MOTOR COMPANY

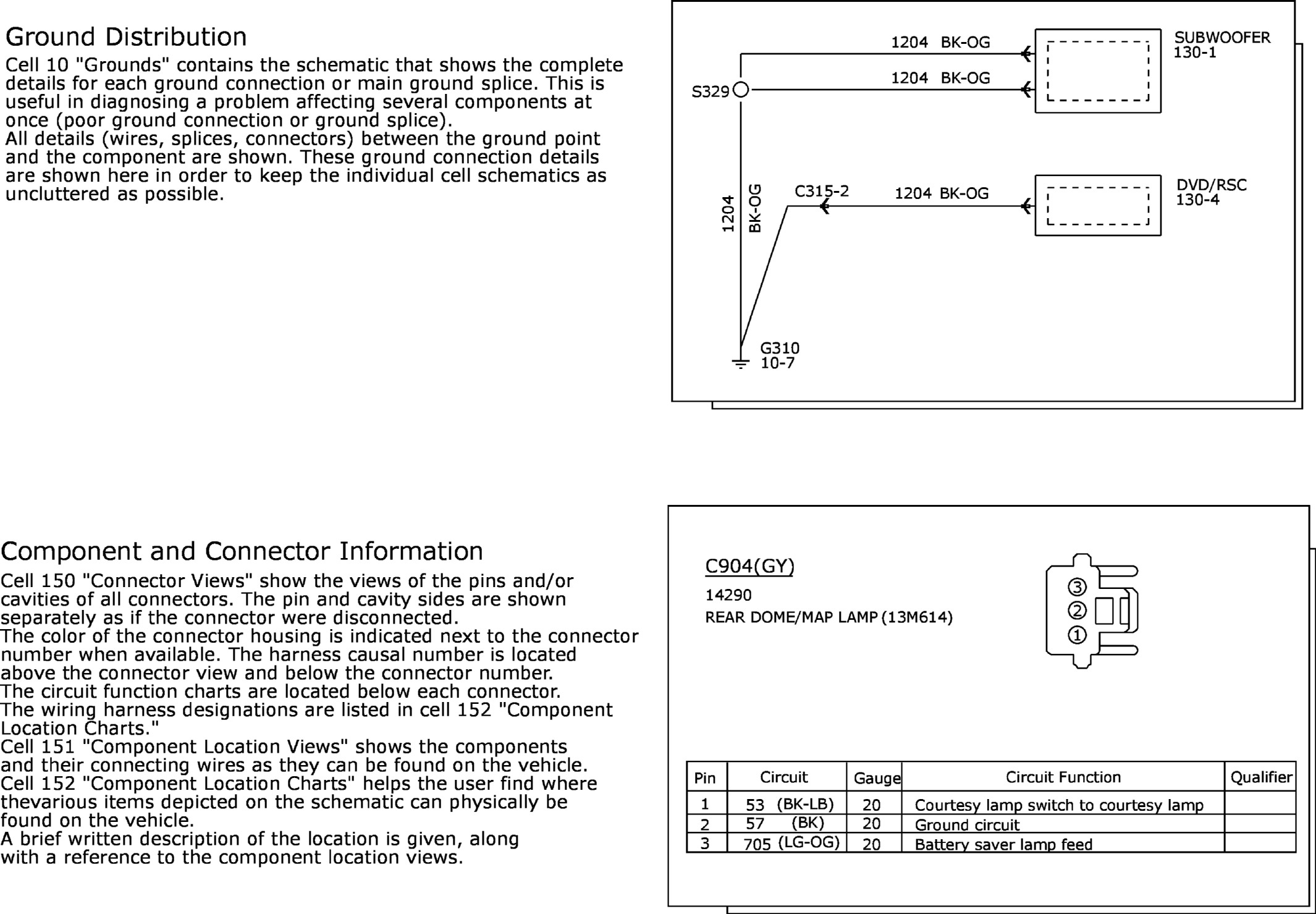

GFDW60822Courtesy of FORD MOTOR COMPANY

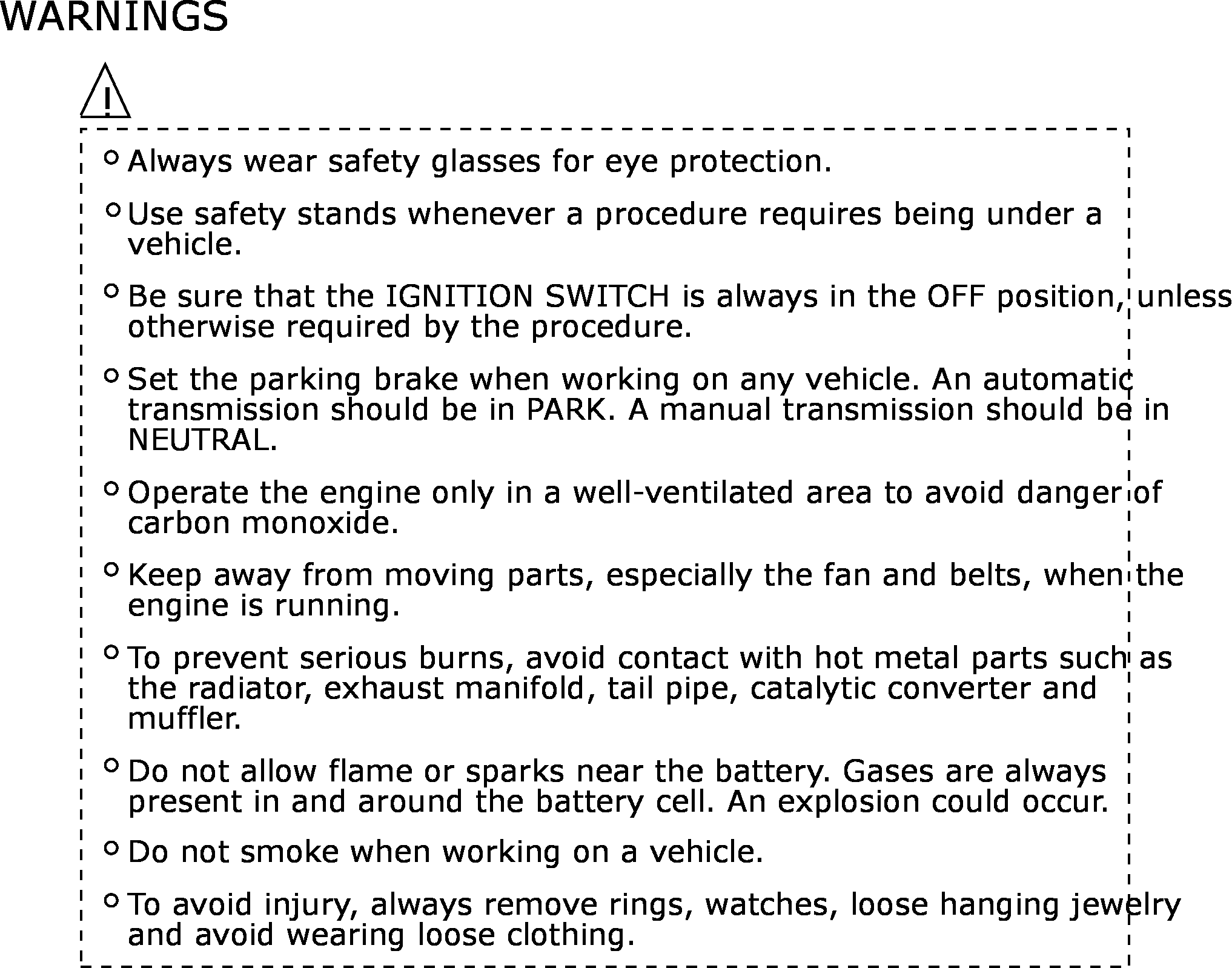

GFDW60823Courtesy of FORD MOTOR COMPANY
