Connector End View (C212) - INLINE
InlineC212
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

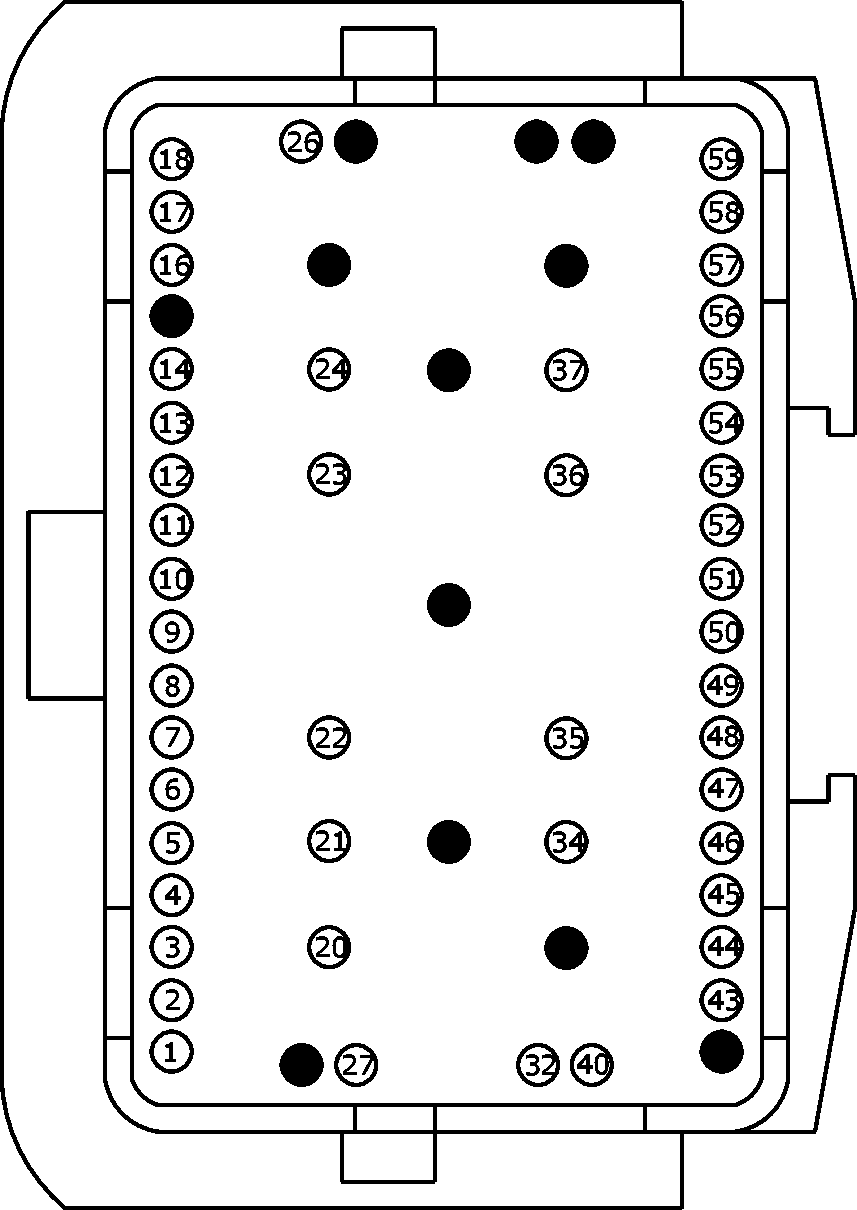

MALE
Harness 14A005

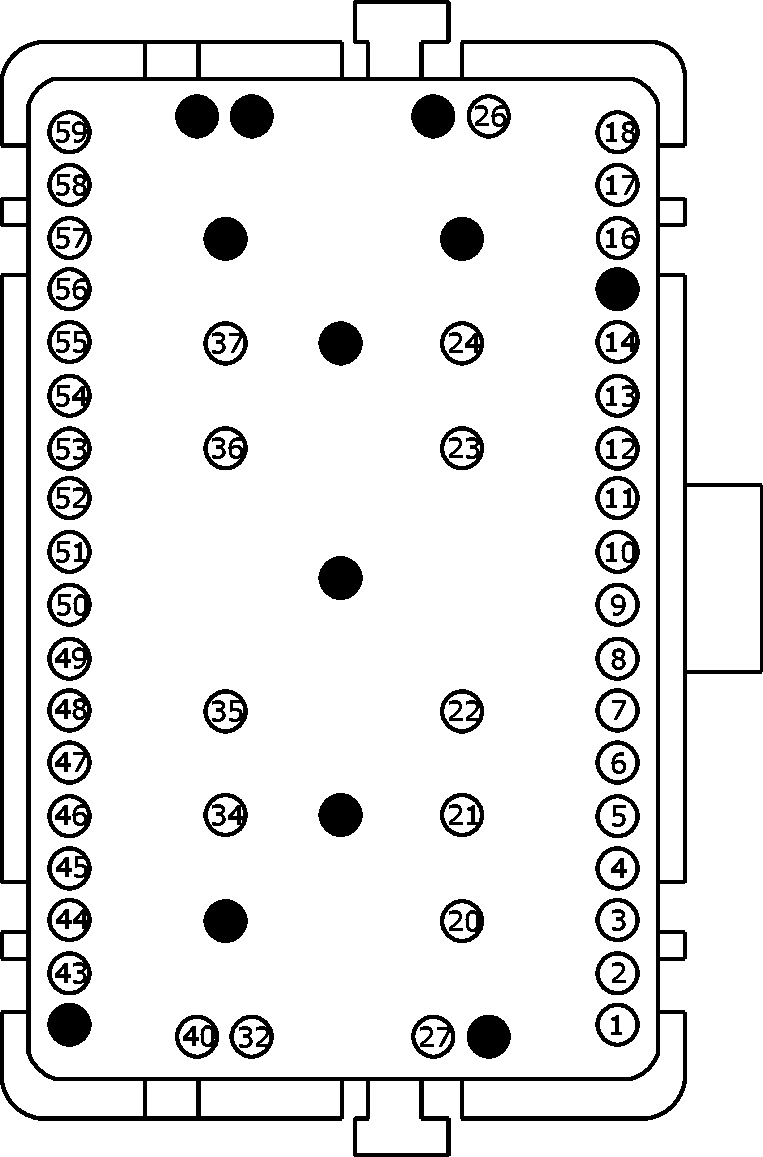

FEMALE
Harness 14K024
| Pin | Circuit | Gauge | Qualifier |
| 1 | CDC33 (VT-GN) | 18 | |
| 2 | CBP19 (BN-WH) | 22 | |
| 3 | CDC32 (BN-YE) | 18 | |
| 4 | CBP20 (YE-VT) | 20 | |
| 5 | CBP21 (BU-GY) | 20 | |
| 6 | CBP24 (VT-GN) | 20 | |
| 7 | SBP01 (RD) | 18 | |
| 8 | CBP04 (VT) | 20 | |
| 9 | CDC35 (BU-WH) | 18 | 14K024 |
| 9 | CDC35 (BU-WH) | 20 | 14A005 |
| 10 | CME44 (BK) | * | 14K024 |
| 10 | CME44 (BK) | 20 | 14A005 |
| 11 | SBP03 (BU-RD) | 22 | |
| 12 | SBP05 (GY-RD) | 18 | |
| 13 | SBP12 (GN-RD) | 22 | |
| 14 | CDC30 (BU-GY) | 22 | |
| 15 | * | * | |
| 16 | RMP19 (BN-VT) | 20 | |
| 17 | VMP19 (WH-GN) | 20 | |
| 18 | DMP19 (*) | * | |
| 19 | * | * | |
| 20 | CBP11 (BN) | 14 | |
| 21 | SBP10 (YE-RD) | 16 | |
| 22 | VRT23 (GY) | 22 | 14K024 |
| 22 | VRT23 (VT-GY) | 22 | 14A005 |
| 23 | SBP07 (WH-RD) | 22 | |
| 24 | VRT24 (YE) | 22 | 14K024 |
| 24 | VRT24 (YE-OG) | 22 | 14A005 |
| 25 | * | * | |
| 26 | CPK43 (GY-VT) | 20 | 14A005 |
| 26 | CPK43 (VT) | * | 14K024 |
| 27 | RMM13 (BU) | 20 | |
| 28 | * | * | |
| 29 | * | * | |
| 30 | * | * | |
| 31 | * | * | |
| 32 | VMM13 (YE-GN) | 20 | |
| 33 | * | * | |
| 34 | CBP15 (BN-BU) | 16 | |
| 35 | CPK34 (BN) | 22 | 14K024 |
| 35 | CPK34 (BN-VT) | 20 | 14A005 |
| 36 | GD111 (BK-BU) | 20 | |
| 37 | CBP13 (GY-BN) | 16 | |
| 38 | * | * | |
| 39 | * | * | |
| 40 | CLN01 (GN-VT) | 20 | |
| 41 | * | * | |
| 42 | * | * | |
| 43 | CPK35 (YE) | * | 14K024 |
| 43 | CPK35 (YE-OG) | 20 | 14A005 |
| 44 | VDB06 (GY-OG) | 22 | |
| 45 | VDB07 (VT-OG) | 22 | |
| 46 | VPK06 (GY-VT) | 22 | |
| 47 | RPK06 (BU-WH) | 22 | |
| 48 | * | * | |
| 49 | RPK05 (YE-OG) | 22 | |
| 50 | VPK05 (BN-GN) | 22 | |
| 51 | VDB04 (WH-BU) | 22 | |
| 52 | VDB05 (WH) | 22 | |
| 53 | RME10 (WH-OG) | 20 | |
| 54 | VME10 (WH-VT) | 20 | |
| 55 | RME12 (BN-BU) | 18 | |
| 56 | VME12 (BN-WH) | 18 | |
| 57 | CDC41 (WH-BN) | 22 | |
| 58 | * | * | |
| 59 | * | * |
