Fuel Pump: Installation

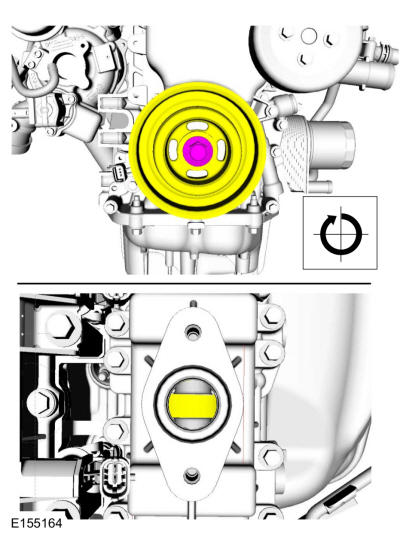

- 2.NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.NOTE: The cam lobe for the fuel high-pressure pump must be at BDC for the fuel high-pressure pump installation.
Rotate the camshaft as needed until the cam lobe for the high-pressure fuel pump is at BDC.

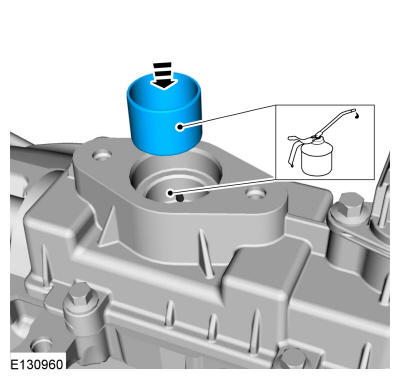

- 3.
Lubricate the high-pressure fuel pump tappet and the high-pressure fuel pump drive unit bore with clean engine oil.Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

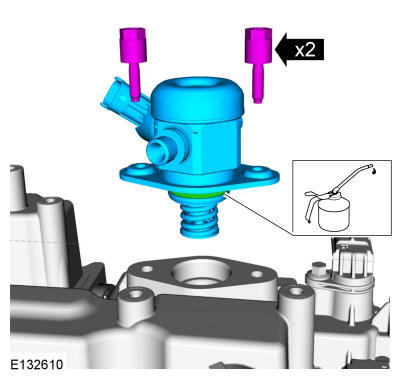

- 4.NOTE: Install a new high-pressure fuel pump O-ring seal.
Install the high-pressure fuel pump and loosely install the high-pressure fuel pump bolts, alternately tighten each bolt one half of a revolution until seated. Tighten the high-pressure fuel pump bolts.
Torque: 115 lb.in (13 Nm)
- 6.NOTE: Only tighten the 2 high-pressure fuel tube flare nuts finger tight at this stage.NOTE: Make sure that a new component is installed.NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in the chart below.
Tighten the high-pressure fuel tube flare nuts in the following 3 stages.
Torque:
Stage 1: 15 lb.ft (21 Nm)
Stage 2: Wait 5min
Stage 3: 15 lb.ft (21 Nm)
- 7.

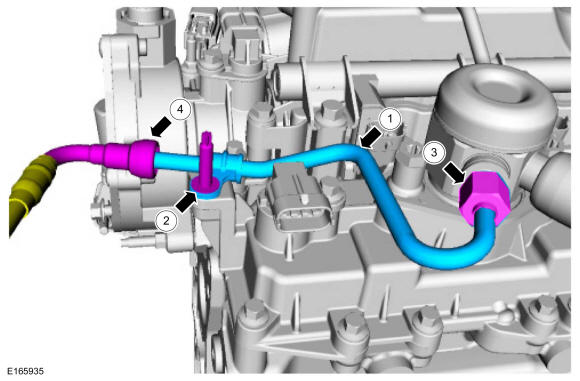

- 1.NOTE: Make sure that a new component is installed.
Install the new high-pressure fuel pump fuel supply tube and the high-pressure fuel pump fuel supply tube studbolt finger tight.
- 2.
Tighten install the high-pressure fuel pump fuel supply tube studbolt.Torque: 62 lb.in (7 Nm)
- 3.NOTE: Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas in the chart below.
Tighten the high-pressure fuel pump fuel supply tube flare nut in the following 3 stages.
Torque:
Stage 1: 15 lb.ft (21 Nm)
Stage 2: Wait 5min
Stage 3: 15 lb.ft (21 Nm)
- 4.
Connect the high-pressure fuel pump fuel supply tube. Refer to: Spring Lock Couplings .
- 1.
- 9.
- 1.
Install the ignition coil-on-plug mounting bracket, then install and tighten the ignition coil-on-plug mounting bracket retainers.Torque:
Stage 1: 89 lb.in (10 Nm)
Stage 2: 53 lb.in (6 Nm)
- 2.
Install the wiring harness, then attach the wiring harness retainers. Connect the FRP sensor electrical connector, the fuel injection pump electrical connector and the CMP electrical connector.
- 1.

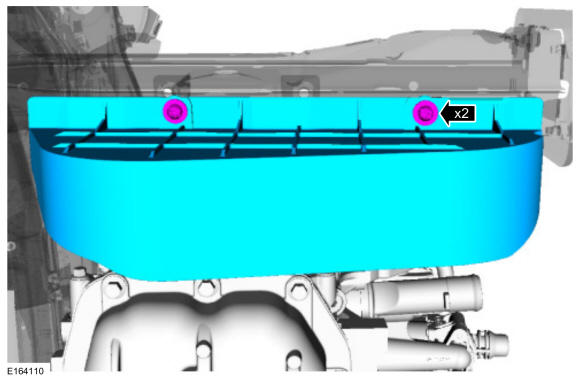

- 10.NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.
Install the high-pressure fuel pump noise insulator.
- 11.
- 1.
Install the TC inlet pipe.
- 2.
Install and tighten the TC inlet pipe ball stud and retaining nut.Torque: 44 lb.in (5 Nm)
- 3.
Tighten the TC inlet tube clamp.Torque: 44 lb.in (5 Nm)
- 4.
Install the crankcase ventilation tube and clamp.
- 5.
Connect the crankcase ventilation tube quick release coupling. Refer to: Quick Release Coupling .
- 6.
Attach the hose retainer.Torque: 44 lb.in (5 Nm)
- 1.
- 12.
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
- 13.
Install the ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
- 14.
Connect the battery. Refer to: Battery Disconnect and Connect .
- 15.
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
