Cylinder Head Distortion
Special Tool(s) / General Equipment
| Feeler Gauge |
|---|
Check
NOTE:
Refer to the appropriate Engine article for the specification.
- 1.NOTE: Make sure all cylinder head surfaces are clear of any gasket material, silicone sealant, oil and coolant. The cylinder head surface must be clean and dry before running a flatness check.NOTE: Use a Straightedge that is calibrated by the manufacturer to be flat within 0.005 mm (0.0002 in) per running foot of length, such as Snap-On ® GA438A or equivalent. For example, if the Straightedge is 61 cm (24 in) long, the machined edge must be flat within 0.010 mm (0.0004 in) from end to end.

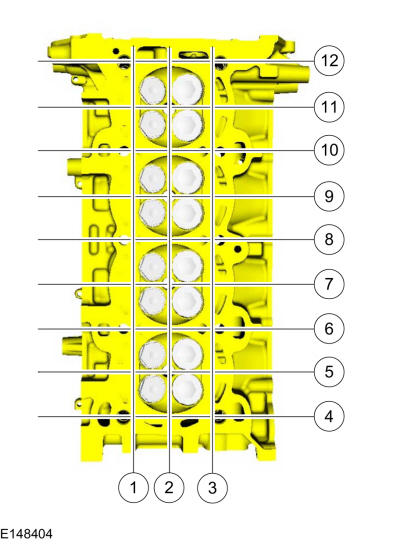

Using a Straightedge and a Feeler Gauge Set, inspect the cylinder head for flatness in the sequence shown.Use the General Equipment: Feeler Gauge
