Automatic Climate Control System
Automatic Climate Control System

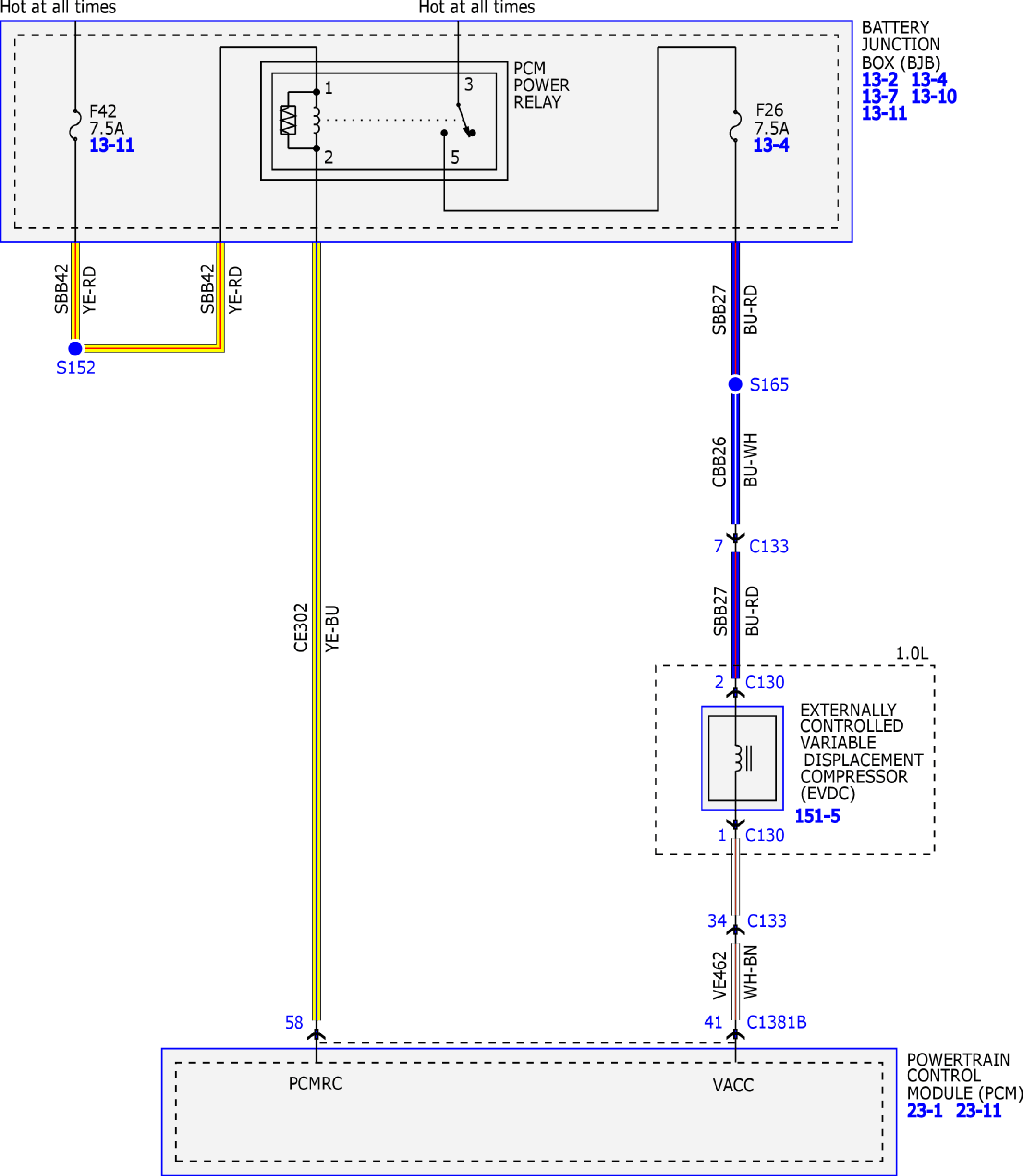

Fig 1: Automatic Climate Control System Wiring Diagram (1 of 6)
Courtesy of FORD MOTOR COMPANY

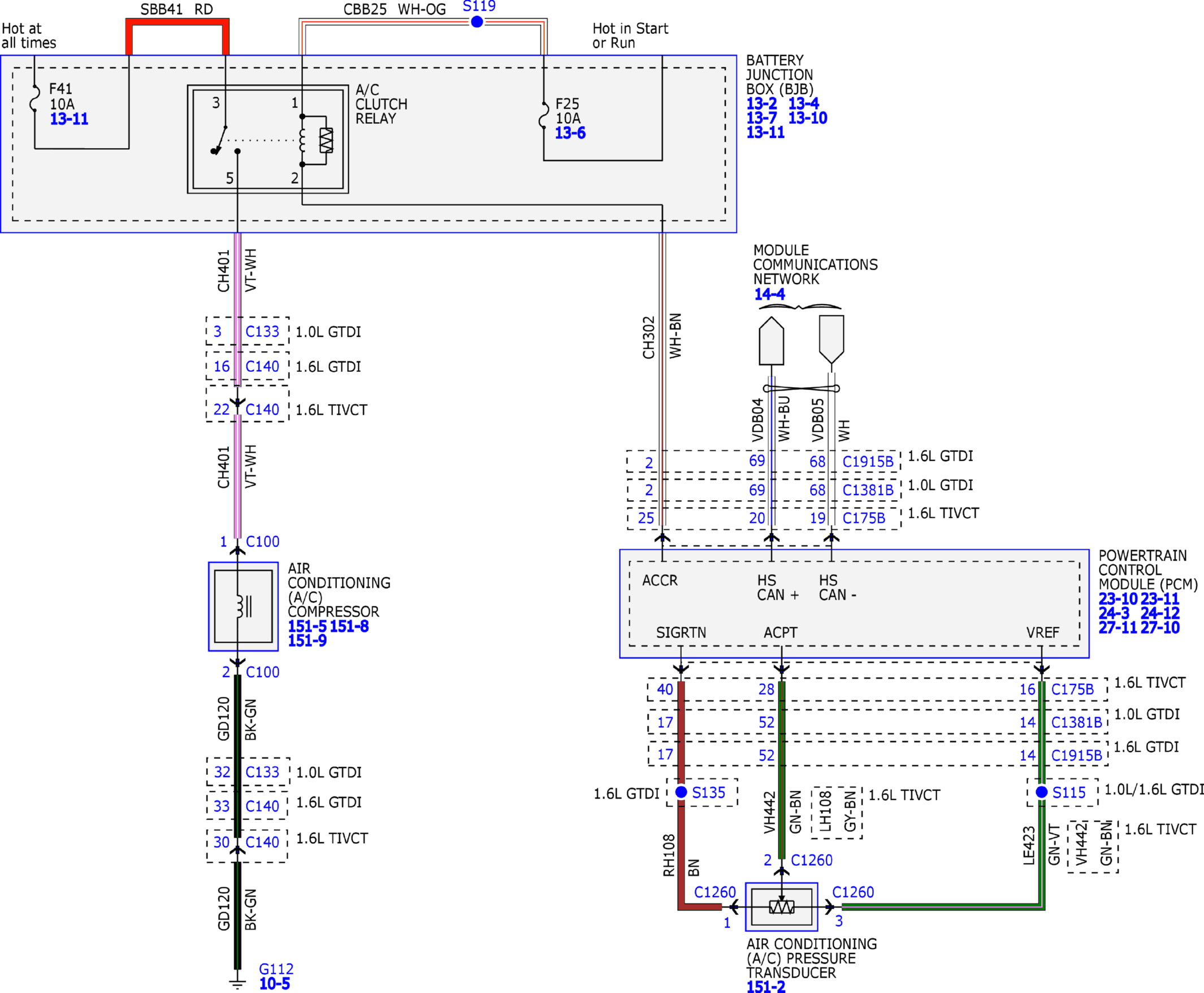

Fig 2: Automatic Climate Control System Wiring Diagram (2 of 6)
Courtesy of FORD MOTOR COMPANY

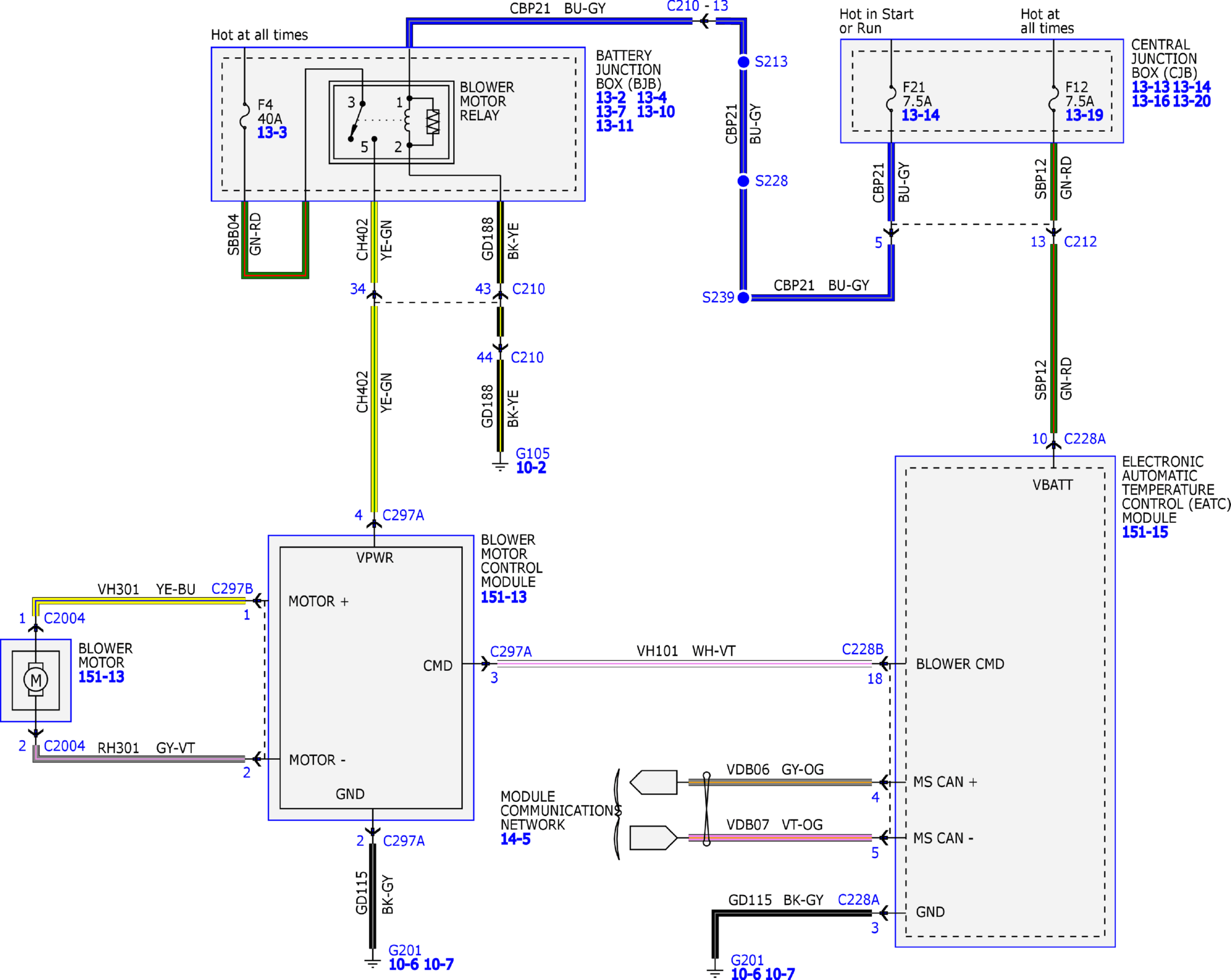

Fig 3: Automatic Climate Control System Wiring Diagram (3 of 6)
Courtesy of FORD MOTOR COMPANY

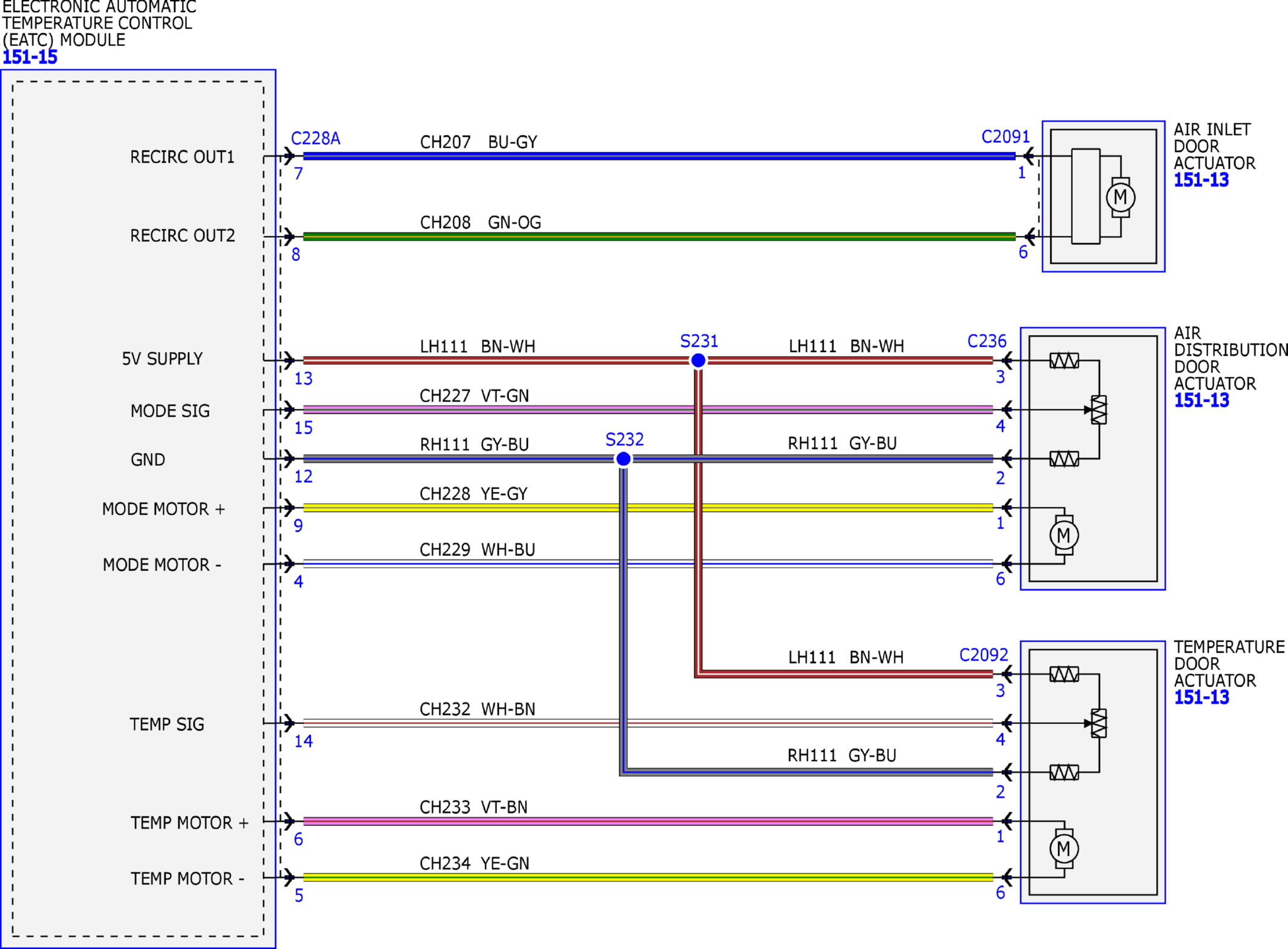

Fig 4: Automatic Climate Control System Wiring Diagram (4 of 6)
Courtesy of FORD MOTOR COMPANY

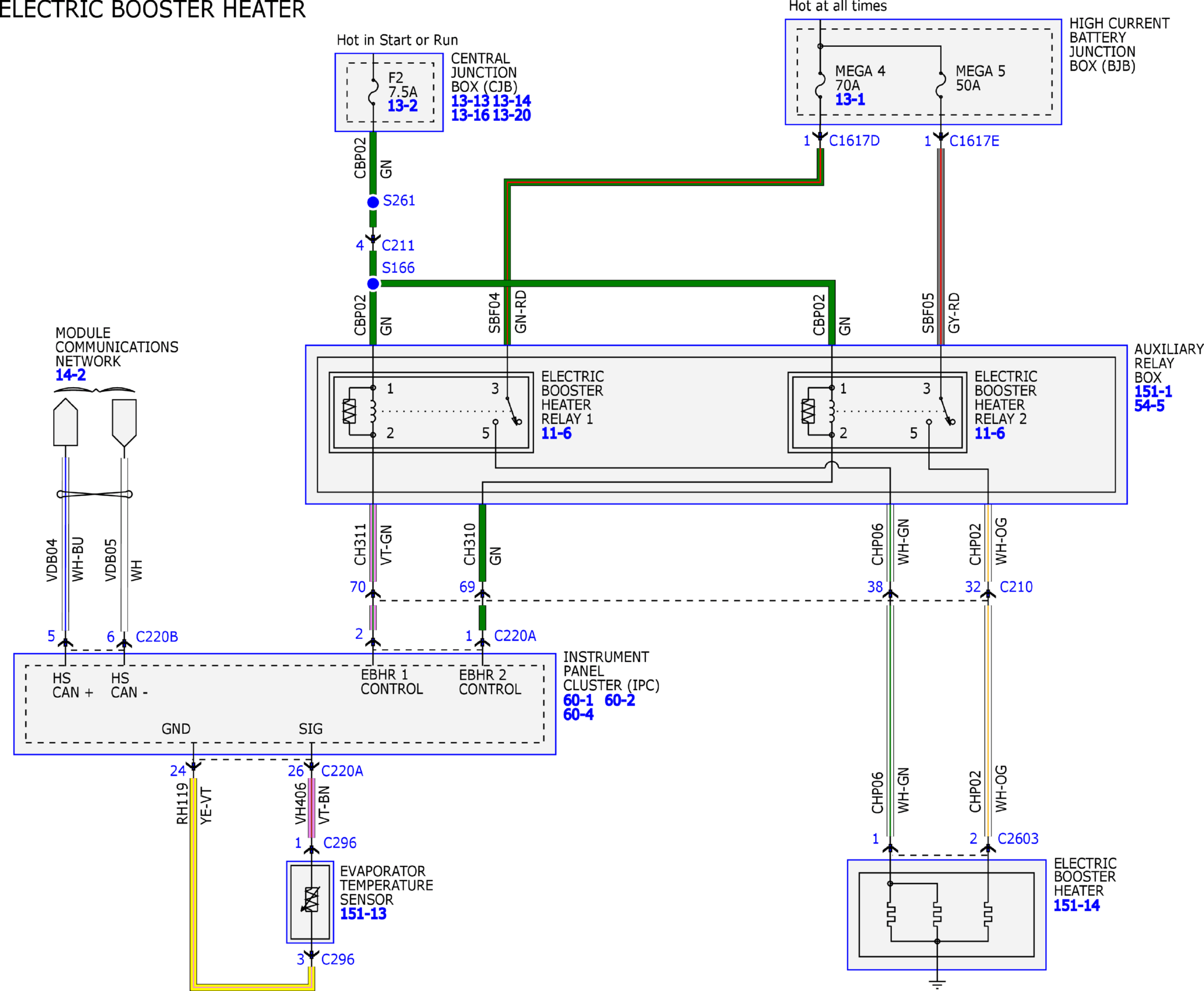

Fig 5: Automatic Climate Control System Wiring Diagram (5 of 6)
Courtesy of FORD MOTOR COMPANY

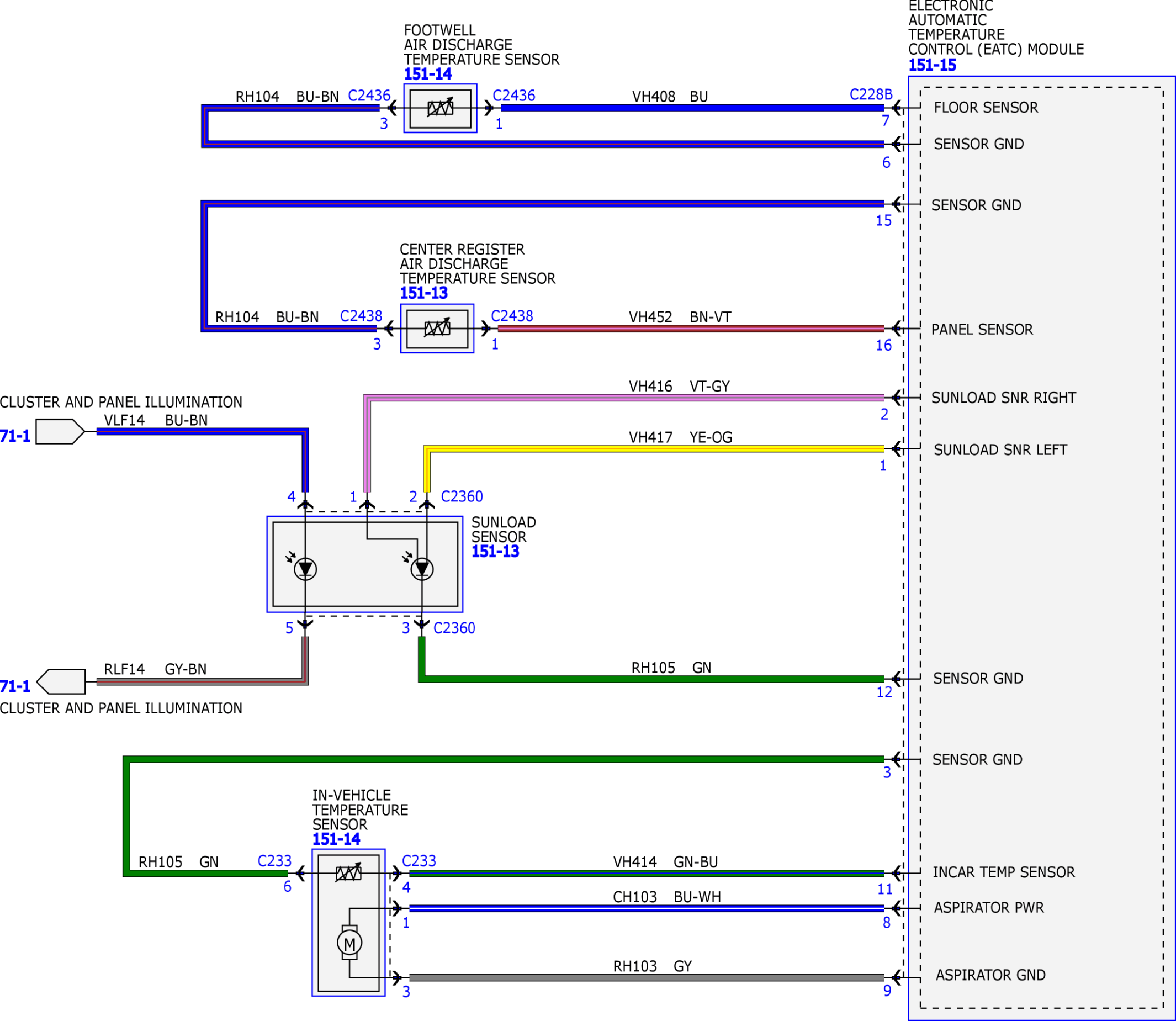

Fig 6: Automatic Climate Control System Wiring Diagram (6 of 6)
Courtesy of FORD MOTOR COMPANY
