Body Control Module (BCM): Installation

1.

Install the BCM, tighten the nuts and connect the electrical connectors.
Torque: 115 lb.in (13 Nm)

GFD141375

Courtesy of FORD MOTOR COMPANY

2.

NOTE: If the BCM is not being replaced, this is the last step that is necessary.

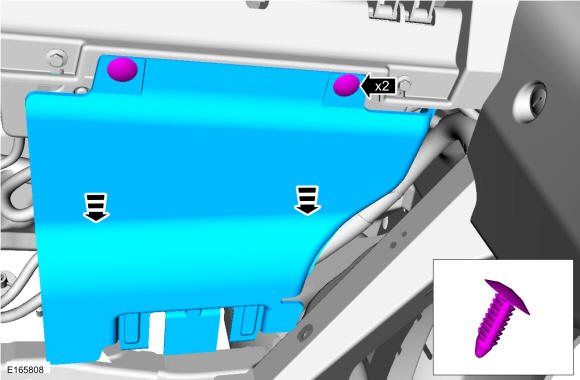

Install the RH insulation panel and the pin-type retainers.

GFD141376

Courtesy of FORD MOTOR COMPANY

3.

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

4.

Carry out the BCM self-test to confirm all DTC have been cleared.

5.

For vehicles without push button start, program all the RKE transmitter(s) into the new BCM. Refer to: Remote Keyless Entry (RKE) Transmitter Programming .
