Multifunction Switch, Wiper/Washer Switch

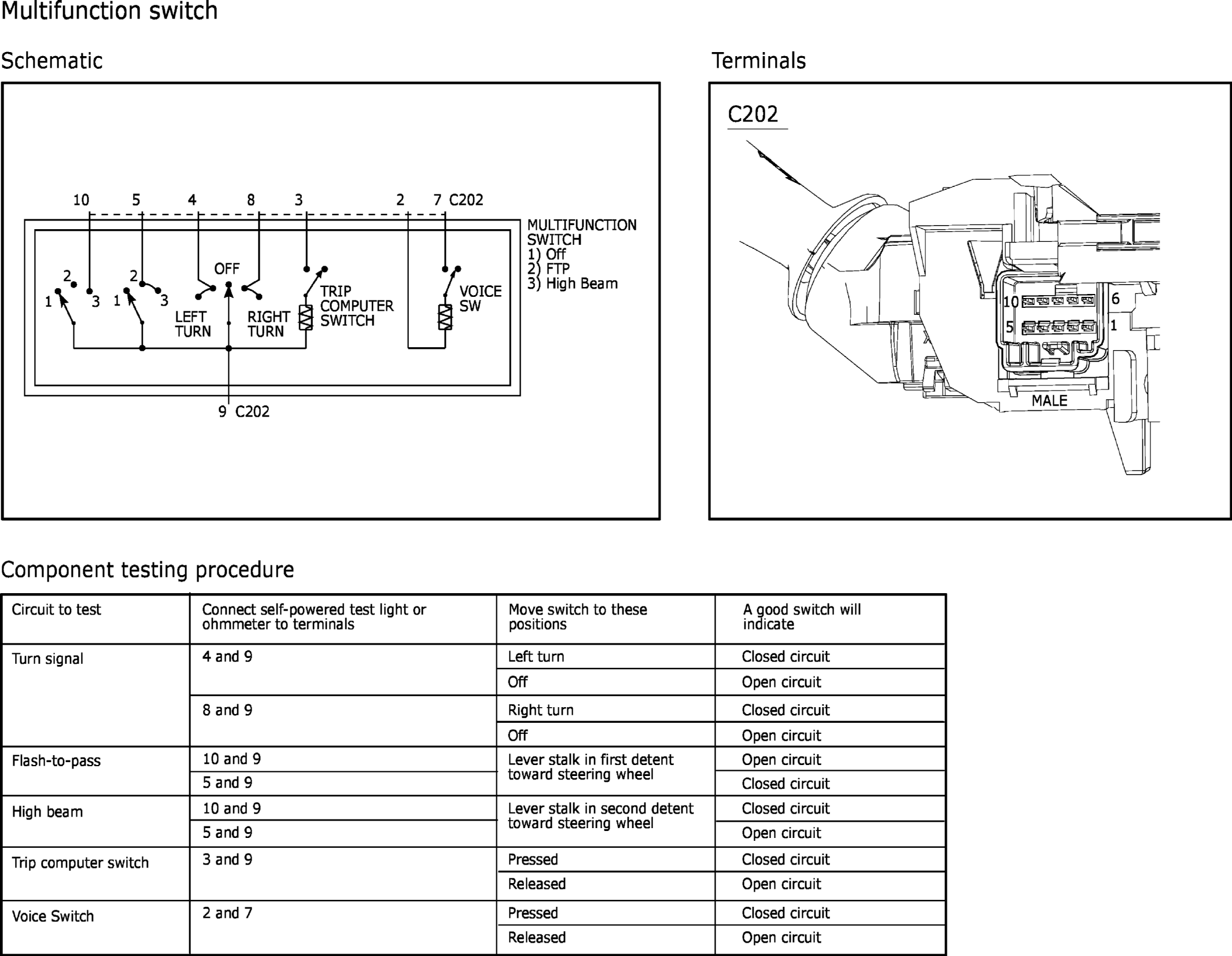

GFDW60990

Courtesy of FORD MOTOR COMPANY

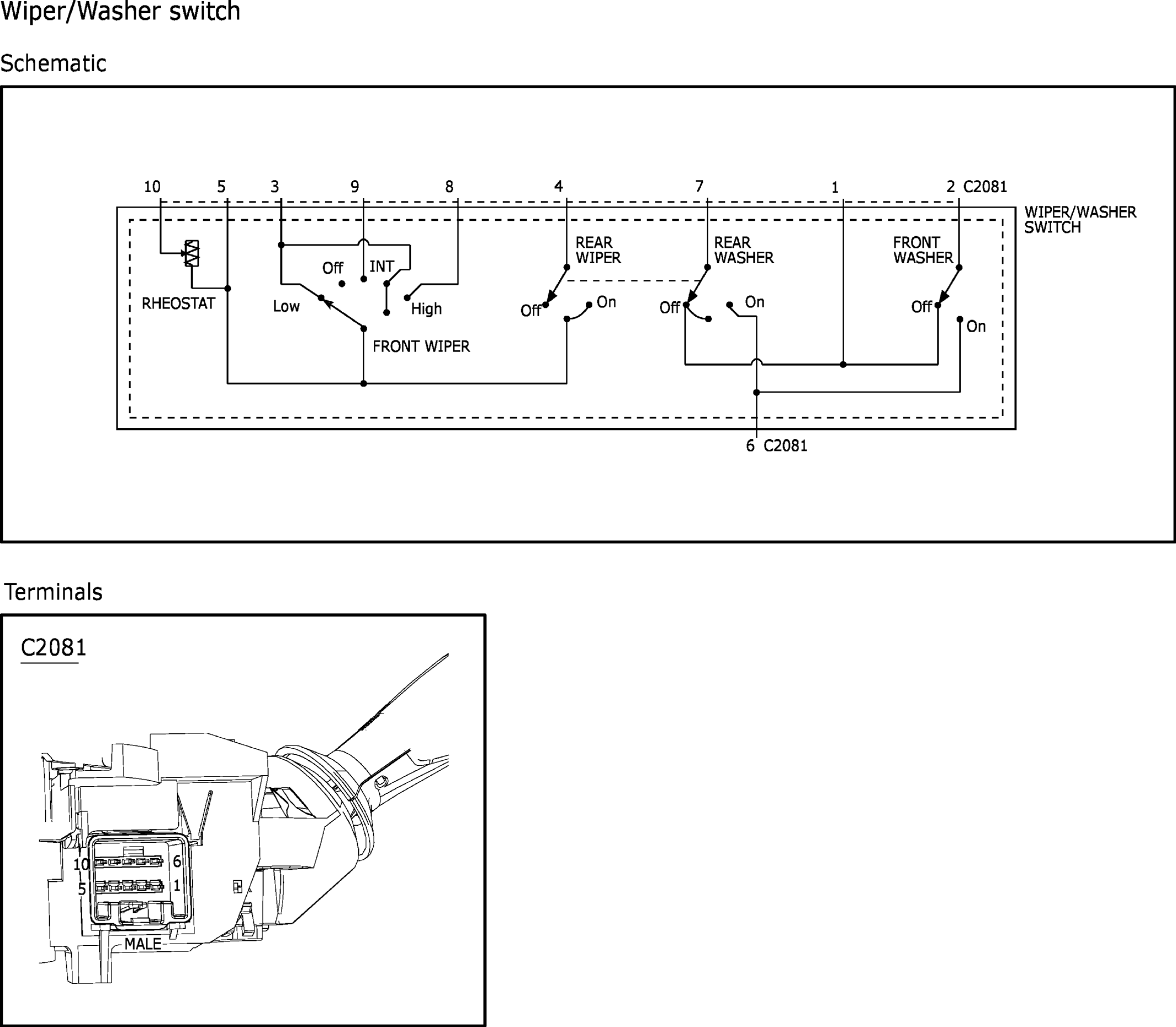

GFDW60991

Courtesy of FORD MOTOR COMPANY

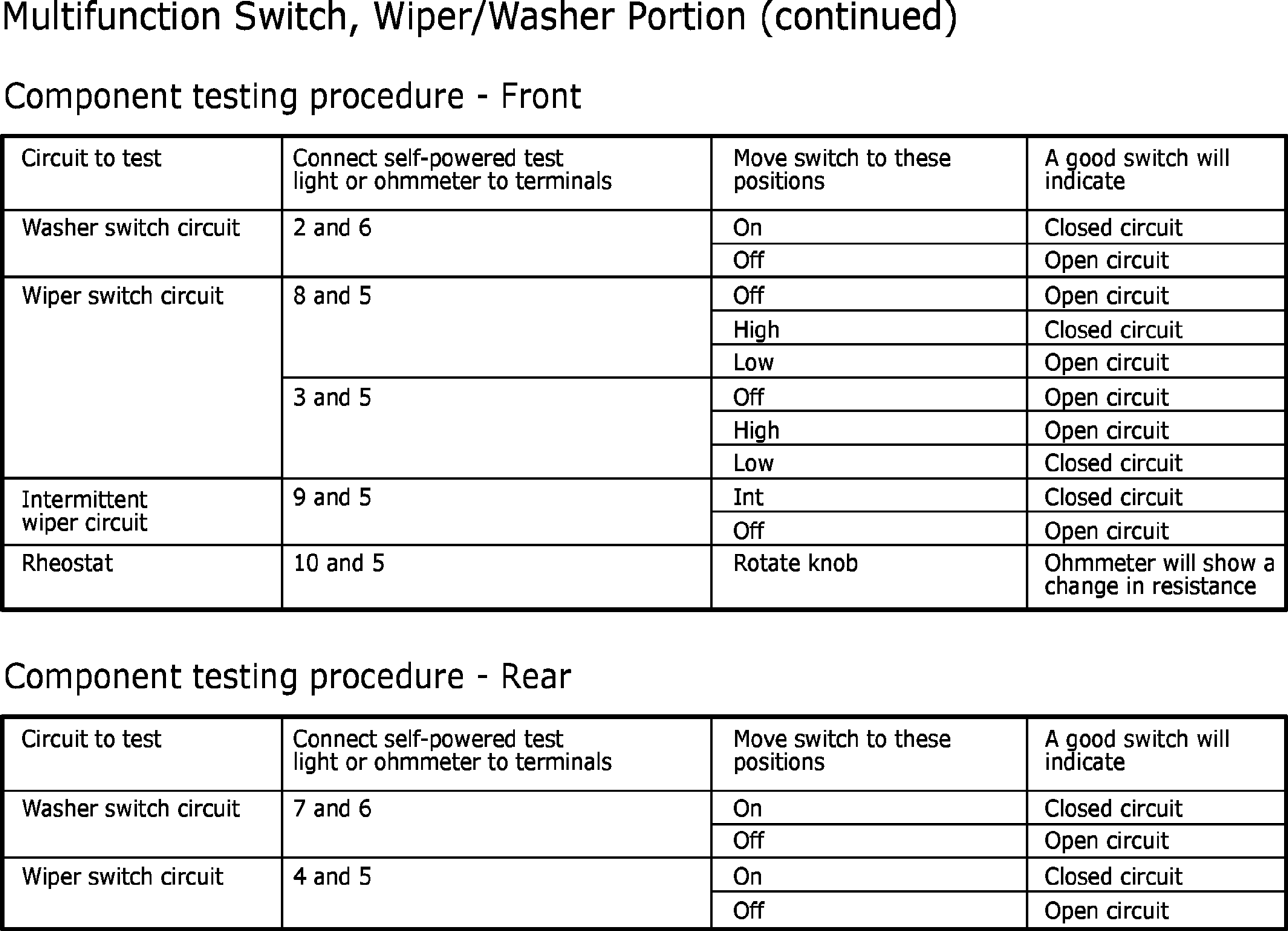

GFDW60992

Courtesy of FORD MOTOR COMPANY
