Front Control/ Display Interface Module (FCDIM)

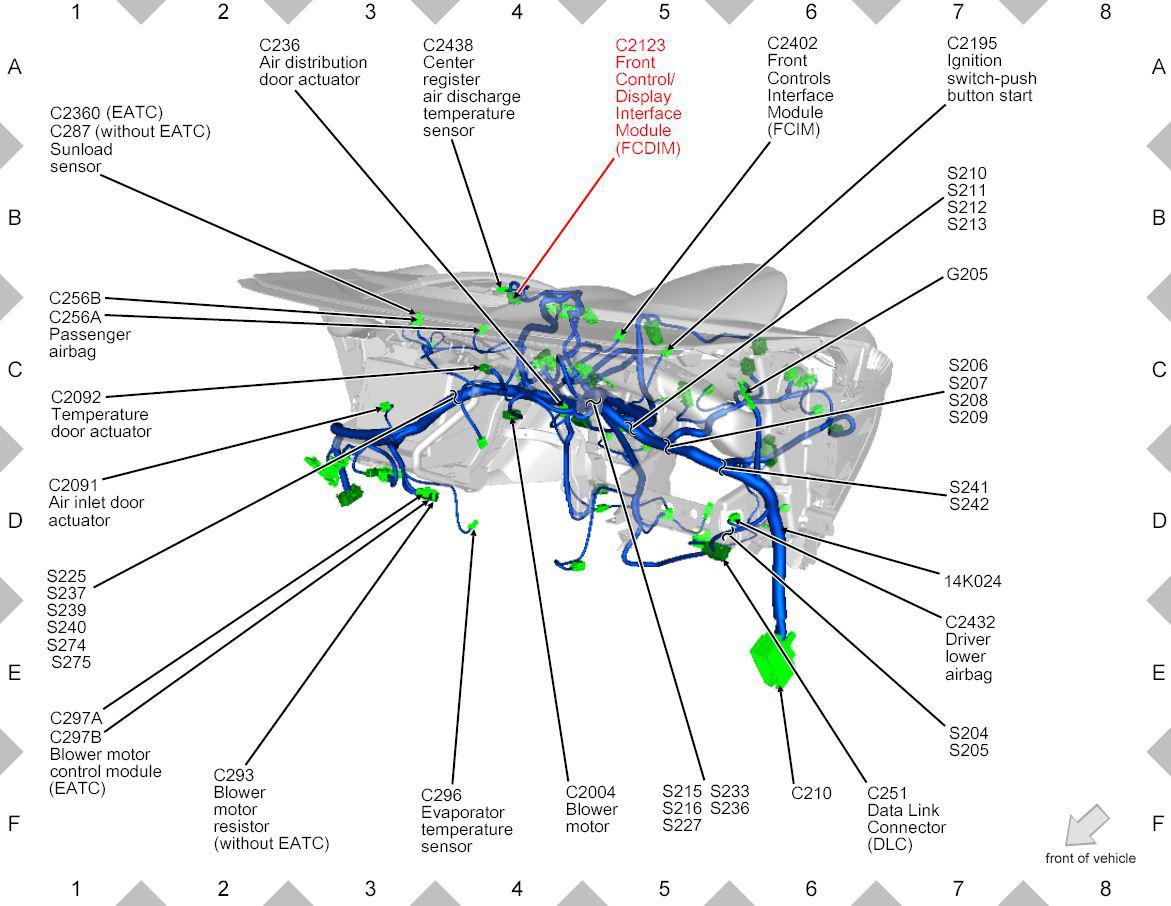

Fig 1: Front Control/ Display Interface Module (FCDIM) Components Location

G00569408

Courtesy of FORD MOTOR CO.
