Fuel Pump Driver Module (FPDM): Removal
NOTE:
The FPDM is located under the carpet and under left front seat attached to the rear of the front cross floor support in front of the left front seat.
- 1.NOTE: Removal steps in this procedure may contain installation details.
Remove the LH front seat. Refer to: Front Seat .
- 2.
Remove the LH B-Pillar trim panel. Refer to: B-Pillar Trim Panel .
- 3.NOTE: To avoid damage to the trim panels, remove any retaining clips from the body and attach them to the trim panels before installing.
Remove the retainer and then remove the left front cowl side panel.
- 4.
- 1.

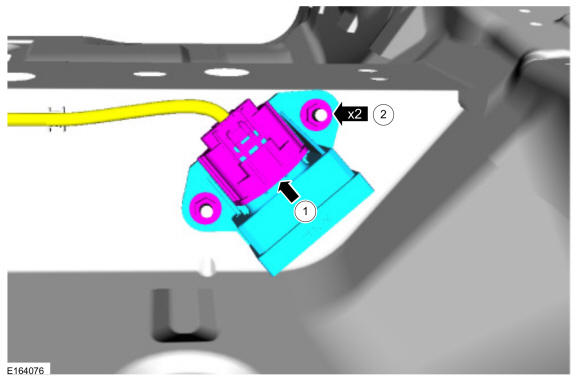

Disconnect the FPDM electrical connector.
- 2.
Remove the FPDM nuts and then remove the FPDM.Torque: 44 lb.in (5 Nm)
- 1.
