Transfer Case Shift Motor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the harness connector.
    GFD177902Courtesy of FORD MOTOR COMPANY

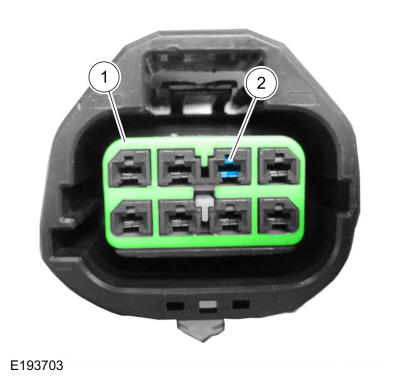

  3. Remove the coil wire pin from the electrical connector.

    1. Remove the inner retainer from the wire connector.
    2. Press the release tab and remove the coil wire pin.

    GFD177903Courtesy of FORD MOTOR COMPANY
  4. Remove the transfer case shift motor bracket bolt.
    GFD177904Courtesy of FORD MOTOR COMPANY
  5. Remove the mounting bolts and the transfer case shift motor.
GFD177905Courtesy of FORD MOTOR COMPANY
