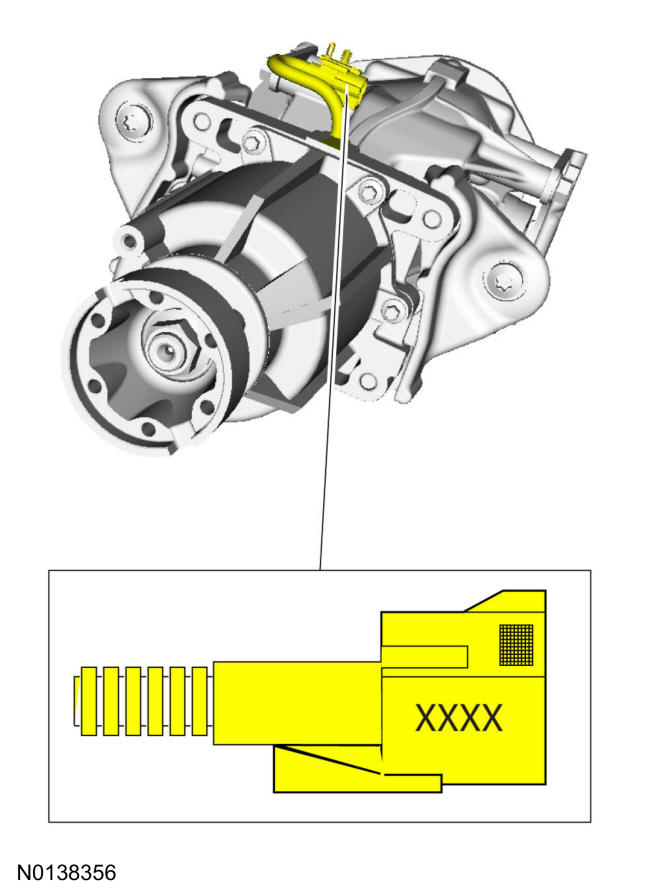

Automatic Torque Coupling Configuration Bar Code Label Location 2.3L, 3.5L/3.7L Engine

GFD124532Courtesy of FORD MOTOR COMPANY

2.3L, 3.5L, 3.7L Engine

Item Description
1 Active Torque Coupling (ATC) solenoid bar code label
