Transmission Fluid Level Check

Materials

Check

Vehicles equipped with a 3.5L GTDI engine

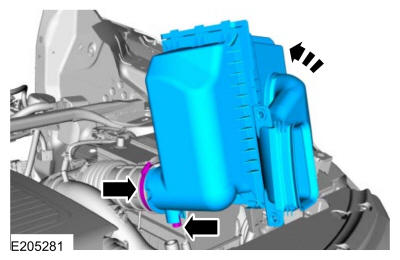

1. 1.

   Remove the air cleaner assembly. REFER to: Air Cleaner - 3.5L EcoBoost (257kW/350PS).

1. 2.


   NOTE: Position the air cleaner assembly aside to access the transmission fluid level indicator.

   Install the air cleaner assembly, tighten the air cleaner outlet pipe clamp and connect the MAF sensor.

Courtesy of FORD MOTOR COMPANY

All vehicles

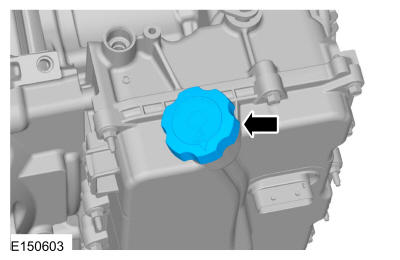

1. 3.

   Remove the transmission fluid level indicator.

Courtesy of FORD MOTOR COMPANY

1. 4.


   NOTE: With the selector in PARK, the engine at idle and foot pressed on the brake, select the gears into each position and allow engagement for a minimum of ten seconds. Check the transmission fluid level by installing and removing the transmission fluid level indicator. Adjust the transmission fluid level.
   NOTE: Correct transmission fluid level at normal operating temperature is 82°C-93°C (180°F-200°F).

   1. 1.

      Correct transmission fluid level at normal operating temperature 82°C-93°C (180°F-200°F).

      Material

      : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)

   1. 2.

      Low transmission fluid level or below operating temperature.

   1. 3.

      High transmission fluid level.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a 3.5L GTDI engine

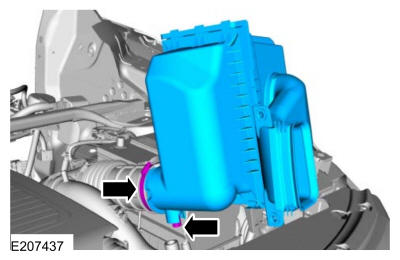

1. 5.

   Disconnect the MAF sensor, loosen the air cleaner outlet pipe clamp and remove the air cleaner assembly.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Install the air cleaner assembly. REFER to: Air Cleaner - 3.5L EcoBoost (257kW/350PS).
