Torque Converter Housing: Disassembly
- 1.

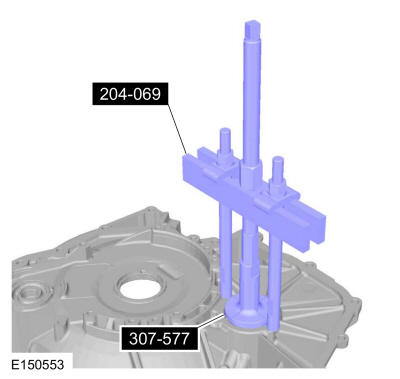

Using special tools, remove the transfer shaft roller bearing cup.Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub, 307-577 Transfer Gear Bearing race remover.
- 4.

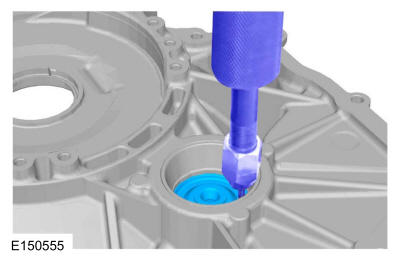

If the transfer shaft bearing cup was removed, use a dent puller to remove the fluid dam from the torque converter housing.Use the General Equipment: Puller
- 5.
Install the special tool on the bearing cup.- 1.

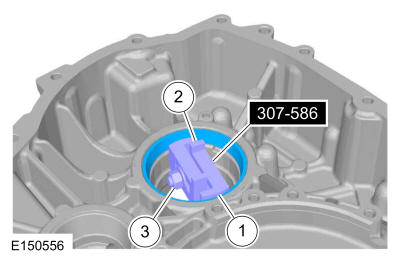

Position the Differential Bearing Cup Remover 307-586 in the torque converter housing with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the torque converter housing.Use Special Service Tool: 307-586 Differential bearing cup remover.
- 2.
Expand the Differential Bearing Cup Remover 307-586 by hand.
- 3.
While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the torque converter housing, tighten the nut.
- 1.
- 6.
Using a press, press the differential bearing cup out of the torque converter housing.Use the General Equipment: Hydraulic Press
