Steering Gear: Installation

1.

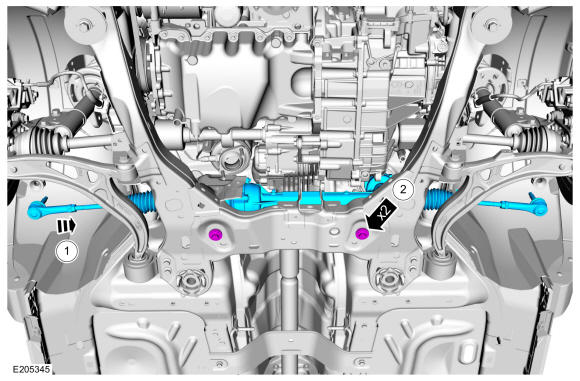

NOTE: Install the steering gear from the RH side of the vehicle.

Position the steering gear and install the new steering gear bolts.

Torque

: 122 lb.ft (165 Nm)

GFD121599

Courtesy of FORD MOTOR COMPANY

2.

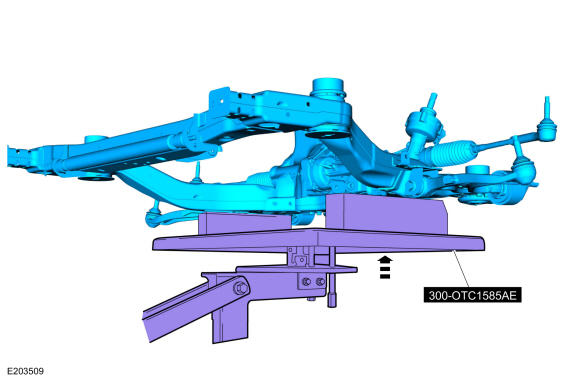

Raise and align the subframe assembly to the witness marks made during removal.
Use Special Service Tool: 300-OTC1585AE Powertrain Lift.

Use the General Equipment: Wooden Block

GFD121600

Courtesy of FORD MOTOR COMPANY

3.

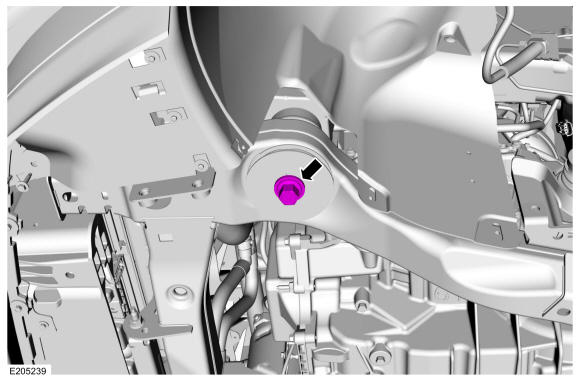

NOTE: Install new bolts.

On both sides. Install the new front subframe forward bolts.

Torque

: 148 lb.ft (200 Nm)

GFD121601

Courtesy of FORD MOTOR COMPANY

4.

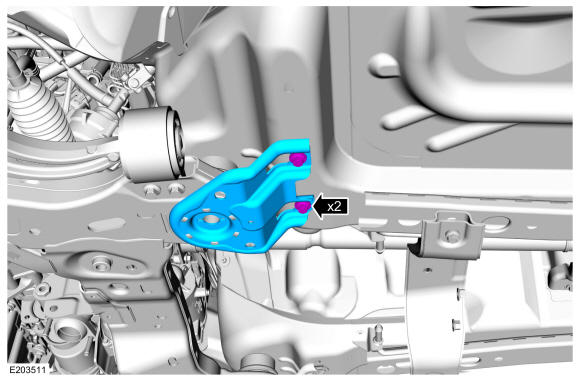

NOTE: Only tighten the bolts finger tight at this stage.

On both sides. Position the front subframe brackets and install the new front subframe bracket bolts.

GFD121602

Courtesy of FORD MOTOR COMPANY

5.

On both sides. Install the new front subframe rearward bolts.
Torque

: 148 lb.ft (200 Nm)

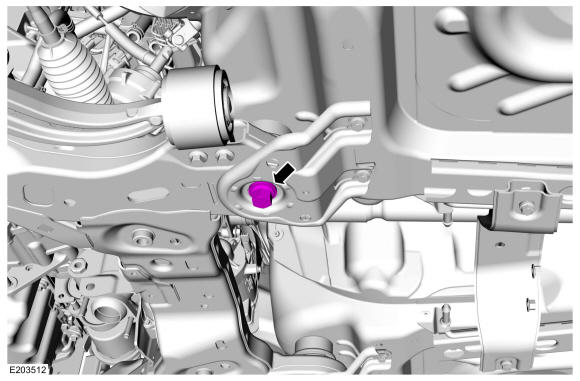

GFD121603

Courtesy of FORD MOTOR COMPANY

6.

On both sides. Tighten the new front subframe bracket bolts.
Torque

: 41 lb.ft (55 Nm)

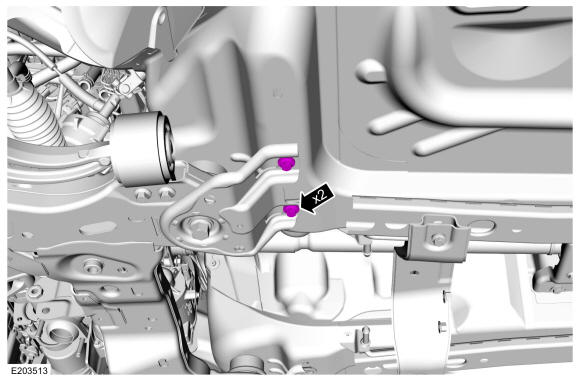

GFD121604

Courtesy of FORD MOTOR COMPANY

7.

If equipped. Install the PTU cooler line mounting bracket bolts.
Torque

: 97 lb.in (11 Nm)

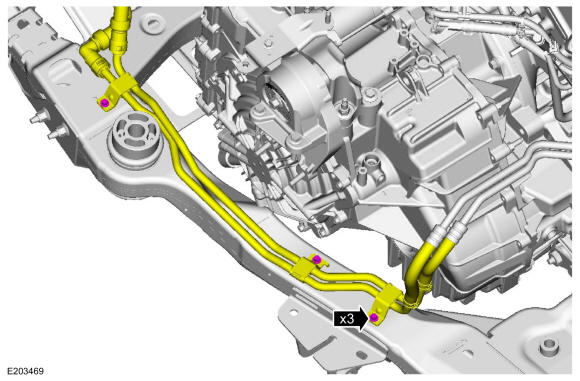

GFD121593

Courtesy of FORD MOTOR COMPANY

8.

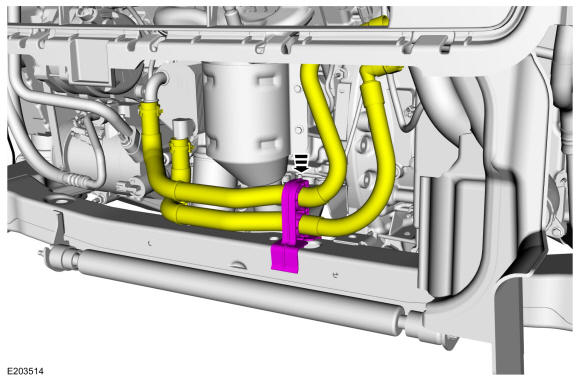

If equipped. Clip the oil cooler hose retainer to the front subframe.

GFD121605

Courtesy of FORD MOTOR COMPANY

9.

If equipped. Install the roll restrictor-to-subframe bolt.
Torque

: 66 lb.ft (90 Nm)

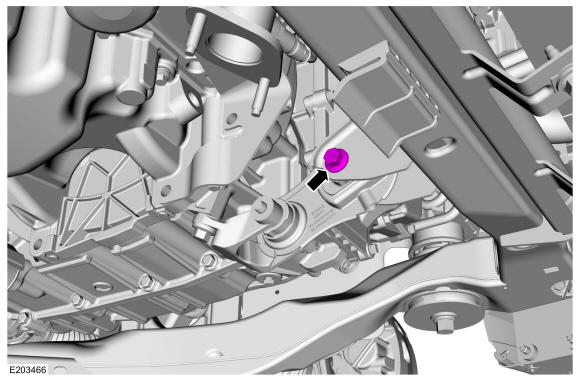

GFD121591

Courtesy of FORD MOTOR COMPANY

10.

Install the rear roll restrictor-to-subframe bolt.
Torque

: 76 lb.ft (103 Nm)

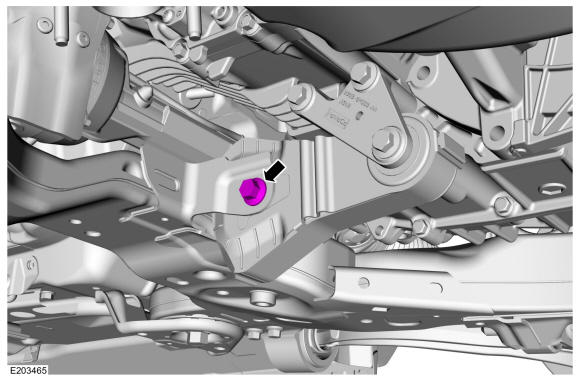

GFD121590

Courtesy of FORD MOTOR COMPANY

11.
- 1.

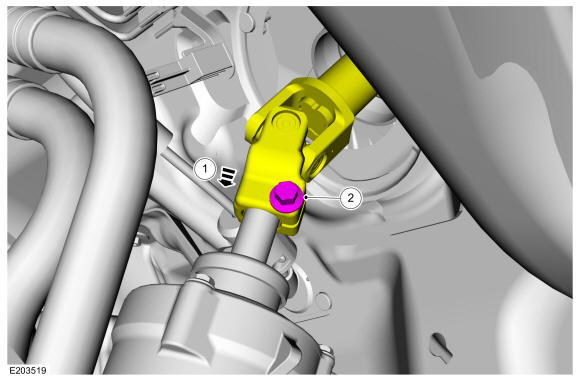

  Attach the steering column shaft coupler to the EPAS gear.
- 2.

  Install the new steering column shaft bolt.
  Torque

  : 18 lb.ft (25 Nm)

GFD121606

Courtesy of FORD MOTOR COMPANY

12.
- 1.

  Position the EPAS gear harness and attach the clips.
- 2.

  Connect the EPAS gear harness electrical connectors.
- 3.

  Install the EPAS gear harness ground bolt.
  Torque

  : 62 lb.in (7 Nm)

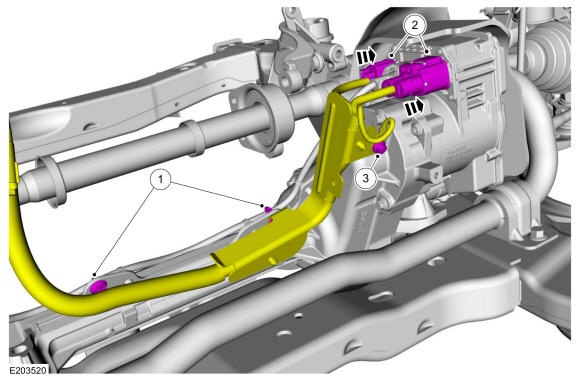

GFD121607

Courtesy of FORD MOTOR COMPANY

13.
- 1.

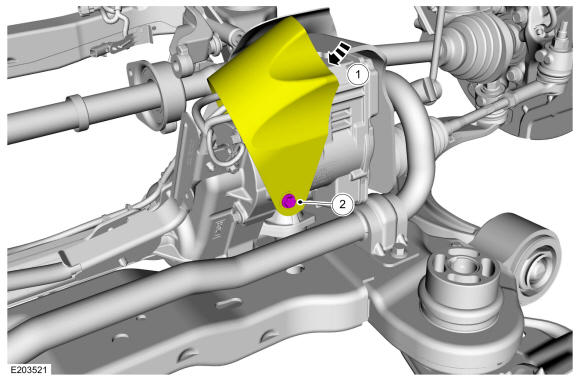

  Position the EPAS gear flap heat shield.
- 2.

  Install the EPAS gear flap heat shield bolt.
  Torque

  : 97 lb.in (11 Nm)

GFD121608

Courtesy of FORD MOTOR COMPANY

14.

NOTE: Use the hex-holding feature to prevent turning of the stud while installing the tie rod end nut.
- 1.

  On both sides. Attach the tie rod end to the wheel knuckle.
- 2.

  On both sides. Install the new tie rod end nut.
  Torque

  : 111 lb.ft (150 Nm)

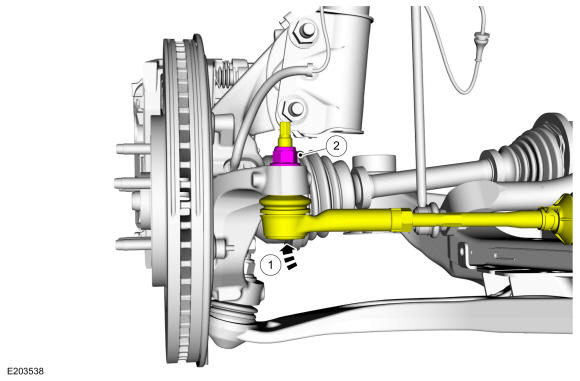

GFD121277

Courtesy of FORD MOTOR COMPANY

15.

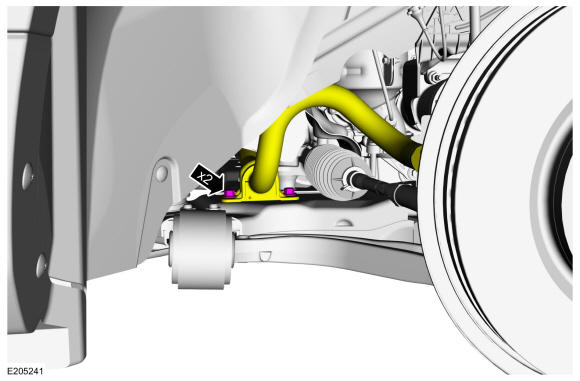

On both sides. Position the stabilizer bar and install the new stabilizer bar bracket-to-front subframe bolts.
Torque

: 41 lb.ft (55 Nm)

GFD121609

Courtesy of FORD MOTOR COMPANY

16.

NOTE: Vehicles equipped with 3.7L Duratec engine.

Install the exhaust Y-pipe. Refer to: EXHAUST Y-PIPE - 3.7L Duratec (227kW/301PS).

17.

NOTE: Vehicles equipped with 3.5L Duratec engine.

Install the exhaust Y-pipe. Refer to: Exhaust Y-Pipe - 3.5L Duratec (209kW/284PS).

18.

NOTE: Vehicles equipped with 3.5L EcoBoost engine.

Install the exhaust flexible pipe. Refer to: Exhaust Flexible Pipe - 3.5L EcoBoost (257kW/350PS).

19.

NOTE: Vehicles equipped with 2.3L EcoBoost engine.

Install the exhaust flexible pipe. Refer to: Exhaust Flexible Pipe - 2.3L EcoBoost (201kW/273PS).

20.

On both sides. Install the wheel arch liner to front subframe retainers.

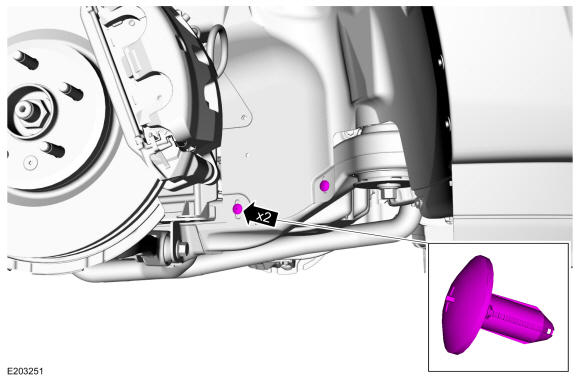

GFD126948

Courtesy of FORD MOTOR COMPANY

21.

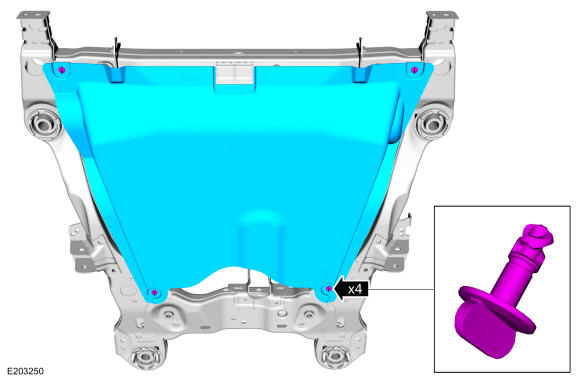

If equipped. Install the underbody shield and the retainers.

GFD126947

Courtesy of FORD MOTOR COMPANY

22.

If equipped. Install the underbody air duct and the retainers.

GFD126946

Courtesy of FORD MOTOR COMPANY

23.

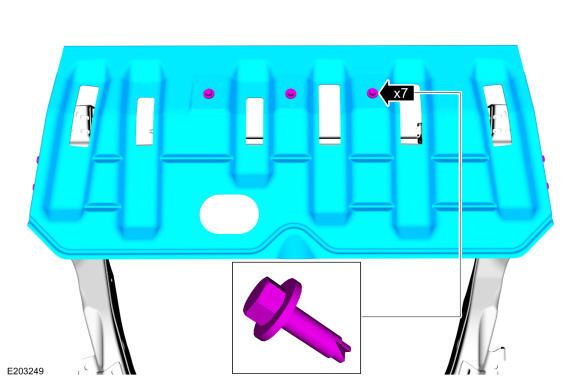

If equipped. Install the skid plate and the retainers.

GFD126945

Courtesy of FORD MOTOR COMPANY

24.

Install the wheels and tires. Refer to: Wheel and Tire .

25.

When installing a new steering gear, it must be configured (using vehicle as-built data or module configuration information retrieved earlier in this procedure). Refer to the scan tool instructions to carry out PMI.

26.

Check and if necessary, adjust front toe. Refer to: Front Toe Adjustment .
