Steering Gear Boot: Installation

1.

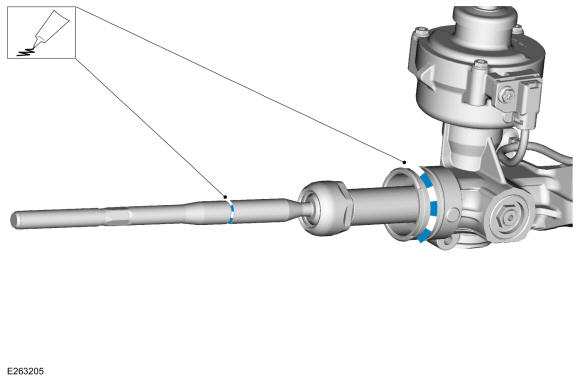

Apply the specified grease to the steering gear-to-boot mating surface and boot groove on the inner tie rod.
Material

: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

GFD121612

Courtesy of FORD MOTOR COMPANY

2.

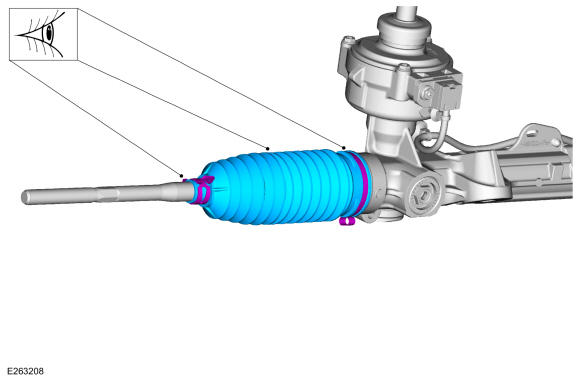

Install the new steering gear boot and new clamps.
Use the General Equipment: Boot Clamp Pliers

GFD121613

Courtesy of FORD MOTOR COMPANY

3.

Thread the tie rod end jam nut onto the tie rod.

GFD121610

Courtesy of FORD MOTOR COMPANY

4.

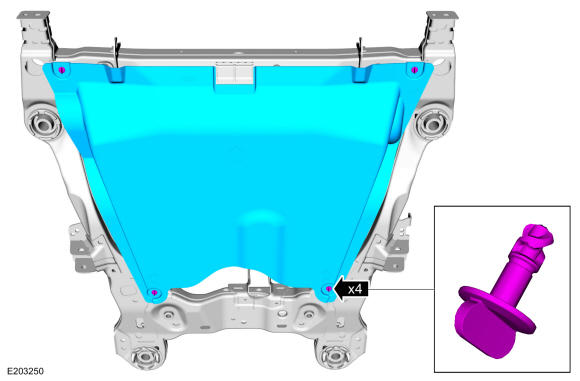

If equipped. Install the underbody shield and the retainers.

GFD126955

Courtesy of FORD MOTOR COMPANY

5.

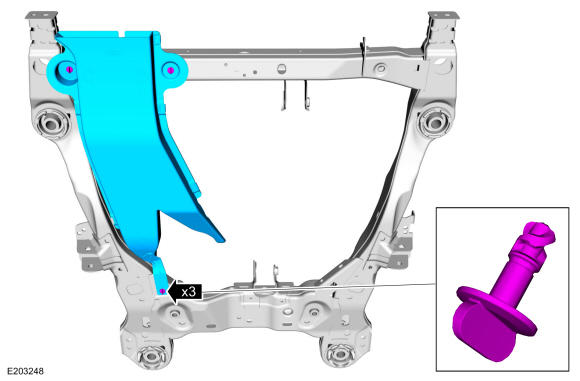

If equipped. Install the underbody air duct and the retainers.

GFD126954

Courtesy of FORD MOTOR COMPANY

6.

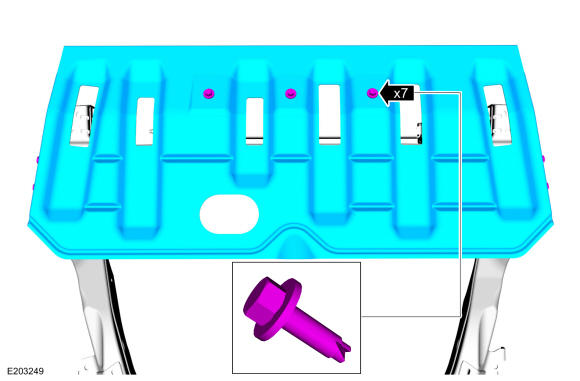

If equipped. Install the skid plate and the retainers.

GFD126953

Courtesy of FORD MOTOR COMPANY

7.

Install the tie rod end. Refer to: Tie Rod End .

8.

Check and if necessary adjust front toe. Refer to: Front Toe Adjustment .
