Component Testing: Relays

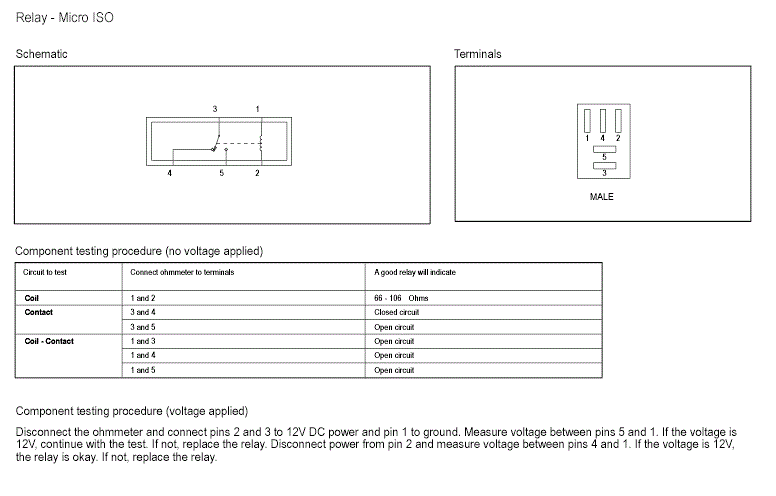

Fig 1: Relay - Micro ISO
GFDW55255Courtesy of FORD MOTOR COMPANY
Fig 2: Relay - Ultra Micro ISO
GFDW55256Courtesy of FORD MOTOR COMPANY
Fig 3: Relay - Power ISO
GFDW55257Courtesy of FORD MOTOR COMPANY
