Main Control Valve Body: Removal

WARNING: This page is about a different variant/trim than selected.

  1. 1.

    Remove the main control cover. REFER to: Main Control Cover .

  1. 2.

    Disconnect the TR sensor electrical connector.
GFD123666Courtesy of FORD MOTOR COMPANY

  1. 3.

    Disconnect the OSS sensor electrical connector.
GFD123667Courtesy of FORD MOTOR COMPANY

  1. 4.

    Remove the main control-to-cover seal.

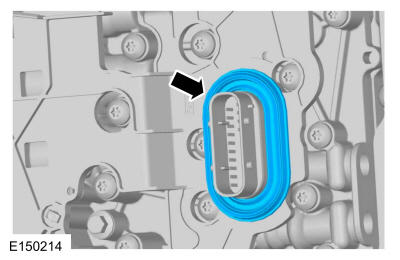

GFD123668Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: The main control should be handled with care or damage to the main control may occur.
    NOTE: Note the location of the short and long main control-to-transmission case bolts for reassembly.

    Remove the main control nut, the main control-to-transmission case bolts and the main control.

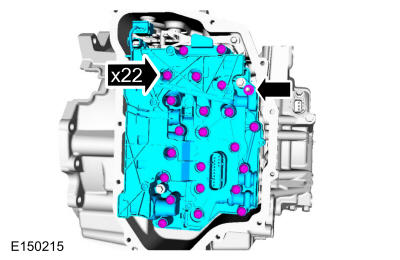

GFD123669Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove and discard the main control-to-transmission case separator plate.

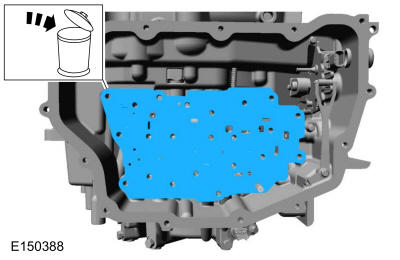

GFD123670Courtesy of FORD MOTOR COMPANY

  1. 7.

    Remove the solenoid body-to-valve body bolts and separate the solenoid body from the main control valve body.
GFD123671Courtesy of FORD MOTOR COMPANY

  1. 8.

    Remove the separator plate-to-solenoid body bolts and remove and discard the separator plate.

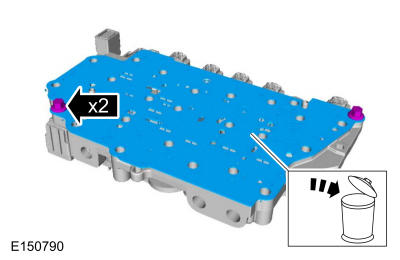

GFD123672Courtesy of FORD MOTOR COMPANY
