Main Control Cover: Removal

1. 1.

   Remove the air cleaner assembly. REFER to: Air Cleaner .

1. 2.

   Disconnect the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Loosen the clamp and disconnect the CAC outlet pipe.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Loosen the clamp, disconnect the EVAP canister purge valve tube and remove the CAC tube.

Courtesy of FORD MOTOR COMPANY

1. 5.

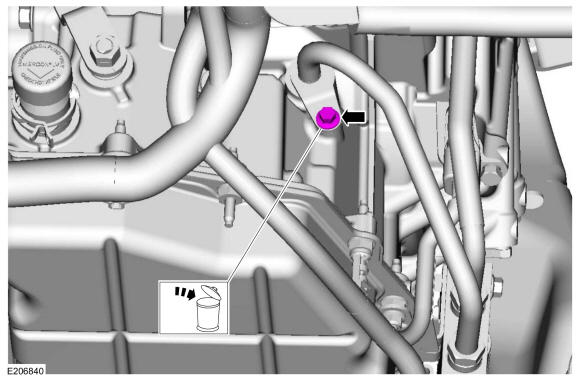

   Remove and discard the transmission mounted transmission fluid cooler inlet tube bolt.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Loosen the transmission mounted transmission fluid cooler inlet tube fitting and remove the transmission mounted transmission fluid cooler inlet tube.

Courtesy of FORD MOTOR COMPANY

1. 7.

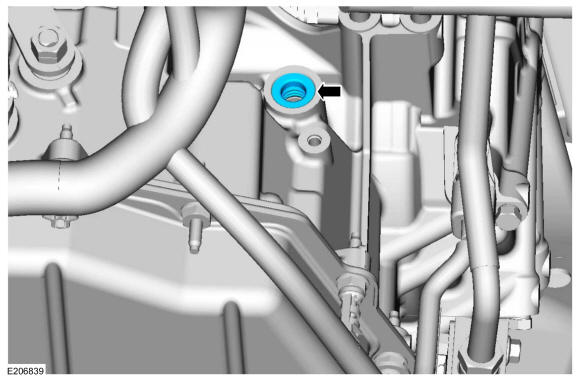

   Inspect the transmission case to be sure that the transmission mounted transmission fluid cooler inlet tube seal and backing ring were removed with the transmission mounted transmission fluid cooler inlet tube and is not stuck in the transmission case. If the transmission mounted transmission fluid cooler inlet tube seal or backing ring is stuck in the transmission case, remove the seal and backing ring.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Disconnect the electrical connectors and wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

1. 9.

   Remove the nuts, pull the transmission fluid cooler tube bracket and tubes away from the transmission and position it aside.

Courtesy of FORD MOTOR COMPANY

1. 10.

   With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

Refer to: Engine Undershield .

1. 11.

   Drain the transmission fluid. REFER to: Transmission Fluid Drain and Refill .

1. 12.


   NOTE: Note the location of the stud bolts for assembly.

   Remove the bolts, stud bolts and the main control cover.

Courtesy of FORD MOTOR COMPANY
