Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

  1. 1.

    NOTE: The transmission case bushing should only be removed if the bushing is damaged.
    NOTE: Press the bushing out of the transmission case from the outside to the inside so the transmission case rests on a flat surface.

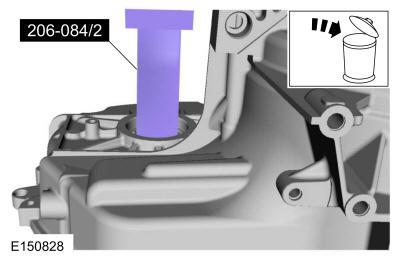

    If necessary, use the special tools to remove and discard the LH transmission case bushing from the transmission case.

    Use Special Service Tool: 206-084 Installer, Wheel Speed Sensor Ring.

    Use the General Equipment: Hydraulic Press

GFD127119Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the differential ring gear snap ring.
GFD127120Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the differential ring gear.
GFD127121Courtesy of FORD MOTOR COMPANY
