Power Transfer Unit Vent: Installation

WARNING: This page is about a different variant/trim than selected.

1.

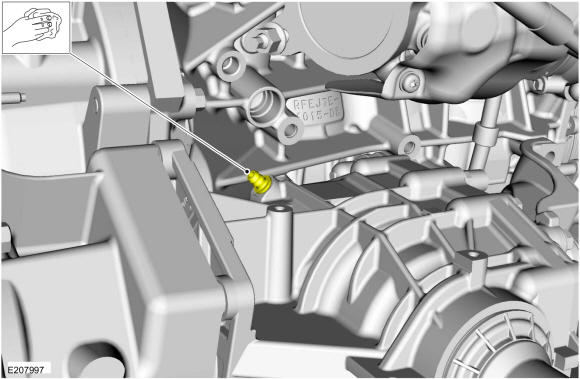

Clean the PTU vent fitting.

GFD124568

Courtesy of FORD MOTOR COMPANY

2.

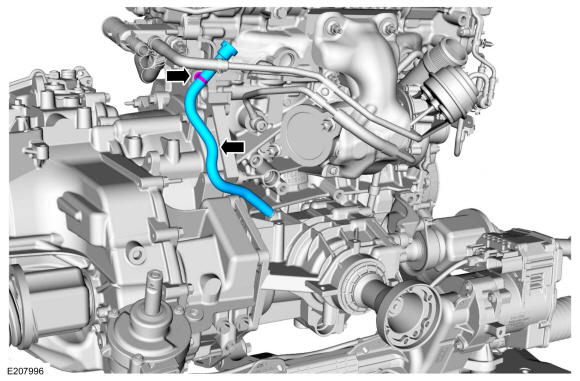

Connect the PTU vent hose.

GFD124567

Courtesy of FORD MOTOR COMPANY

3.

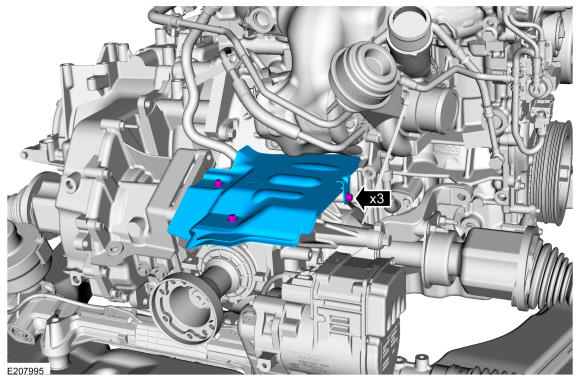

Install the PTU heat shield and the PTU heat shield bolts.

GFD124566

Courtesy of FORD MOTOR COMPANY

4.

Install the RH catalytic converter. REFER to: Catalytic Converter .
