Generic Function Module (GFM): Removal

WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the glove compartment. REFER to: Glove Compartment .

2.

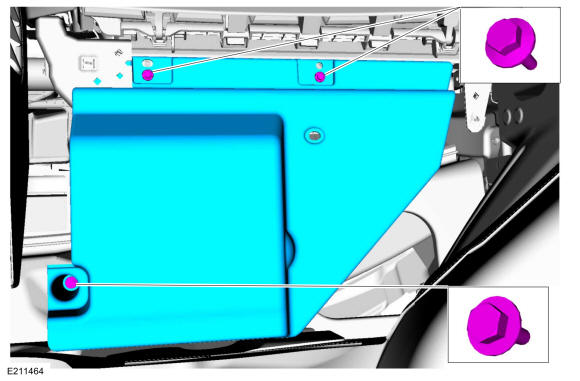

Remove the screws and the RH instrument panel insulator.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

3.

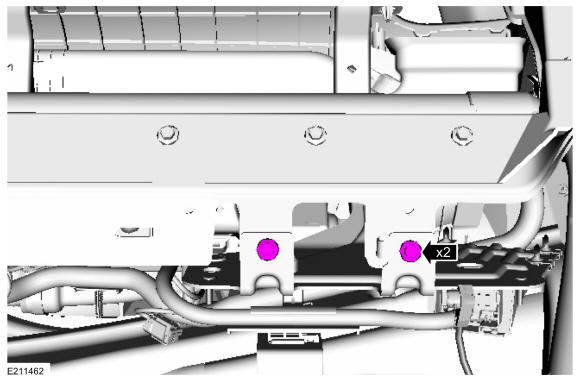

Remove the lower GFM bracket screws.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

4.

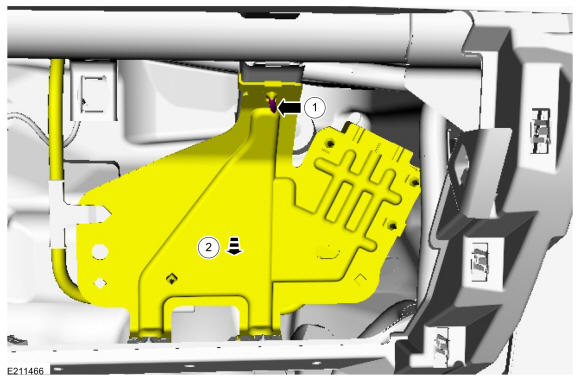

Position the upper GFM bracket.
1. 1.

  Remove the upper GFM bracket screw.
1. 2.

  Lower the GFM and bracket.

Courtesy of FORD MOTOR COMPANY

5.

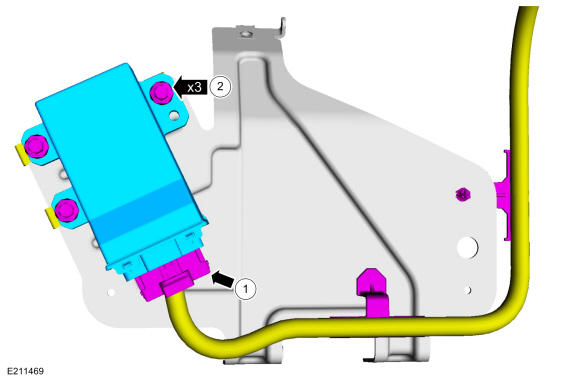

Remove the GFM.
1. 1.

  Disconnect the GFM electrical connetor.
1. 2.

  Remove the GFM bolts.

Courtesy of FORD MOTOR COMPANY
